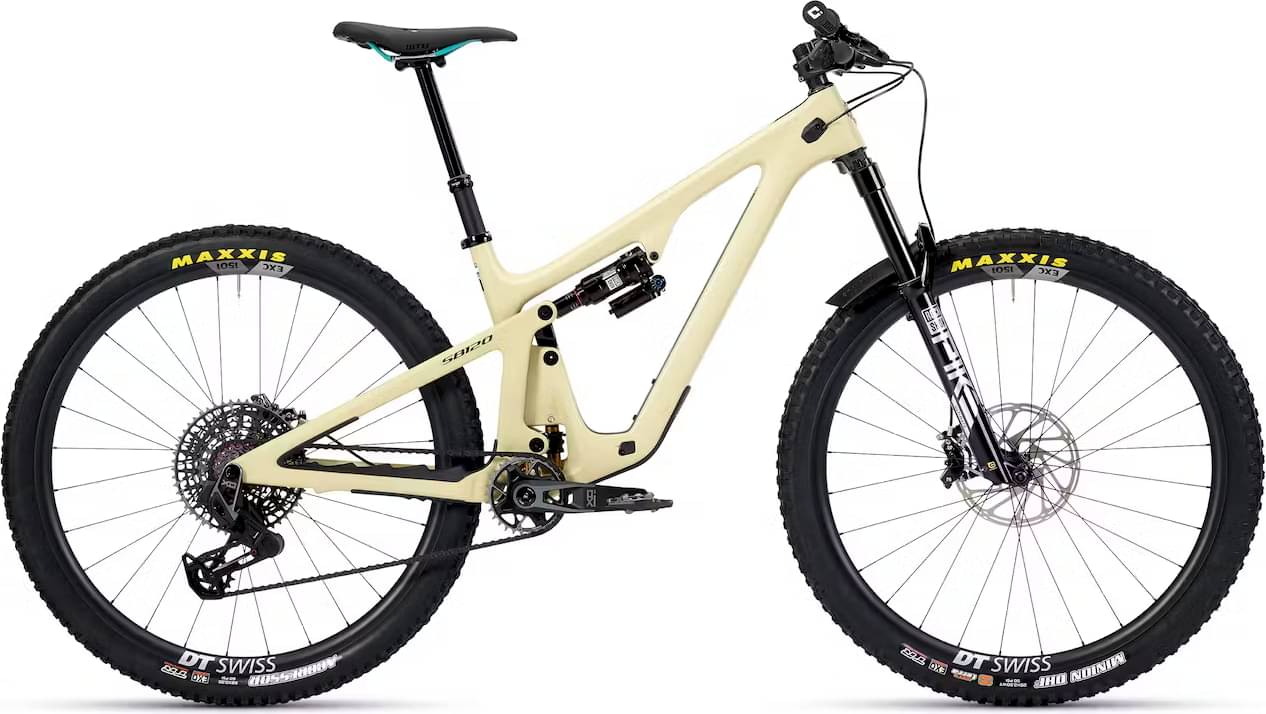

Yeti SB120 LR C2 2024
2024 Mountain
Estimate price |
6,500$
Weight | 14.03 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Pike
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
ROCK SHOX PIKE 140MM
Rear Shock
ROCK SHOX SUPER DELUXE ULTIMATE
Drivetrain
Rear Derailleur
SRAM GX EAGLE
Shift Levers
SRAM GX EAGLE
Cassette
SRAM GX EAGLE 1275 10-52
Crank
SRAM GX EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE
Wheels
Rims
CRANK BROTHERS SYNTHESIS ENDURO 30MM
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM CODE R
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 335 mm | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 692 mm | 725 mm | 757 mm | 781 mm | 810 mm | 834 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 602 mm | 608 mm | 613 mm | 623 mm | 634 mm | 654 mm |
| Reach | 388 mm | 418 mm | 448 mm | 468 mm | 493 mm | 508 mm |
| Top Tube Length | 537 mm | 569 mm | 600 mm | 622 mm | 650 | 669 mm |
| Seat Tube Angle | 76.1 ° | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 345 mm | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 92 mm | 98 mm | 104 mm | 115 mm | 126 mm | 147 mm |
| Chainstay Length | 429 mm | 431 mm | 433 mm | 435 mm | 437 mm | 439 mm |
| Wheelbase | 1121 mm | 1156 mm | 1190 mm | 1216 mm | 1248 mm | 1273 mm |
| Bottom Bracket Drop | 39 mm | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 704 mm | 708 mm | 713 mm | 717 mm | 719 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
SB120 LR C2 completes the Yeti Sb120 model. Yeti released 15 bikes variations of this model so far. Take a sneak peek at all Yeti Sb120 bikes models from 2024, by clicking here.
Model range prices
Yeti SB120 C2 2024 is the most affordable bike of this model and has a price of 5800$. On the other hand, Yeti SB120 LR T3 X0 Transmission 2024, is the most expensive and costs 8600$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Yeti SB120 LR C2 price was 6500$. If we compare this with the average Trail bike cost we notice that the price is 135.34% more expensive.
Trail bikes average weight
The average weight for Trail bikes is 12.88 kg (28.4 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14.03 kg (30.93 lbs), the SB120 LR C2 model is a bit heavier than average. In conclusion, the average Trail bike weighs 8.93% less than SB120 LR C2.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB120 LR C2 components
Fork
The RockShox Pike is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the ROCK SHOX SUPER DELUXE ULTIMATE rear shock model, which has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the SB120 LR C2 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The SB120 LR C2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
SB120 LR C2 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Yeti SB120 LR C2 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
