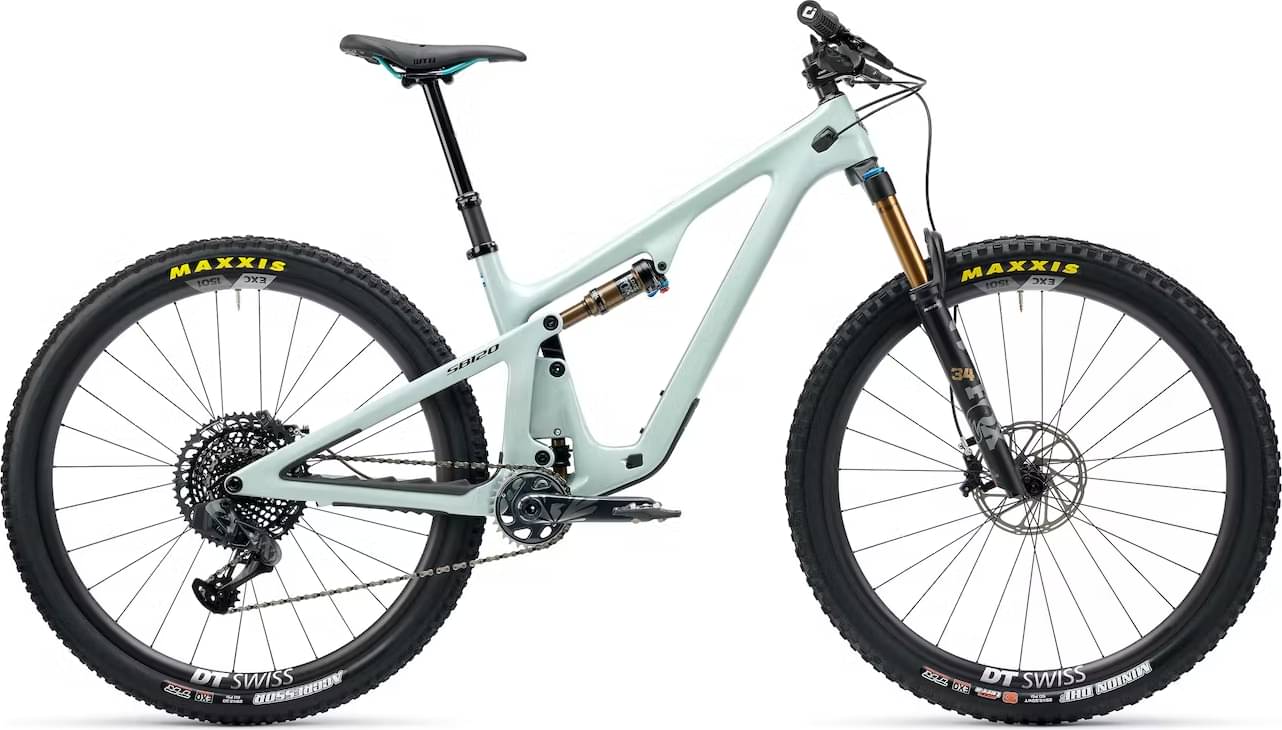

Yeti SB120 T3 2023
2023 Mountain
Estimate price |
8,200$
Weight | 13.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 34 GRIP2/130MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS
Shift Levers
SRAM EAGLE AXS
Cassette
SRAM X01 EAGLE 1295 10-52
Crank
SRAM X1 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / XS-SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.35 mm | 1.32 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 689 mm | 722 mm | 754 mm | 778 mm | 808 mm | 831 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 600 mm | 606 mm | 611 mm | 621 mm | 631 mm | 651 mm |
| Reach | 391 mm | 421 mm | 451 mm | 471 mm | 496 mm | 511 mm |
| Top Tube Length | 536 mm | 567 mm | 599 mm | 621 mm | 648 mm | 668 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 345 mm | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 92 mm | 98 mm | 104 mm | 115 mm | 126 mm | 147 mm |
| Chainstay Length | 429 mm | 431 mm | 433 mm | 435 mm | 437 mm | 439 mm |
| Wheelbase | 1118 mm | 1153 mm | 1187 mm | 1213 mm | 1245 mm | 1270 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 695 mm | 705 mm | 710 mm | 714 mm | 716 mm | 721 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
SB120 T3 belongs to the Yeti Sb120 model. Yeti launched 15 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Yeti SB120 C1 2023 is the cheapest bike model and costs 6300$. Yeti SB120 T4 XX Transmission 2023 is the most expensive one and costs 12100$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 8200$. Doing a quick comparison, we notice that SB120 T3 price is 196.89% higher than the average cost of a Trail bike.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.34 kg (29.41 lbs), the SB120 T3 model is slightly heavier than average. In short, the average Trail bike weight is 3.57% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SB120 T3 components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX FACTORY FLOAT DPS model, with a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the SB120 T3 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Yeti SB120 T3 bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
Dropper post
Yeti SB120 T3 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
