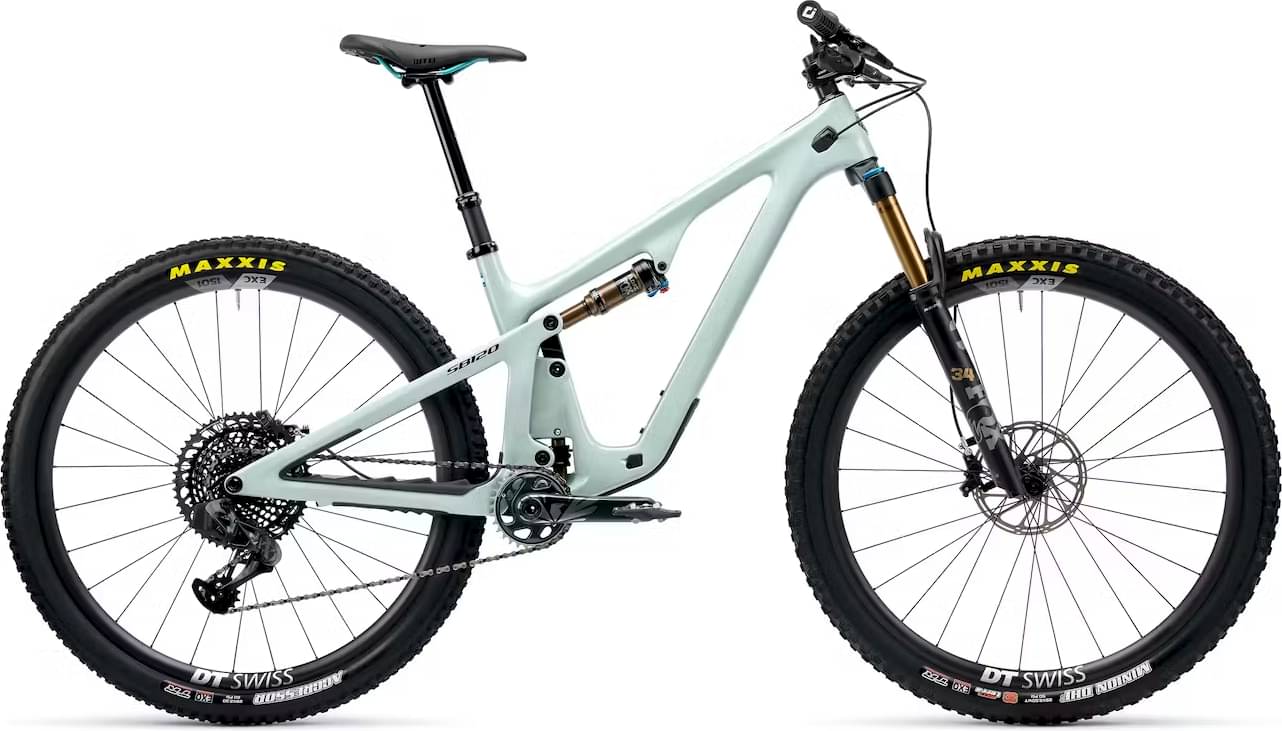

Yeti SB120 T3 X0 Transmission 2023
2023 Mountain
Estimate price |
9,300$
Weight | 13.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 34 GRIP2/130MM
Rear Shock
FOX FACTORY DPS
Drivetrain
Rear Derailleur
SRAM X0 EAGLE AXS TRANSMISSION
Shift Levers
SRAM AXS POD CONTROLLER
Cassette
SRAM X0 EAGLE TRANSMISSION 10-52
Crank
SRAM X0 EAGLE TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM X0 EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / XS-SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.35 mm | 1.32 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 689 mm | 722 mm | 754 mm | 778 mm | 808 mm | 831 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 600 mm | 606 mm | 611 mm | 621 mm | 631 mm | 651 mm |
| Reach | 391 mm | 421 mm | 451 mm | 471 mm | 496 mm | 511 mm |
| Top Tube Length | 536 mm | 567 mm | 599 mm | 621 mm | 648 mm | 668 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 345 mm | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 92 mm | 98 mm | 104 mm | 115 mm | 126 mm | 147 mm |
| Chainstay Length | 429 mm | 431 mm | 433 mm | 435 mm | 437 mm | 439 mm |
| Wheelbase | 1118 mm | 1153 mm | 1187 mm | 1213 mm | 1245 mm | 1270 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 695 mm | 705 mm | 710 mm | 714 mm | 716 mm | 721 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
SB120 T3 X0 Transmission completes the Yeti Sb120 model. There are 15 bikes that carry this model name. You can easily view all of the Yeti Sb120 bikes models from 2023, here.
Model range prices
Yeti SB120 C1 2023 is the cheapest bike model and costs 6300$. Yeti SB120 T4 XX Transmission 2023 is the most expensive one and costs 12100$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Yeti released this model in 2023, its price was 9300$. In conclusion, this bike price is 236.71% more expensive than the price of the average Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.88 kg (28.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13.16 kg (29.01 lbs), Yeti bike is slightly heavier than average. To sum up, it’s 2.17% heavier than the average weight of Trail bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Yeti SB120 T3 X0 Transmission bike has the FOX FACTORY DPS model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on SB120 T3 X0 Transmission are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SB120 T3 X0 Transmission comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the SB120 T3 X0 Transmission. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
