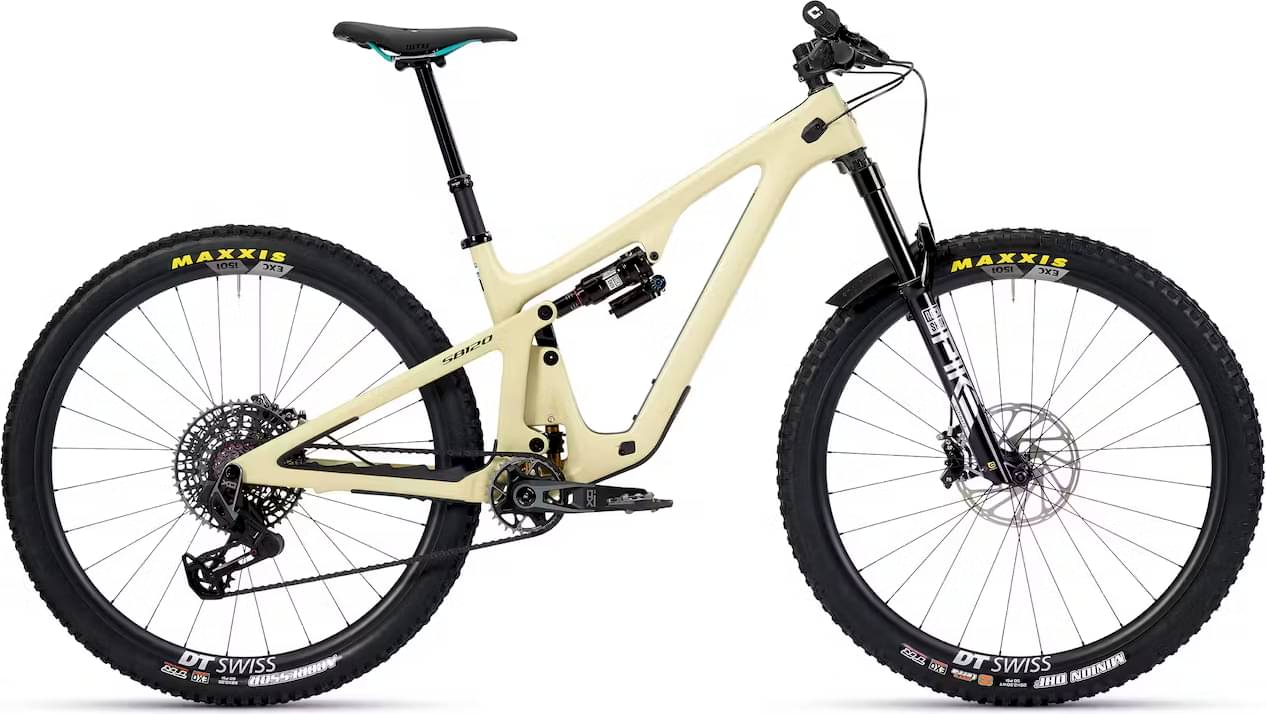

Yeti SB120 T3 X0 Transmission 2024
2024 Mountain
Estimate price |
8,600$
Weight | 13.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 34 FIT4/130MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SRAM X0 EAGLE AXS TRANSMISSION
Shift Levers
SRAM AXS POD CONTROLLER
Cassette
SRAM X0 EAGLE TRANSMISSION 10-52
Crank
SRAM X0 EAGLE TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM X0 EAGLE TRANSMISSION FLATTOP
Wheels
Rims
RACEFACE ARC OFFSET 30MM/DT SWISS 350 Upgradable
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.35 mm | 1.32 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 689 mm | 722 mm | 754 mm | 778 mm | 808 mm | 831 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 600 mm | 606 mm | 611 mm | 621 mm | 631 mm | 651 mm |
| Reach | 391 mm | 421 mm | 451 mm | 471 mm | 496 mm | 511 mm |
| Top Tube Length | 536 mm | 567 mm | 599 mm | 621 mm | 648 mm | 668 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 345 mm | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 92 mm | 98 mm | 104 mm | 115 mm | 126 mm | 147 mm |
| Chainstay Length | 429 mm | 431 mm | 433 mm | 435 mm | 437 mm | 439 mm |
| Wheelbase | 1118 mm | 1153 mm | 1187 mm | 1213 mm | 1245 mm | 1270 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 695 mm | 705 mm | 710 mm | 714 mm | 716 mm | 721 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
SB120 T3 X0 Transmission is a Yeti Sb120 model. There are 15 bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Yeti SB120 C2 2024 is the cheapest bike model and costs 5800$. Yeti SB120 LR T3 X0 Transmission 2024 is the most expensive one and costs 8600$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Yeti SB120 T3 X0 Transmission price was 8600$. If we compare this with the average Trail bike cost we notice that the price is 211.37% more expensive.
Average weight for Trail bikes
The average weight for Trail bikes is 12.88 kg (28.4 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Yeti SB120 T3 X0 Transmission it’s weighing 13.33 kg (29.39 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.49% heavier than the average weight of Trail bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The SB120 T3 X0 Transmission has a rear shock with a travel of 120mm. The model FOX FACTORY FLOAT DPS is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on SB120 T3 X0 Transmission are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yeti SB120 T3 X0 Transmission is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Yeti SB120 T3 X0 Transmission comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
