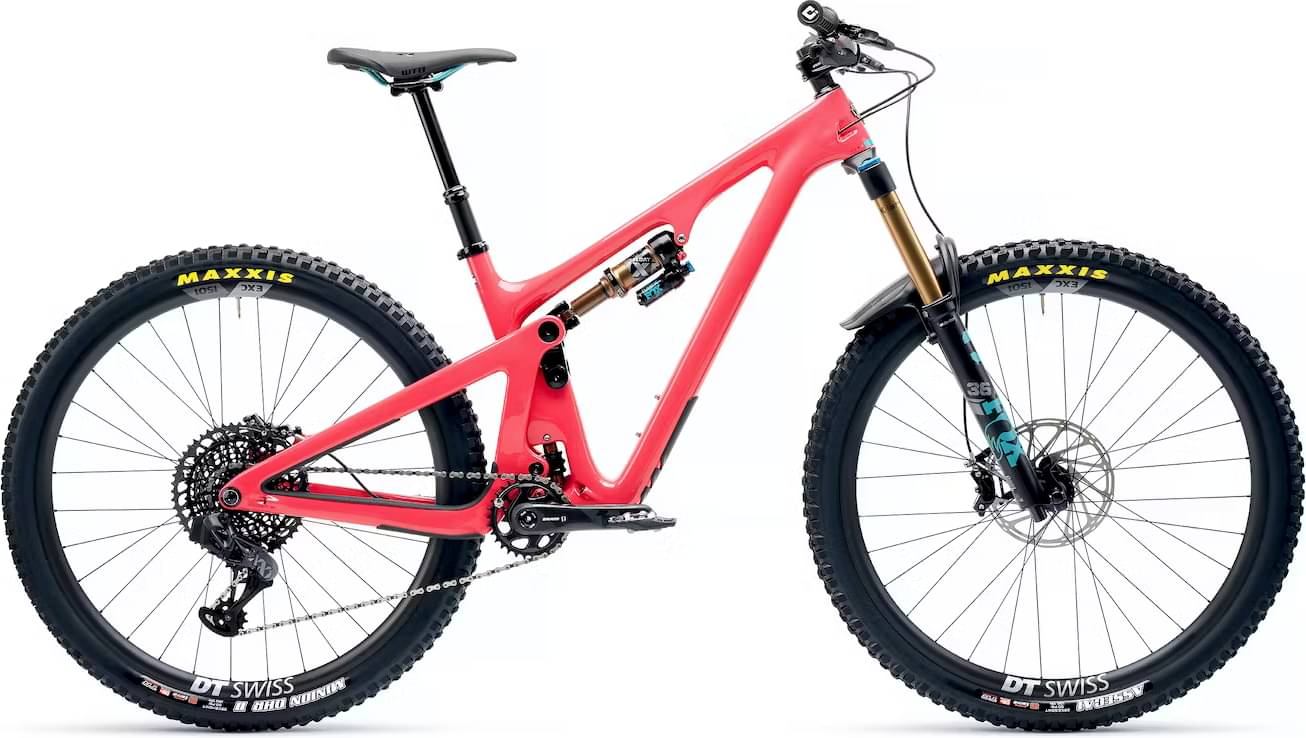

Yeti SB130 TLR T1 2023
2023 Mountain
Estimate price |
8,200$
Weight | 13.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 137mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36 GRIP 2/160MM
Rear Shock
FOX FACTORY FLOAT X
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT
Cassette
SHIMANO XT 10-51
Crank
SHIMANO XT 30T 170MM
Bottom Bracket
SHIMANO XT BB92
Chain
SHIMANO XT
Wheels
Rims
DT SWISS CUSTOM EX1700 30MM *Orders may ship with DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS ASSEGAI 2.5 EXO+, Rear: MAXXIS ASSEGAI 2.5 EXO+
Brakes
Brakes
SHIMANO XT 4 PISTON
Cockpit
Stem
BURGTEC ENDURO MK3 35X50
Handlebar
YETI CARBON 35X800MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG/XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 337.6 mm | 337.7 mm | 337.7 mm | 337.7 mm |
| Front Center | 740.9 mm | 772.6 mm | 797.2 mm | 826.7 mm |
| Stack | 608 mm | 611.8 mm | 621.8 mm | 631.8 mm |
| Reach | 427.2 mm | 457.2 mm | 477.2 mm | 502.2 mm |
| Top Tube Length | 567.7 mm | 598.9 mm | 622.2 mm | 650.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 99.2 mm | 110.2 mm | 121.2 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1170 mm | 1202 mm | 1227 mm | 1256 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 720 mm | 722 mm | 725 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB130 TLR T1 is a Yeti Sb130 model. 45 bikes variations carry this model name so far. Take a sneak peek at all Yeti Sb130 bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Yeti SB130 C1 2023 has a starting price of 6200$. Yeti SB130 T3 2023 on the other hand is the most expensive at 10200$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 8200$. If we compare this with the average Trail bike cost we notice that the price is 196.89% more expensive.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, SB130 TLR T1 has a weight of 13.7 kg (30.2 lbs). In short, the average Trail bike weight is 5.55% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
SB130 TLR T1 components
Fork
The SB130 TLR T1 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX FACTORY FLOAT X, with a travel distance of 137mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on SB130 TLR T1 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB130 TLR T1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Yeti SB130 TLR T1 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
