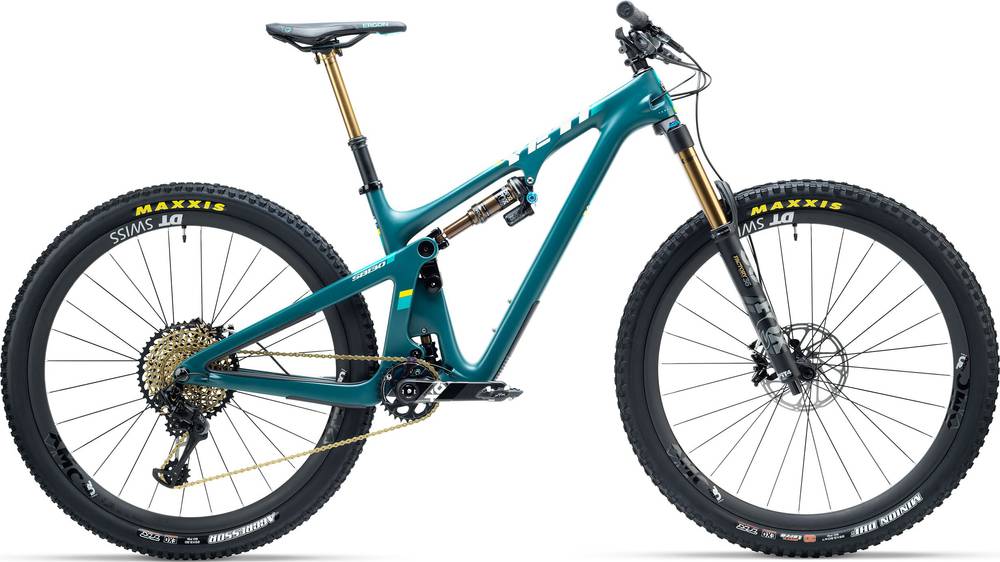

Yeti SB130 — T/Series / Frameset 2019
2019 Mountain
Estimate price |
3,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 130mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, trail inspired geometry, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max bearing pivots, integrated derailleur hanger, and axle.
Rear Shock
FOX FACTORY DPX2, 210mm x 52.5mm
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 337.6 mm | 337.7 mm | 337.7 mm | 337.7 mm |
| Front Center | 740.9 mm | 772.6 mm | 797.2 mm | 826.7 mm |
| Stack | 608 mm | 611.8 mm | 621.8 mm | 631.8 mm |
| Reach | 427.2 mm | 457.2 mm | 477.2 mm | 502.2 mm |
| Top Tube Length | 567.7 mm | 598.9 mm | 622.2 mm | 650.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 99.2 mm | 110.2 mm | 121.2 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1170 mm | 1202 mm | 1227 mm | 1256 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 720 mm | 722 mm | 725 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB130 — T/Series / Frameset is a Yeti Sb130 model. Yeti released 45 frames variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail frames
According to our calculations, the average cost of a Trail frame that is reliable is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Yeti released this model in 2019, its price was 3500$. In conclusion, this frame price is 101.61% more expensive than the price of the average Trail frame.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SB130 — T/Series / Frameset components
Rear Shock
The SB130 — T/Series / Frameset has a rear shock with a travel of 130mm. The model FOX FACTORY DPX2 is the one installed in this frame. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
