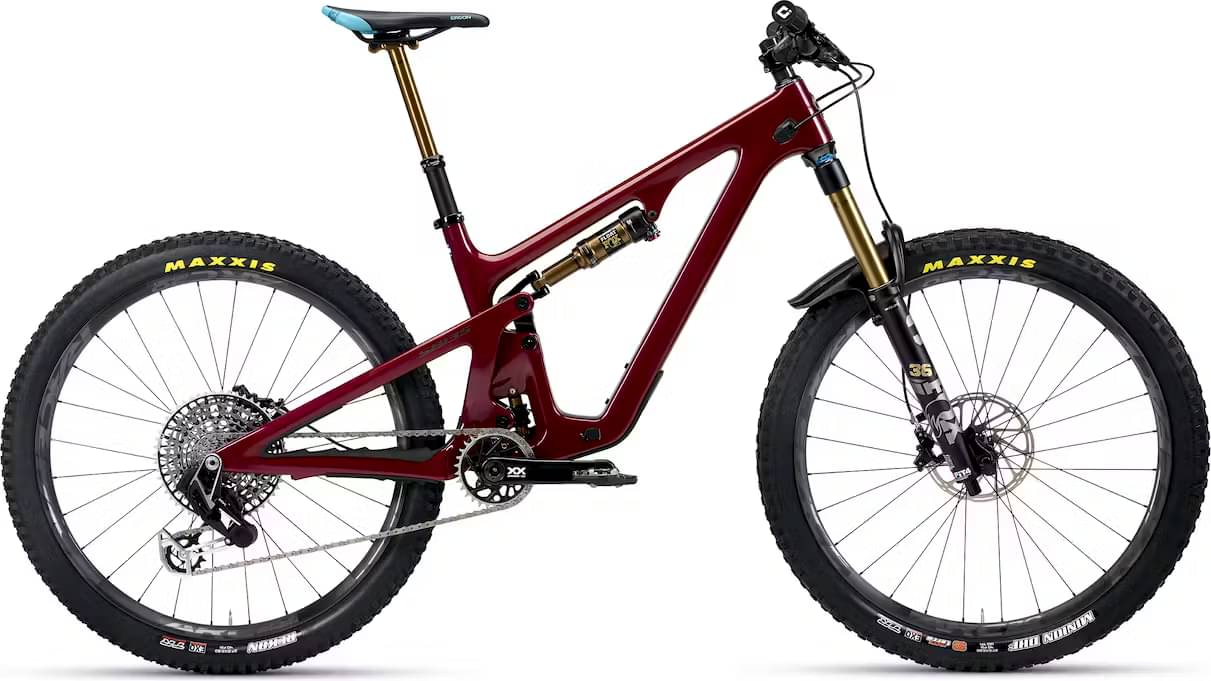

Yeti SB135 T4 2023
2023 Mountain
Estimate price |
10,300$
Weight | 13.22 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY FLOAT
Drivetrain
Rear Derailleur
SRAM XX EAGLE AXS TRANSMISSION
Shift Levers
SRAM AXS POD CONTROLLER
Cassette
SRAM XX EAGLE TRANSMISSION 10-52
Crank
SRAM XX EAGLE TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM XX EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.6 EXO, Rear: MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SRAM G2 ULTIMATE
Cockpit
Stem
BURGTEC ENDURO MK3 CNC 35X50MM
Handlebar
YETI CARBON 35X760MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 110 INTEGRATED
Seat
Saddle
ERGON SM ENDURO SADDLE
Seatpost
FOX TRANSFER FACTORY 31.6MM / XS-SM: 150MM, MD: 175MM, LG-XL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.3 mm | 1.27 mm | 1.22 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 699 mm | 733 mm | 766 mm | 790 mm | 820 mm |
| Stack | 579 mm | 588 mm | 593 mm | 602 mm | 612 mm |
| Reach | 396 mm | 426 mm | 456 mm | 475 mm | 500 mm |
| Top Tube Length | 530 mm | 562 mm | 594 mm | 616 mm | 643 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 76.9 ° |
| Seat Tube Length | 345 mm | 365 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 101 mm | 107 mm | 118 mm | 129 mm |
| Chainstay Length | 425 mm | 427 mm | 429 mm | 431 mm | 433 mm |
| Wheelbase | 1124 mm | 1160 mm | 1195 mm | 1221 mm | 1253 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 671 mm | 674 mm | 710 mm | 714 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SB135 T4 completes the Yeti Sb135 model. 14 bikes variations carry this model name so far. Take a sneak peek at all Yeti Sb135 bikes models from 2023, by clicking here.
Model range prices
Yeti SB135 C1 2023 is the most affordable bike of this model and has a price of 6400$. On the other hand, Yeti SB135 T4 2023, is the most expensive and costs 10300$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 10300$. If we compare this with the average Enduro bike cost we notice that the price is 186.19% higher.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14 kg (30.86 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.22 kg (29.15 lbs), the SB135 T4 model is a bit lighter than average. In short, the average Enduro bike weight is 5.9% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The SB135 T4 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the SB135 T4 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SB135 T4 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Yeti SB135 T4 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
