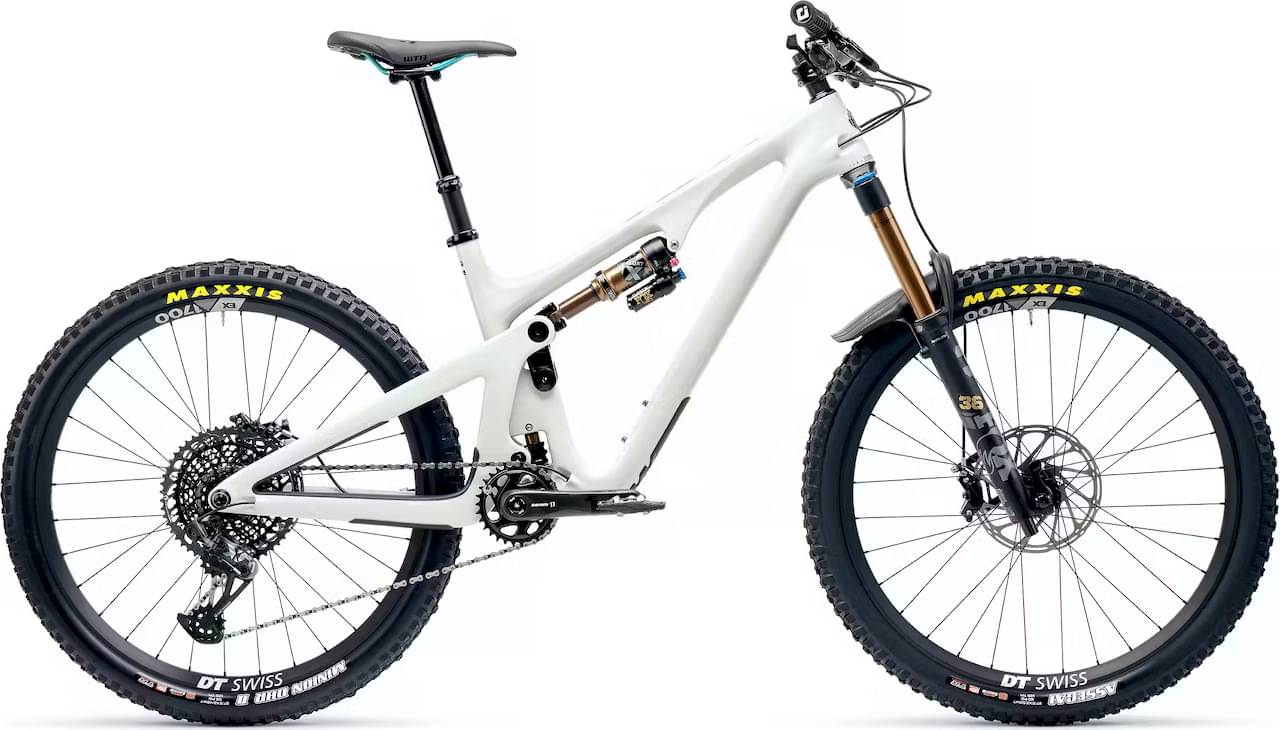

Yeti SB140 27.5 T4 2024
2024 Mountain
Estimate price |
8,600$
Weight | 12.43 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS
Shift Levers
SRAM EAGLE AXS
Cassette
SRAM XX1 EAGLE 1299 10-52
Crank
SRAM X01 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM XX1 EAGLE
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.6 EXO, Rear: MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SRAM G2 ULTIMATE
Cockpit
Stem
BURGTEC ENDURO MK3 CNC 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 110 INTEGRATED
Seat
Saddle
ERGON SM ENDURO SADDLE
Seatpost
FOX TRANSFER FACTRORY 31.6MM / XS-SM: 150MM, MD: 175MM, LG-XL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.28 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 336.6 mm | 336.6 mm | 336.7 mm | 336.8 mm | 336.9 mm |
| Front Center | 707.3 mm | 738.4 mm | 770.7 mm | 795.4 mm | 825 mm |
| Stack | 584.8 mm | 597.7 mm | 602.5 mm | 612.4 mm | 622.3 mm |
| Reach | 415.6 mm | 440.6 mm | 470.5 mm | 490.5 mm | 515.5 mm |
| Top Tube Length | 542.9 mm | 571.8 mm | 603.2 mm | 626.1 mm | 654.1 mm |
| Seat Tube Angle | 77.6 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.3 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1146 mm | 1177 mm | 1209 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 704 mm | 709 mm | 712 mm | 714 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SB140 27.5 T4 is part of the Yeti Sb140 model. 79 bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Yeti SB140 27.5 C1 2024 is the most affordable bike of this model and has a price of 5100$. On the other hand, Yeti SB140 LR T4 XX Transmission 2024, is the most expensive and costs 10200$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Yeti SB140 27.5 T4 price was 8600$. In conclusion, this bike price is 211.37% higher than the price of the average Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, SB140 27.5 T4 has a weight of 12.43 kg (27.4 lbs). To sum up, it’s 3.62% lighter than the average weight of Trail bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SB140 27.5 T4 components
Fork
The SB140 27.5 T4 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX FACTORY FLOAT DPS, with a travel distance of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the SB140 27.5 T4 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
