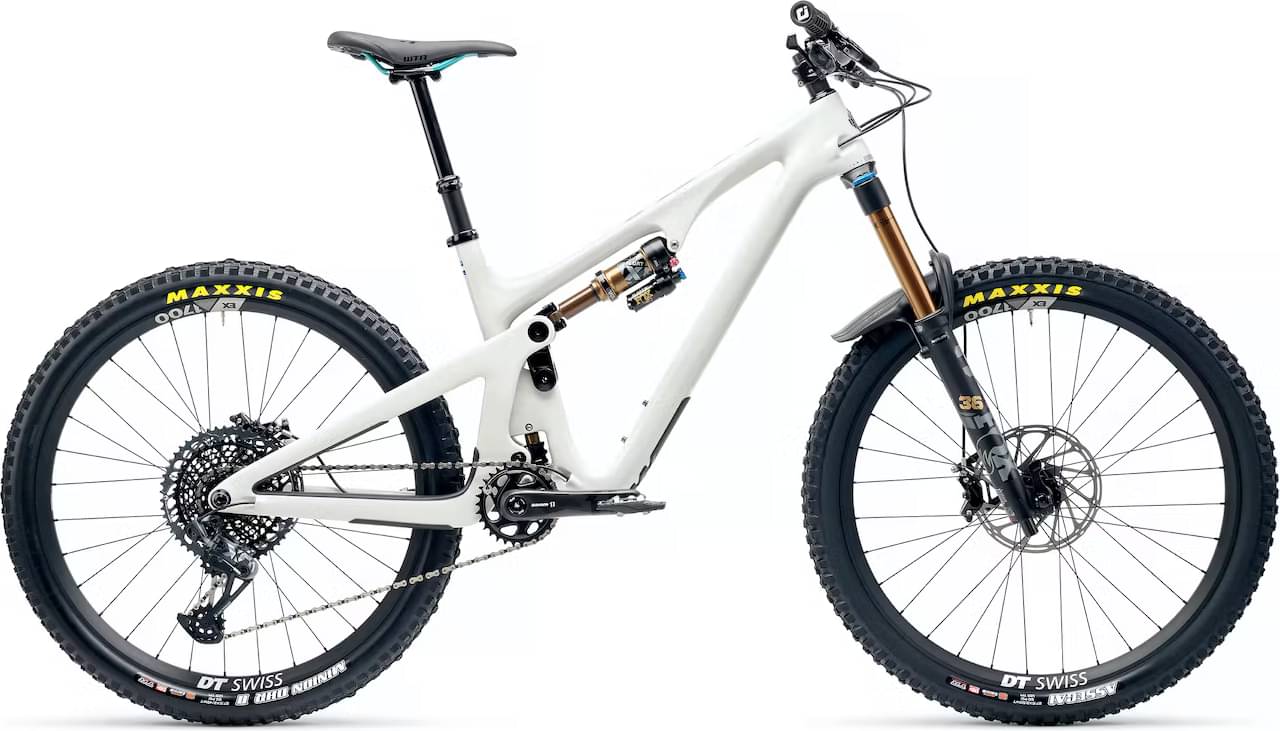

Yeti SB140 27.5 XT 2022
2022 Mountain
Estimate price |
6,500$
Weight | 12.76 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT
Cassette
SHIMANO XT 10-51
Crank
SHIMANO XT 30T 170MM
Bottom Bracket
SHIMANO XT BB92
Chain
SHIMANO XT
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.6 EXO, Rear: MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SHIMANO XT 4 PISTON
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / XS-SM: 150MM, MD: 175MM, LG-XL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.28 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 336.6 mm | 336.6 mm | 336.7 mm | 336.8 mm | 336.9 mm |
| Front Center | 707.3 mm | 738.4 mm | 770.7 mm | 795.4 mm | 825 mm |
| Stack | 584.8 mm | 597.7 mm | 602.5 mm | 612.4 mm | 622.3 mm |
| Reach | 415.6 mm | 440.6 mm | 470.5 mm | 490.5 mm | 515.5 mm |
| Top Tube Length | 542.9 mm | 571.8 mm | 603.2 mm | 626.1 mm | 654.1 mm |
| Seat Tube Angle | 77.6 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.3 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1146 mm | 1177 mm | 1209 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 704 mm | 709 mm | 712 mm | 714 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SB140 27.5 XT is part of the Yeti Sb140 model. 79 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Yeti SB140 27.5 C1 2022 is the cheapest bike model and costs 5100$. Yeti SB140 27.5 T3 2022 is the most expensive one and costs 10200$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6500$. In conclusion, this bike price is 135.34% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
SB140 27.5 XT weighs 12.76 kg (28.13 lbs) and is slightly lighter than the average. In conclusion, the average Trail bike weighs 1.72% more than SB140 27.5 XT.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Yeti SB140 27.5 XT 2022 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX FACTORY FLOAT DPS model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the SB140 27.5 XT bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SB140 27.5 XT comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Yeti SB140 27.5 XT comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
