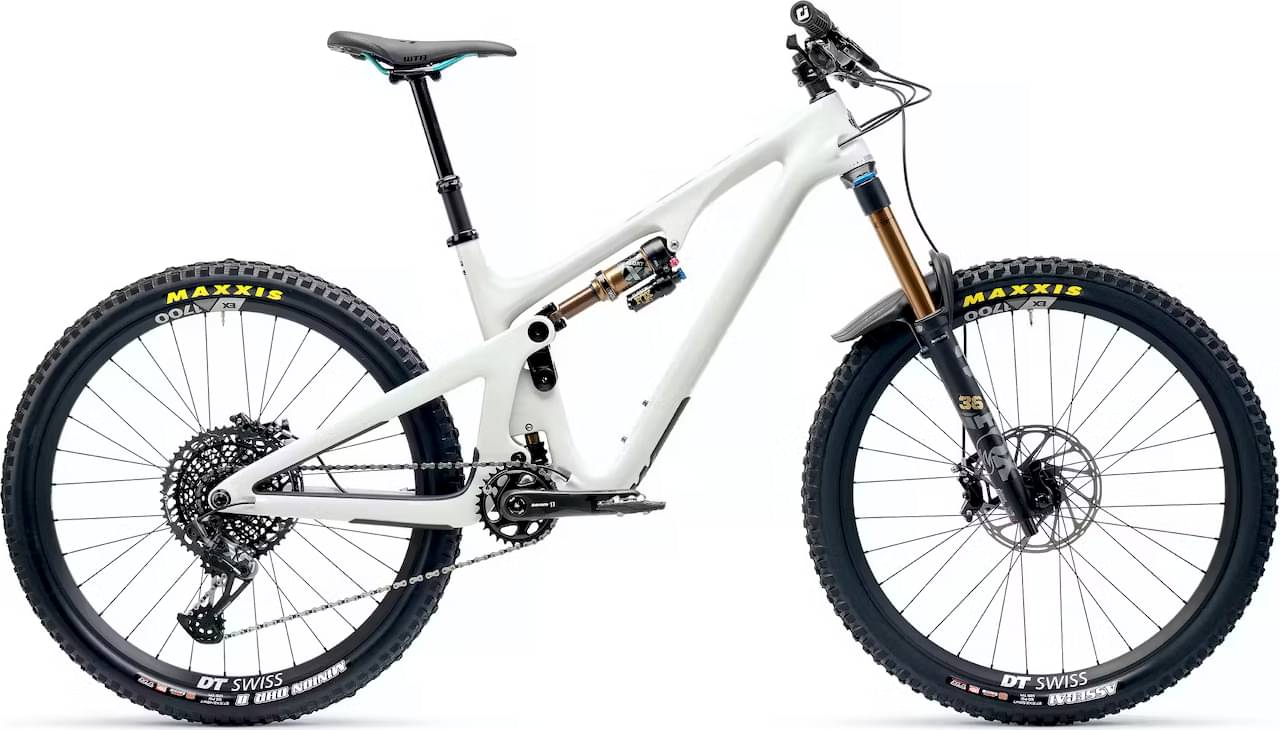

Yeti SB140 27.5 XT 2024
2024 Mountain
Estimate price |
6,500$
Weight | 12.76 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT
Cassette
SHIMANO XT 10-51
Crank
SHIMANO XT 30T 170MM
Bottom Bracket
SHIMANO XT BB92
Chain
SHIMANO XT
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.6 EXO, Rear: MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SHIMANO XT 4 PISTON
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / XS-SM: 150MM, MD: 175MM, LG-XL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.28 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 336.6 mm | 336.6 mm | 336.7 mm | 336.8 mm | 336.9 mm |
| Front Center | 707.3 mm | 738.4 mm | 770.7 mm | 795.4 mm | 825 mm |
| Stack | 584.8 mm | 597.7 mm | 602.5 mm | 612.4 mm | 622.3 mm |
| Reach | 415.6 mm | 440.6 mm | 470.5 mm | 490.5 mm | 515.5 mm |
| Top Tube Length | 542.9 mm | 571.8 mm | 603.2 mm | 626.1 mm | 654.1 mm |
| Seat Tube Angle | 77.6 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.3 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1146 mm | 1177 mm | 1209 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 704 mm | 709 mm | 712 mm | 714 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SB140 27.5 XT is part of the Yeti Sb140 model. Yeti released 79 bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Yeti SB140 27.5 C1 2024 is the most economical model, with a starting price of 5100$. Yeti SB140 LR T4 XX Transmission 2024 on the other hand costs 10200$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 6500$. Comparing the average cost of a Trail bike to this one, you will see that SB140 27.5 XT price is 135.34% more expensive.
Trail bikes average weight
The average weight for Trail bikes is 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
SB140 27.5 XT weighs 12.76 kg (28.13 lbs) and is slightly lighter than the average. In conclusion, the average Trail bike weighs 0.94% more than SB140 27.5 XT.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SB140 27.5 XT components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX FACTORY FLOAT DPS model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Yeti SB140 27.5 XT 2024, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB140 27.5 XT has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
SB140 27.5 XT comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Yeti SB140 27.5 XT includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
