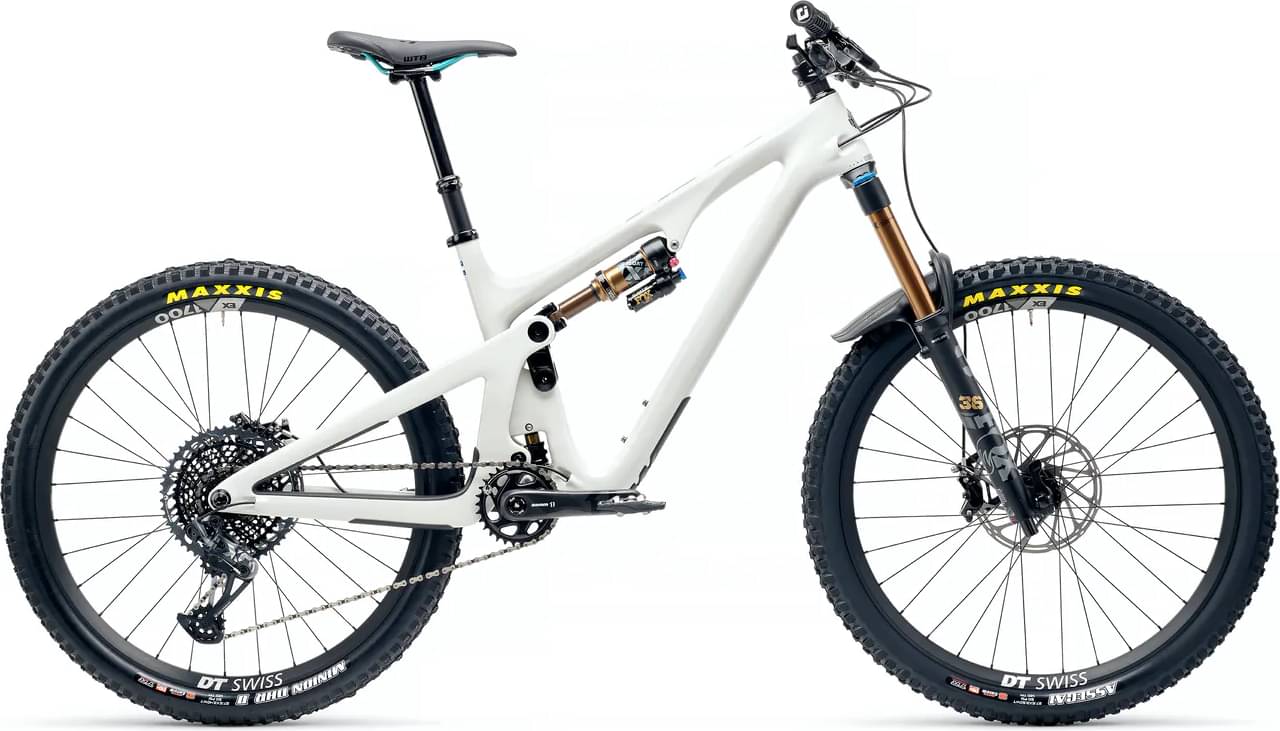

Yeti SB140 C2 2022
2022 Mountain
Estimate price |
6,500$
Weight | 13.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX PERFORMANCE 36/150MM Upgradable
Rear Shock
FOX PERFORMANCE FLOAT DPS Upgradable
Drivetrain
Rear Derailleur
SRAM GX EAGLE
Shift Levers
SRAM GX EAGLE
Cassette
SRAM GX EAGLE 1275 10-52
Crank
SRAM GX EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS M1900 30MM
Tires
MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SRAM G2 R
Disk Rotors
SRAM CENTERLINE 180/SRAM CENTERLINE 180
Cockpit
Stem
RACE FACE RIDE 35X50MM
Handlebar
RACE FACE AEFFECT R 35X760MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG/XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.28 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 336.6 mm | 336.6 mm | 336.7 mm | 336.8 mm | 336.9 mm |
| Front Center | 707.3 mm | 738.4 mm | 770.7 mm | 795.4 mm | 825 mm |
| Stack | 584.8 mm | 597.7 mm | 602.5 mm | 612.4 mm | 622.3 mm |
| Reach | 415.6 mm | 440.6 mm | 470.5 mm | 490.5 mm | 515.5 mm |
| Top Tube Length | 542.9 mm | 571.8 mm | 603.2 mm | 626.1 mm | 654.1 mm |
| Seat Tube Angle | 77.6 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.3 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1146 mm | 1177 mm | 1209 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 704 mm | 709 mm | 712 mm | 714 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SB140 C2 is a Yeti Sb140 model. Yeti launched 79 bikes of this model so far. You can easily view all of the Yeti Sb140 bikes models from 2022, here.
Model range prices
Yeti SB140 27.5 C1 2022 is the cheapest bike model and costs 5100$. Yeti SB140 27.5 T3 2022 is the most expensive one and costs 10200$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 6500$. If we compare this with the average Trail bike cost we notice that the price is 135.34% higher.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Yeti SB140 C2 it’s weighing 13.02 kg (28.7 lbs). At this weight, is slightly heavier than average. To sum up, it’s 0.31% heavier than the average weight of Trail bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is FOX PERFORMANCE FLOAT DPS Upgradable, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on SB140 C2 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yeti SB140 C2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the SB140 C2. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
