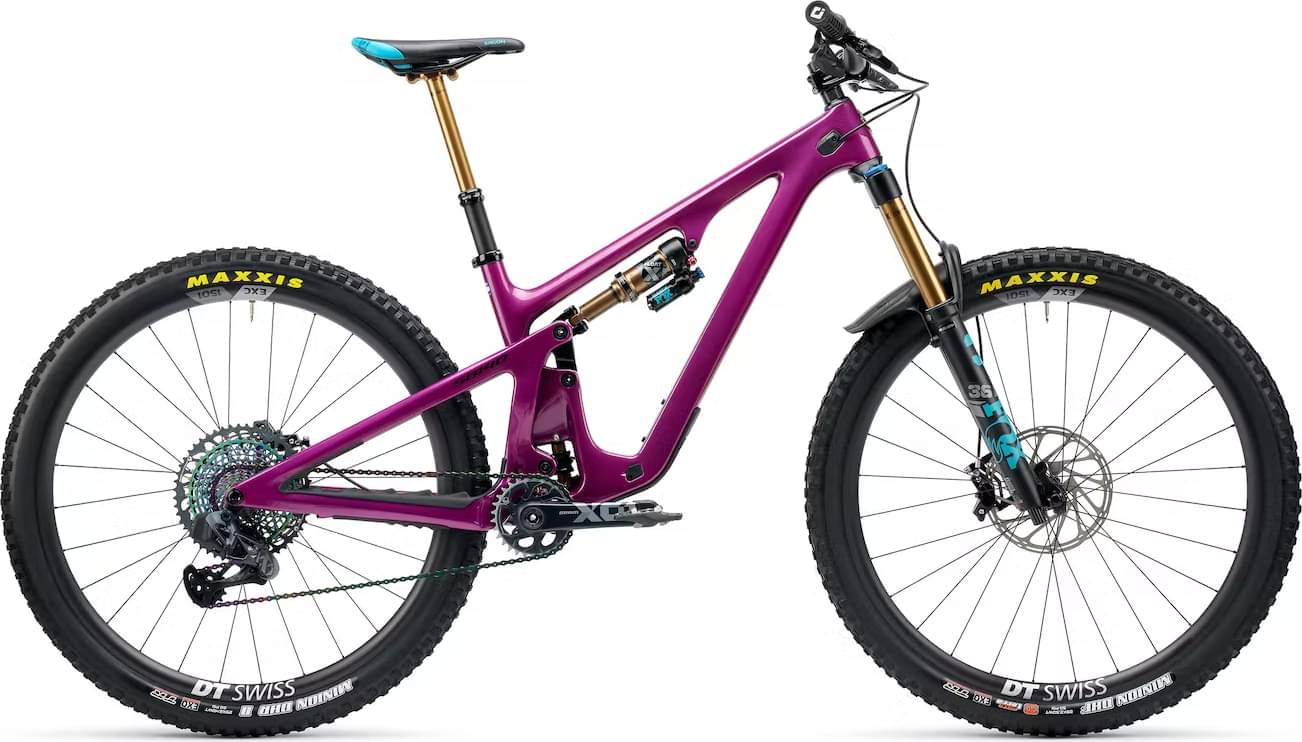

Yeti SB140 LR C1 2023
2023 Mountain
Estimate price |
6,600$
Weight | 14.58 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset SLX, XT -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX PERFORMANCE 36/160MM Upgradable
Rear Shock
FOX PERFORMANCE FLOAT X Upgradable
Drivetrain
Rear Derailleur
SHIMANO SLX
Shift Levers
SHIMANO XT
Cassette
SHIMANO SLX 10-51
Crank
SHIMANO SLX 30T 170MM
Bottom Bracket
SHIMANO XT BB 73
Chain
SHIMANO SLX
Wheels
Rims
CRANK BROTHERS SYNTHESIS ENDURO 30MM
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SHIMANO SLX 4 PISTON
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.35 mm | 1.3 mm | 1.26 mm | 1.26 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 752 mm | 783 mm | 806 mm | 835 mm | 860 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 616 mm | 619 mm | 624 mm | 634 mm | 654 mm |
| Reach | 429 mm | 459 mm | 479 mm | 504 mm | 519 mm |
| Top Tube Length | 572 mm | 602 mm | 623 mm | 651 mm | 670 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1187 mm | 1220 mm | 1245 mm | 1276 mm | 1303 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 725 mm | 732 mm | 736 mm | 738 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
SB140 LR C1 is a Yeti Sb140 model. There are 79 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Yeti SB140 27.5 C1 2023 is the most economical model, with a starting price of 5100$. Yeti SB140 LR T4 2023 on the other hand costs 10500$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Yeti released this model in 2023, its price was 6600$. In conclusion, this bike price is 138.96% more expensive than the price of the average Trail bike.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.88 kg (28.4 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.58 kg (32.14 lbs), Yeti bike is considerably heavier than average. In conclusion, the average Trail bike weighs 13.2% less than SB140 LR C1.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX PERFORMANCE FLOAT X Upgradable rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on SB140 LR C1 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB140 LR C1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the SB140 LR C1. Therefore, climbing or descending will be a breeze.
