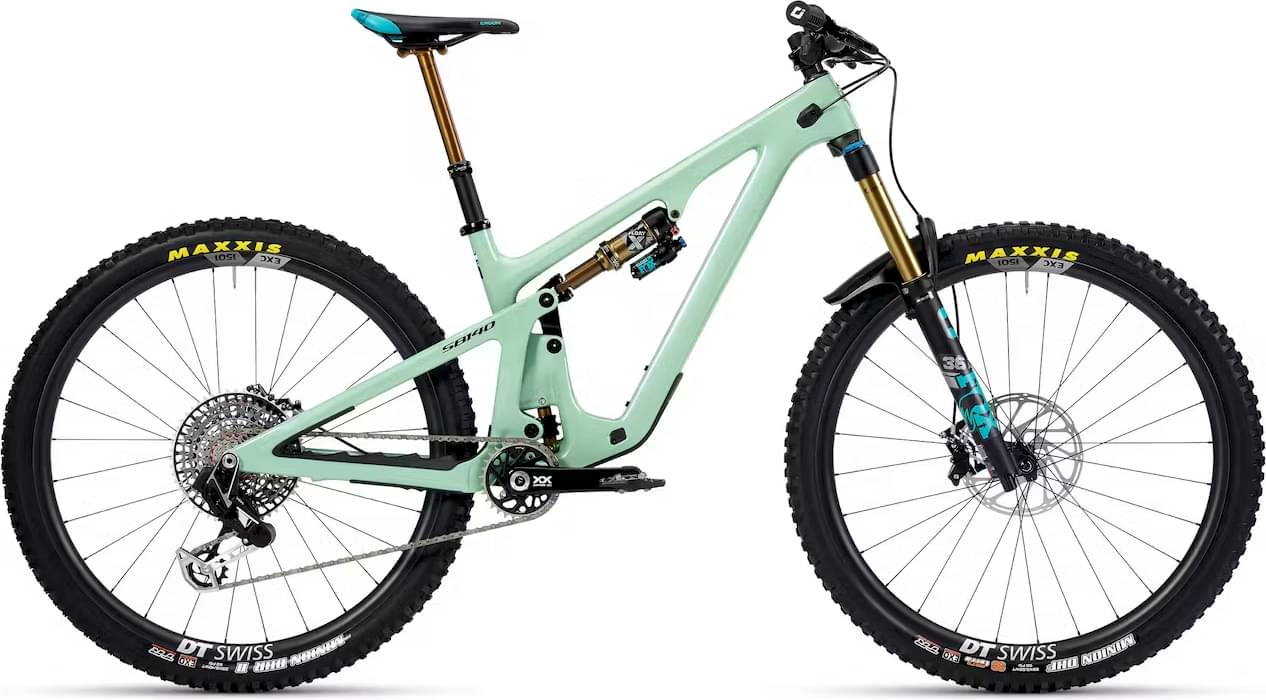

Yeti SB140 LR C2 2024
2024 Mountain
Estimate price |
6,200$
Weight | 14.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX PERFORMANCE 36/160MM Upgradable
Rear Shock
FOX PERFORMANCE FLOAT X Upgradable
Drivetrain
Rear Derailleur
SRAM GX EAGLE
Shift Levers
SRAM GX EAGLE
Cassette
SRAM GX EAGLE 1275 10-52
Crank
SRAM GX EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE
Wheels
Rims
CRANK BROTHERS SYNTHESIS ENDURO 30MM
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM CODE R
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM 30MM RISE
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.35 mm | 1.3 mm | 1.26 mm | 1.26 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 752 mm | 783 mm | 806 mm | 835 mm | 860 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 616 mm | 619 mm | 624 mm | 634 mm | 654 mm |
| Reach | 429 mm | 459 mm | 479 mm | 504 mm | 519 mm |
| Top Tube Length | 572 mm | 602 mm | 623 mm | 651 mm | 670 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1187 mm | 1220 mm | 1245 mm | 1276 mm | 1303 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 725 mm | 732 mm | 736 mm | 738 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
SB140 LR C2 belongs to the Yeti Sb140 model. Yeti launched 79 bikes of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Yeti SB140 27.5 C1 2024 is the most economical model, with a starting price of 5100$. Yeti SB140 LR T4 XX Transmission 2024 on the other hand costs 10200$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6200$. If we compare this with the average Trail bike cost we notice that the price is 124.48% more expensive.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.88 kg (28.4 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Yeti SB140 LR C2 it’s weighing 14.45 kg (31.86 lbs). At this weight, is considerably heavier than average. In other words, this model is 12.19% heavier than the average Trail bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX PERFORMANCE FLOAT X Upgradable, with a travel distance of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on SB140 LR C2 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SB140 LR C2 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
