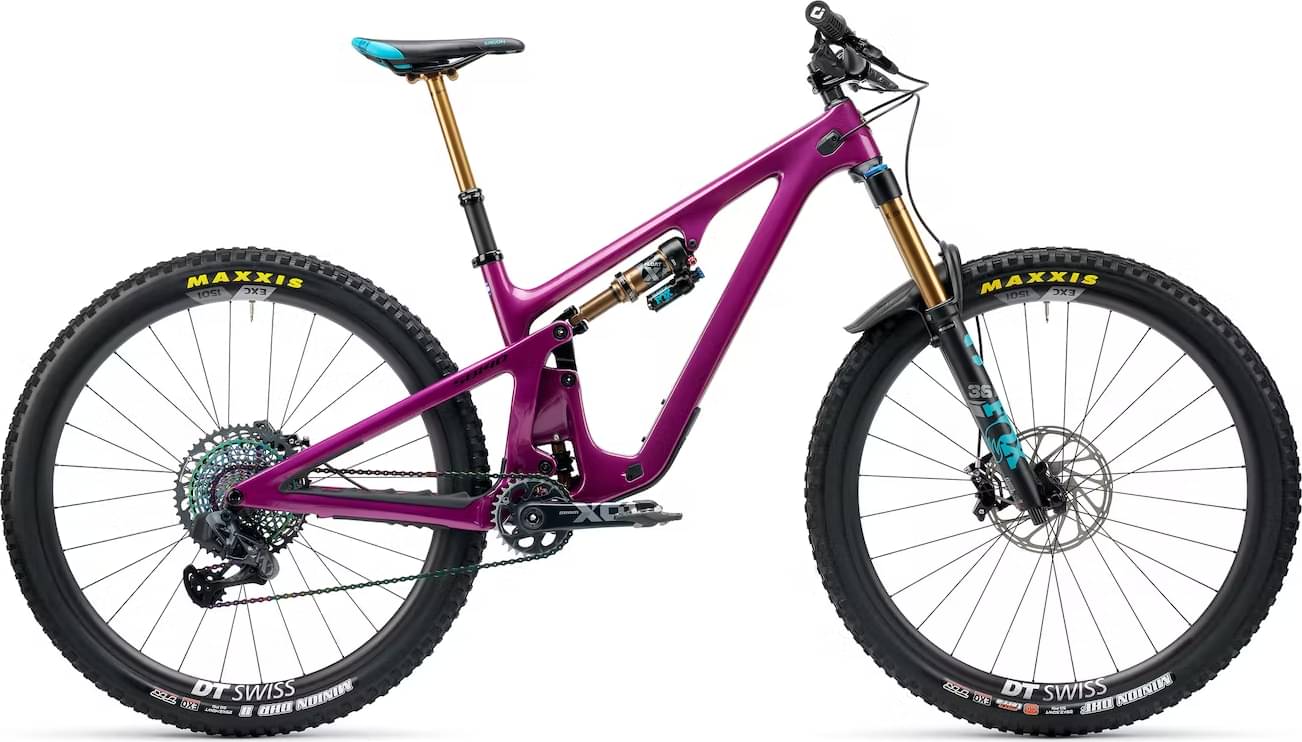

Yeti SB140 T3 2023
2023 Mountain
Estimate price |
8,600$
Weight | 13.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS
Shift Levers
SRAM EAGLE AXS
Cassette
SRAM X01 EAGLE 1295 10-52
Crank
SRAM X1 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.28 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 748 mm | 779 mm | 802 mm | 831 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 613 mm | 616 mm | 620 mm | 630 mm | 650 |
| Reach | 434 mm | 464 mm | 484 mm | 509 mm | 524 mm |
| Top Tube Length | 570 mm | 601 mm | 622 mm | 649 mm | 669 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1183 mm | 1216 mm | 1241 mm | 1272 mm | 1299 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 721 mm | 728 mm | 732 mm | 734 mm | 739 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
SB140 T3 completes the Yeti Sb140 model. Yeti released 79 bikes variations of this model so far. Take a sneak peek at all Yeti Sb140 bikes models from 2023, by clicking here.
Model range prices
Yeti SB140 27.5 C1 2023 is the cheapest bike model and costs 5100$. Yeti SB140 LR T4 2023 is the most expensive one and costs 10500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 8600$. Comparing this to the average Trail bike price, we see that the price is 211.37% higher.
Average weight for Trail bikes
The average weight for Trail bikes is 12.88 kg (28.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.47 kg (29.7 lbs), the SB140 T3 model is slightly heavier than average. In other words, this model is 4.58% heavier than the average Trail bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
SB140 T3 components
Fork
Yeti SB140 T3 2023 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX FACTORY FLOAT DPS model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The SB140 T3 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The SB140 T3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the SB140 T3. Therefore, climbing or descending will be a breeze.
