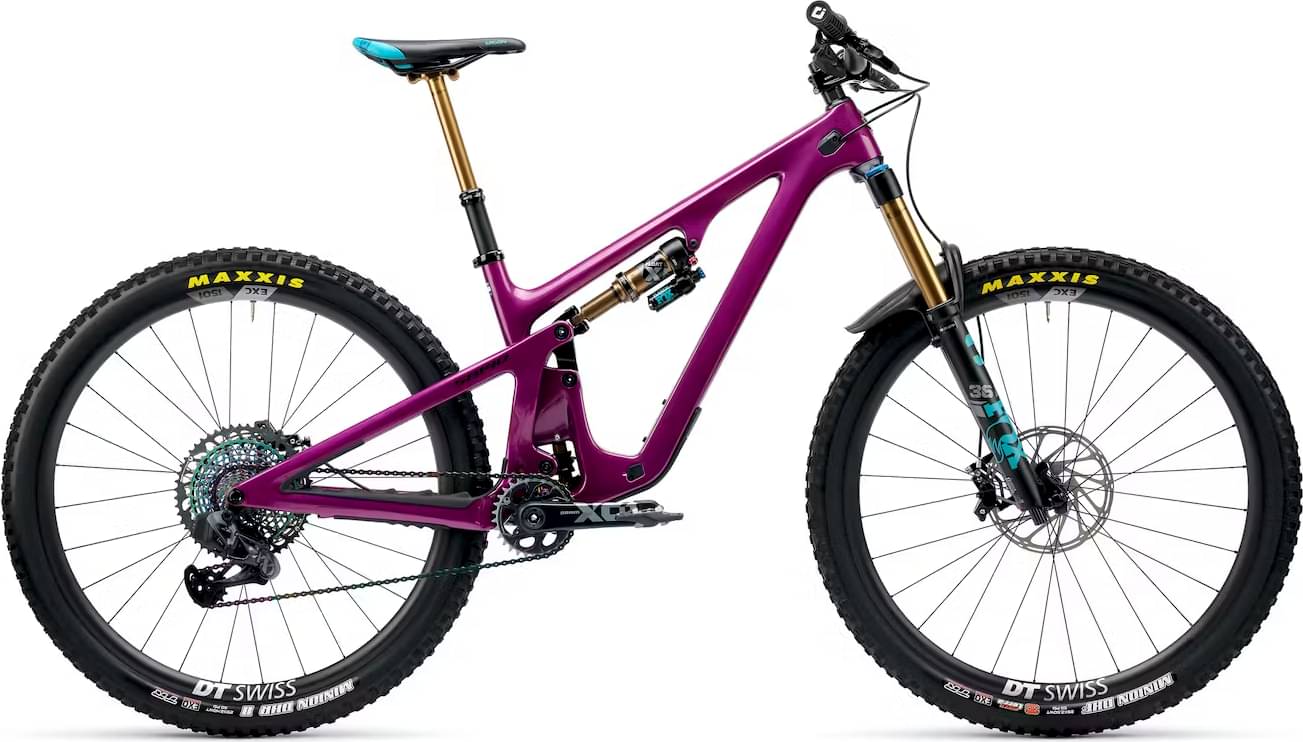

Yeti SB140 T3 X0 Transmission 2023
2023 Mountain
Estimate price |
9,300$
Weight | 13.77 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SRAM X0 EAGLE AXS TRANSMISSION
Shift Levers
SRAM AXS POD CONTROLLER
Cassette
SRAM X0 EAGLE TRANSMISSION 10-52
Crank
SRAM X0 EAGLE TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM X0 EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.28 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 748 mm | 779 mm | 802 mm | 831 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 613 mm | 616 mm | 620 mm | 630 mm | 650 |
| Reach | 434 mm | 464 mm | 484 mm | 509 mm | 524 mm |
| Top Tube Length | 570 mm | 601 mm | 622 mm | 649 mm | 669 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1183 mm | 1216 mm | 1241 mm | 1272 mm | 1299 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 721 mm | 728 mm | 732 mm | 734 mm | 739 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
SB140 T3 X0 Transmission completes the Yeti Sb140 model. There are 79 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Yeti SB140 27.5 C1 2023 is the most economical model, with a starting price of 5100$. Yeti SB140 LR T4 2023 on the other hand costs 10500$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9300$. If we compare this with the average Trail bike cost we notice that the price is 236.71% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.88 kg (28.4 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, SB140 T3 X0 Transmission has a weight of 13.77 kg (30.36 lbs). To sum up, it’s 6.91% heavier than the average weight of Trail bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SB140 T3 X0 Transmission components
Fork
Yeti SB140 T3 X0 Transmission 2023 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Yeti SB140 T3 X0 Transmission bike has the FOX FACTORY FLOAT DPS model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The SB140 T3 X0 Transmission 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB140 T3 X0 Transmission has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
The Yeti model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
