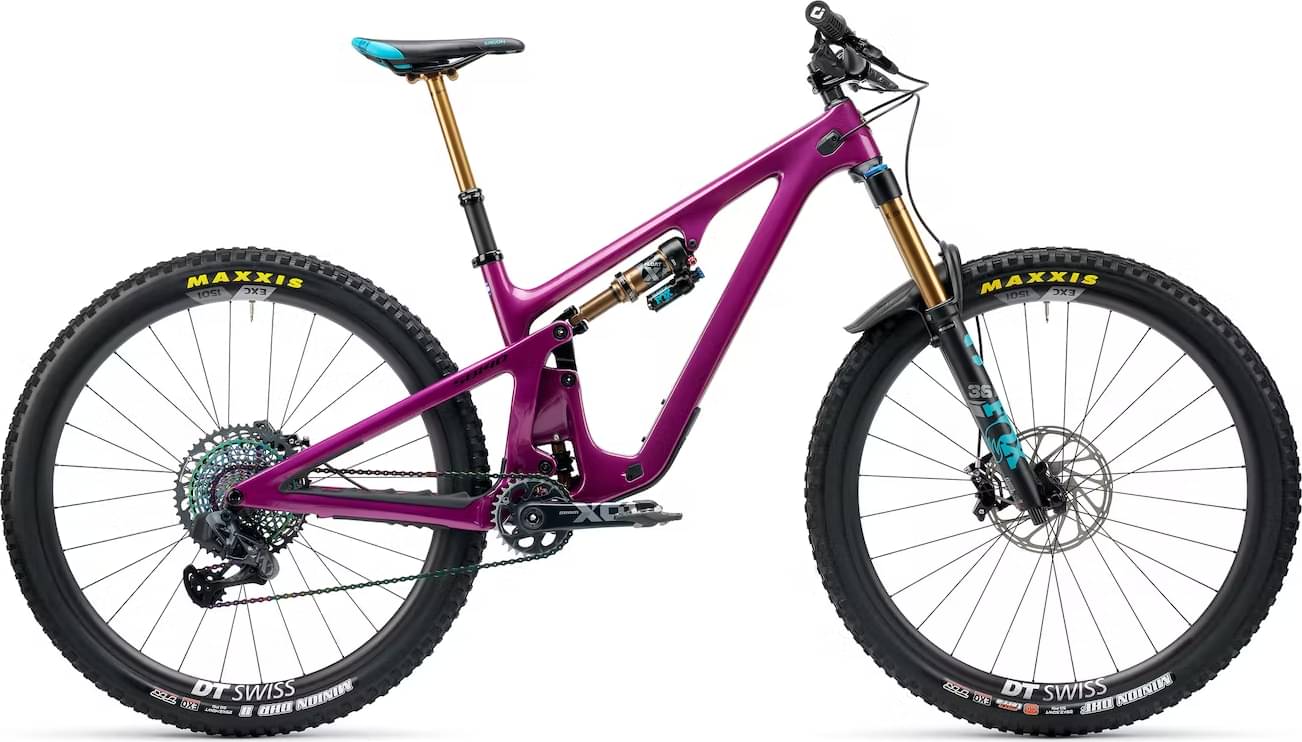

Yeti SB140 T4 2023
2023 Mountain
Estimate price |
10,300$
Weight | 13.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY FLOAT DPS
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS
Shift Levers
SRAM EAGLE AXS
Cassette
SRAM XX1 EAGLE 1299 10-52
Crank
SRAM XX1 EAGLE 32T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM XX1 EAGLE
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.5 EXO, Rear: MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM G2 ULTIMATE
Cockpit
Stem
BURGTEC ENDURO MK3 CNC 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 110 INTEGRATED
Seat
Saddle
ERGON SM ENDURO SADDLE
Seatpost
FOX TRANSFER FACTORY 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.28 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 748 mm | 779 mm | 802 mm | 831 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 613 mm | 616 mm | 620 mm | 630 mm | 650 |
| Reach | 434 mm | 464 mm | 484 mm | 509 mm | 524 mm |
| Top Tube Length | 570 mm | 601 mm | 622 mm | 649 mm | 669 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1183 mm | 1216 mm | 1241 mm | 1272 mm | 1299 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 721 mm | 728 mm | 732 mm | 734 mm | 739 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
SB140 T4 is part of the Yeti Sb140 model. There are 79 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Yeti SB140 27.5 C1 2023 is the most economical model, with a starting price of 5100$. Yeti SB140 LR T4 2023 on the other hand costs 10500$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 10300$. If we compare this with the average Trail bike cost we notice that the price is 272.92% more expensive.
Average weight for Trail bikes
Trail bikes have an average weight of 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.29 kg (29.3 lbs), Yeti bike is slightly heavier than average. To sum up, it’s 3.18% heavier than the average weight of Trail bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Yeti SB140 T4 2023 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX FACTORY FLOAT DPS, with a travel distance of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the SB140 T4 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The SB140 T4 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Yeti SB140 T4 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
