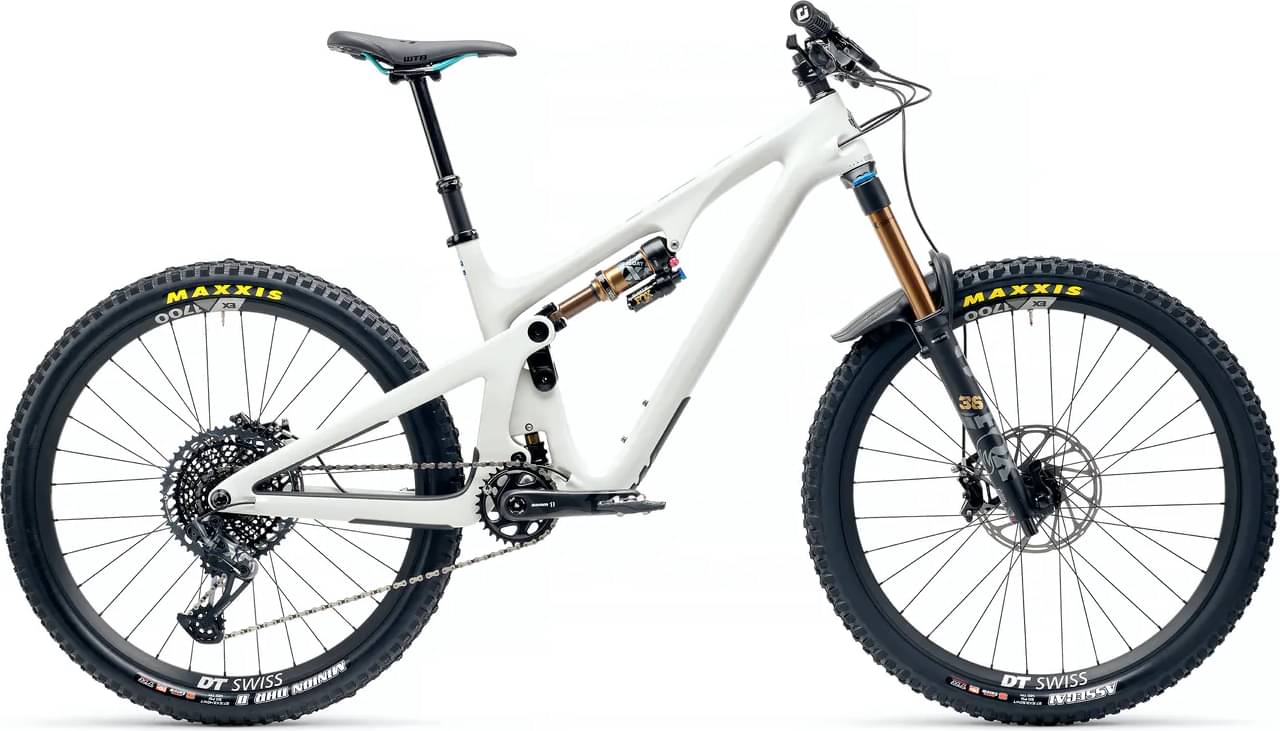

Yeti SB140 T/Series Frameset 2022
2022 Mountain
Estimate price |
4,200$
Weight | 3.18 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 140mm -
Suspension Full
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Rear Shock
FOX FACTORY FLOAT X
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.28 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 336.6 mm | 336.6 mm | 336.7 mm | 336.8 mm | 336.9 mm |
| Front Center | 707.3 mm | 738.4 mm | 770.7 mm | 795.4 mm | 825 mm |
| Stack | 584.8 mm | 597.7 mm | 602.5 mm | 612.4 mm | 622.3 mm |
| Reach | 415.6 mm | 440.6 mm | 470.5 mm | 490.5 mm | 515.5 mm |
| Top Tube Length | 542.9 mm | 571.8 mm | 603.2 mm | 626.1 mm | 654.1 mm |
| Seat Tube Angle | 77.6 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.3 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1146 mm | 1177 mm | 1209 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 704 mm | 709 mm | 712 mm | 714 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SB140 T/Series Frameset completes the Yeti Sb140 model. Yeti released 79 frames variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Yeti SB140 T/Series Frameset 2022 has a starting price of 4200$. Yeti SB140 27.5 T/Series Frameset 2022 on the other hand is the most expensive at 4500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail frames average price
According to our math, the average price for a trustworthy Trail frame is 1736$. However, you could also get a good Trail frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Yeti SB140 T/Series Frameset price was 4200$. Comparing this to the average Trail frame price, we see that the price is 141.94% more expensive.
Trail frames average weight
If we make a quick analysis of the average weight of a Trail frame, we get 2.93 kg (6.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, SB140 T/Series Frameset has a weight of 3.18 kg (7.01 lbs). In conclusion, the average Trail frame weighs 8.53% less than SB140 T/Series Frameset.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
Yeti SB140 T/Series Frameset frame has the FOX FACTORY FLOAT X model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
