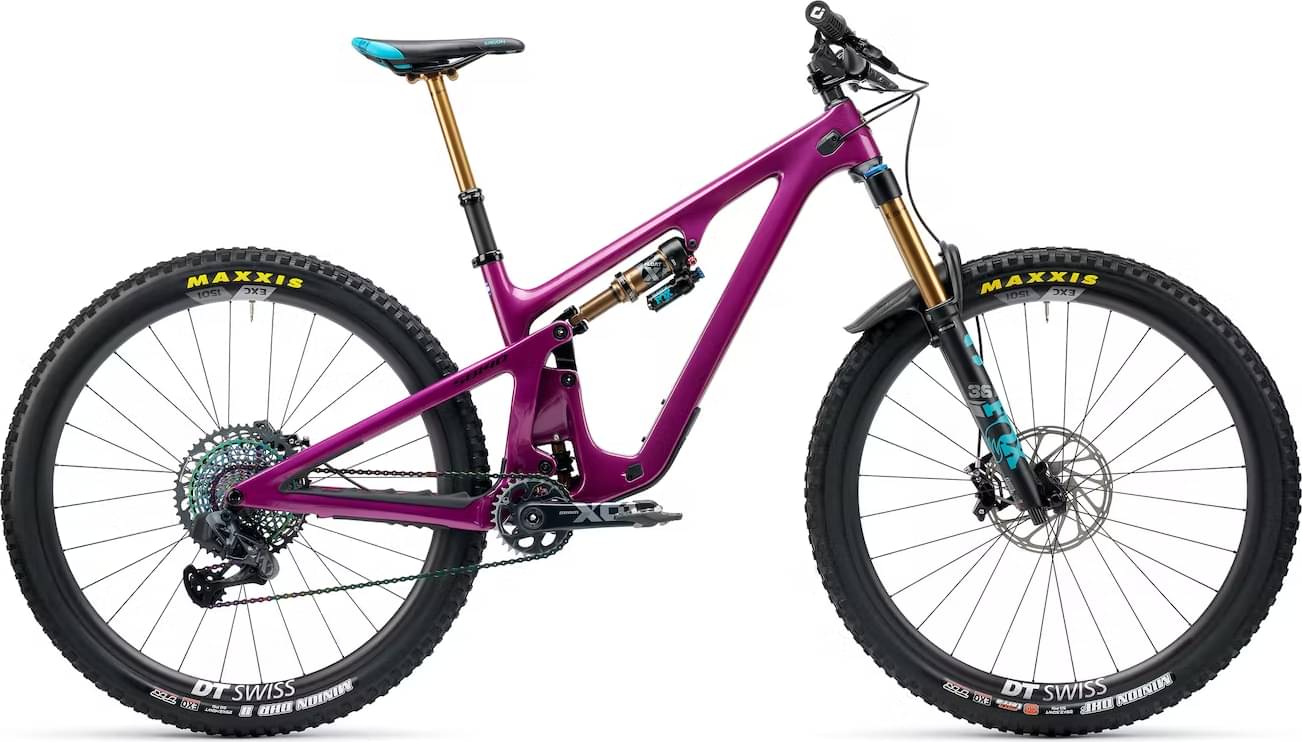

Yeti SB140 T/Series Frameset 2023
2023 Mountain
Estimate price |
4,500$
Weight | 3.37 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 140mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Rear Shock
FOX FACTORY FLOAT X
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.28 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 748 mm | 779 mm | 802 mm | 831 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 613 mm | 616 mm | 620 mm | 630 mm | 650 |
| Reach | 434 mm | 464 mm | 484 mm | 509 mm | 524 mm |
| Top Tube Length | 570 mm | 601 mm | 622 mm | 649 mm | 669 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1183 mm | 1216 mm | 1241 mm | 1272 mm | 1299 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 721 mm | 728 mm | 732 mm | 734 mm | 739 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
SB140 T/Series Frameset is a Yeti Sb140 model. There are 79 frames that carry this model name. Take a sneak peek at all Yeti Sb140 frames models from 2023, by clicking here.
Model range prices
Yeti SB140 27.5 T/Series Frameset 2023 is the most economical model, with a starting price of 4500$. Yeti SB140 T/Series Frameset 2023 on the other hand costs 4500$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail frames
If you want an acceptable Trail frame you should know that the average price is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4500$. In conclusion, this frame price is 159.22% more expensive than the price of the average Trail frame.
Average weight for Trail frames
The average weight for Trail frames is 2.88 kg (6.35 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 3.37 kg (7.43 lbs), Yeti frame is much heavier than average. To sum up, it’s 17.01% heavier than the average weight of Trail frames.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Rear Shock
The SB140 T/Series Frameset has a rear shock with a travel of 140mm. The model FOX FACTORY FLOAT X is the one installed in this frame. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
