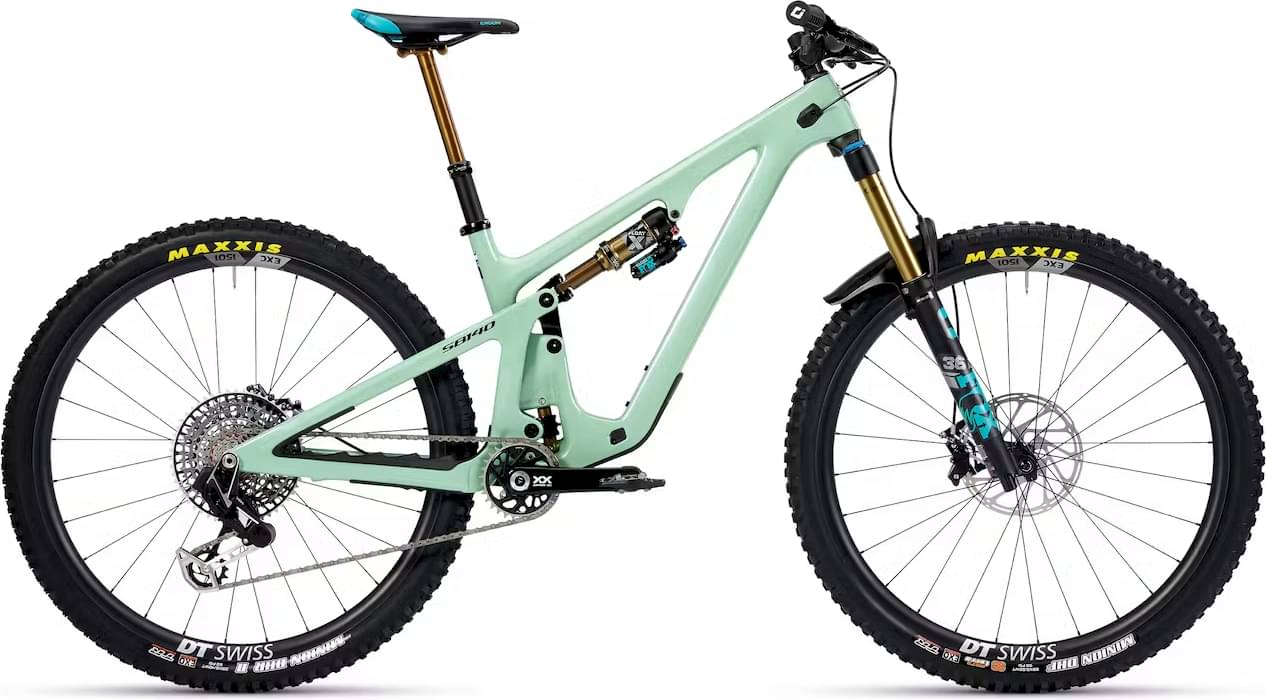

Yeti SB140 T/Series Frameset 2024
2024 Mountain
Estimate price |
4,400$
Weight | 3.37 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 140mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Rear Shock
FOX FACTORY FLOAT X
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.28 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 748 mm | 779 mm | 802 mm | 831 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 613 mm | 616 mm | 620 mm | 630 mm | 650 |
| Reach | 434 mm | 464 mm | 484 mm | 509 mm | 524 mm |
| Top Tube Length | 570 mm | 601 mm | 622 mm | 649 mm | 669 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.4 ° | 77.4 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 95 mm | 100 mm | 112 mm | 134 mm |
| Chainstay Length | 435 mm | 437 mm | 439 mm | 441 mm | 443 mm |
| Wheelbase | 1183 mm | 1216 mm | 1241 mm | 1272 mm | 1299 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 721 mm | 728 mm | 732 mm | 734 mm | 739 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
SB140 T/Series Frameset completes the Yeti Sb140 model. Yeti launched 79 frames of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Yeti SB140 T/Series Frameset 2024 is the most affordable frame of this model and has a price of 4400$. On the other hand, Yeti SB140 27.5 T/Series Frameset 2024, is the most expensive and costs 4500$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail frames
Our math shows that the average cost of a dependable Trail frame is 1736$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4400$. If we compare this with the average Trail frame cost we notice that the price is 153.46% higher.
Trail frames average weight
The average weight for Trail frames is 2.88 kg (6.35 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Yeti SB140 T/Series Frameset it’s weighing 3.37 kg (7.43 lbs). At this weight, is much heavier than average. In short, the average Trail frame weight is 17.01% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SB140 T/Series Frameset components
Rear Shock
The shock that’s installed on this frame is FOX FACTORY FLOAT X, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
