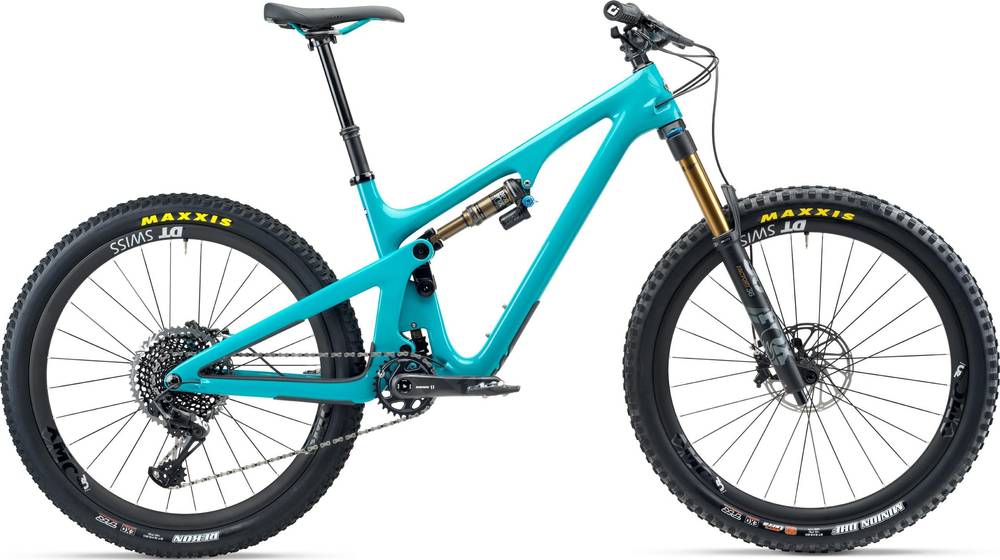

Yeti SB140 — T/Series / T3 2020
2020 Mountain
Estimate price |
8,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle, X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, trail inspired geometry, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max bearing pivots, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY GRIP 2 36/160MM
Rear Shock
FOX FACTORY DPX2, 210 x 55MM
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE
Shift Levers
SRAM XX1 EAGLE
Cassette
SRAM XX1 EAGLE 1299 10-50
Crank
SRAM X01 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM XX1 EAGLE
Wheels
Rims
DT SWISS M1700 30MM
Tires
MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM CENTERLINE 180/180
Cockpit
Stem
RACE FACE TURBINE 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB VOLT CUSTOM
Seatpost
FOX TRANSFER FACTORY 31.6MM / XS-SM: 125MM, MD: 150MM, LG-XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.3 mm | 1.27 mm | 1.22 mm |
| Bottom Bracket Height | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm |
| Front Center | 711.8 mm | 742.9 mm | 775.2 mm | 799.9 mm | 829.6 mm |
| Stack | 587.9 mm | 600.9 mm | 605.9 mm | 615.9 mm | 625.9 mm |
| Reach | 411.1 mm | 436.1 mm | 466.1 mm | 486.1 mm | 511.1 mm |
| Top Tube Length | 544.2 mm | 573 mm | 604.5 mm | 627.5 mm | 655.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 77 ° | 77 ° | 76.9 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1150 mm | 1181 mm | 1214 mm | 1238 mm | 1268 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 708 mm | 713 mm | 716 mm | 718 mm | 720 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SB140 — T/Series / T3 completes the Yeti Sb140 model. Yeti released 79 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Yeti SB140 — C/Series / C1 2020 is the most affordable bike of this model and has a price of 5399$. On the other hand, Yeti SB140 — T/Series / T3 2020, is the most expensive and costs 8299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Yeti released this model in 2020, its price was 8299$. Comparing the average cost of a Trail bike to this one, you will see that SB140 — T/Series / T3 price is 200.47% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
SB140 — T/Series / T3 components
Fork
Yeti SB140 — T/Series / T3 2020 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The SB140 — T/Series / T3 has a rear shock with a travel of 140mm. The model FOX FACTORY DPX2 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on SB140 — T/Series / T3 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB140 — T/Series / T3 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Yeti model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
