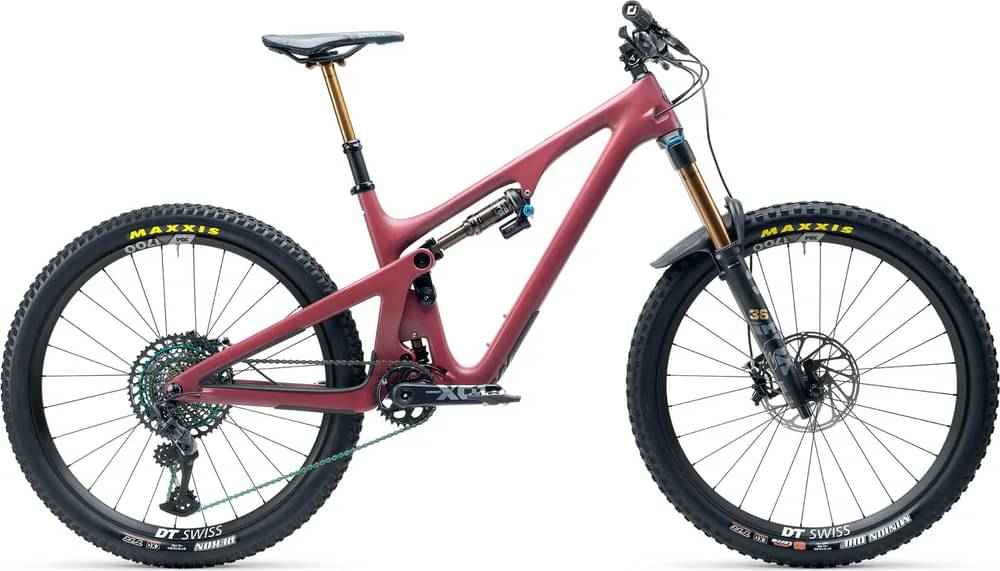

Yeti SB140 — T/Series / T3 2021
2021 Mountain
Estimate price |
9,000$
Weight | 13.08 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle, X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36 GRIP 2/160MM
Rear Shock
FOX FACTORY DPX2, 210 x 55MM
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE Upgradable
Shift Levers
SRAM XX1 EAGLE Upgradable
Cassette
SRAM XX1 EAGLE 1299 10-52
Crank
SRAM X01 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM XX1 EAGLE
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SRAM G2 ULTIMATE
Disk Rotors
SRAM CENTERLINE 200/SRAM CENTERLINE 180
Cockpit
Stem
RACE FACE TURBINE R 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 110 INTEGRATED
Seat
Saddle
ERGON SADDLE
Seatpost
FOX TRANSFER FACTORY 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.3 mm | 1.27 mm | 1.22 mm |
| Bottom Bracket Height | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm |
| Front Center | 711.8 mm | 742.9 mm | 775.2 mm | 799.9 mm | 829.6 mm |
| Stack | 587.9 mm | 600.9 mm | 605.9 mm | 615.9 mm | 625.9 mm |
| Reach | 411.1 mm | 436.1 mm | 466.1 mm | 486.1 mm | 511.1 mm |
| Top Tube Length | 544.2 mm | 573 mm | 604.5 mm | 627.5 mm | 655.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 77 ° | 77 ° | 76.9 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1150 mm | 1181 mm | 1214 mm | 1238 mm | 1268 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 708 mm | 713 mm | 716 mm | 718 mm | 720 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SB140 — T/Series / T3 completes the Yeti Sb140 model. 79 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Yeti SB140 — C/Series / C1 2021 is the cheapest bike model and costs 5600$. Yeti SB140 — T/Series / T3 2021 is the most expensive one and costs 9000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9000$. If we compare this with the average Trail bike cost we notice that the price is 225.85% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.08 kg (28.84 lbs), Yeti bike is slightly heavier than average. In short, the average Trail bike weight is 0.77% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SB140 — T/Series / T3 components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Yeti SB140 — T/Series / T3 bike has the FOX FACTORY DPX2 model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the SB140 — T/Series / T3 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SB140 — T/Series / T3 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Yeti SB140 — T/Series / T3 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the SB140 — T/Series / T3. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
