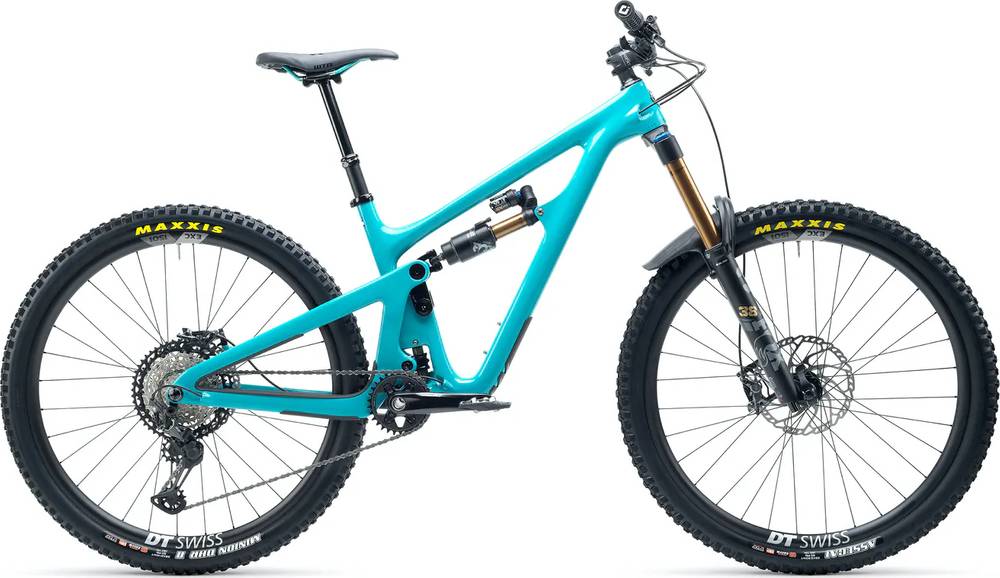

Yeti SB150 — T/Series Frameset 2020
2020 Mountain
Estimate price |
3,900$
Weight | 3.5 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Rear Shock
FOX FACTORY X2 230 X 60MM
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 347.8 mm | 347.8 mm | 347.9 mm | 347.9 mm |
| Front Center | 759.5 mm | 790.2 mm | 815 mm | 844.7 mm |
| Stack | 610.4 mm | 611.8 mm | 621.8 mm | 631.8 mm |
| Reach | 427.2 mm | 457.2 mm | 477.2 mm | 502.2 mm |
| Top Tube Length | 568.9 mm | 599.4 mm | 622.6 mm | 650.9 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76.9 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 96.6 mm | 107.7 mm | 118.8 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1189 mm | 1220 mm | 1245 mm | 1274 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 717 mm | 724 mm | 737 mm | 758 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB150 — T/Series Frameset is a Yeti Sb150 model. Yeti launched 32 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro frames
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3900$. Doing a quick comparison, we notice that SB150 — T/Series Frameset price is 105.8% more expensive than the average cost of an Enduro frame.
Average weight for Enduro frames
On a deeper look, we notice that the average weight of an Enduro frame is 3.43 kg (7.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 3.5 kg (7.72 lbs), Yeti frame is slightly heavier than average. In other words, this model is 2.04% heavier than the average Enduro frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
SB150 — T/Series Frameset components
Rear Shock
The shock that’s installed on this frame is FOX FACTORY X2 230 X 60MM, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
SB150 — T/Series Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
