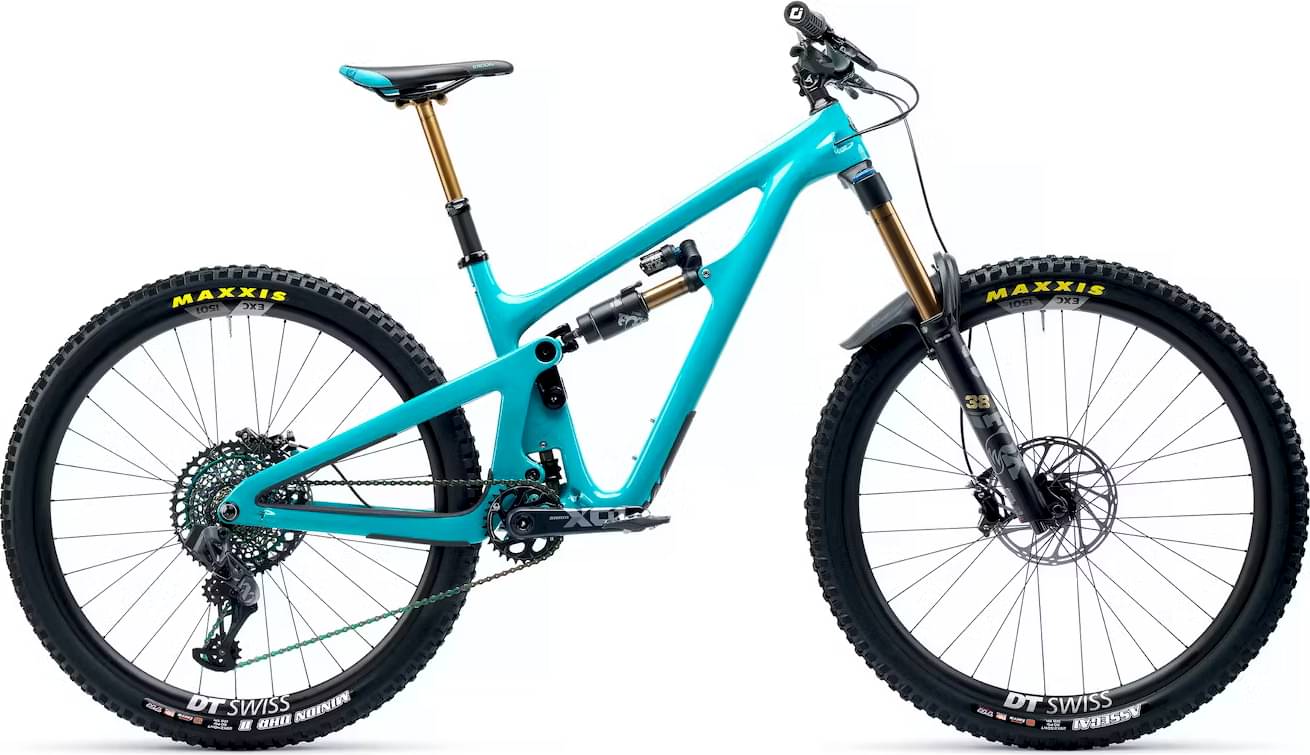

Yeti SB150 T/Series Frameset 2023
2023 Mountain
Estimate price |
4,700$
Weight | 3.49 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Rear Shock
FOX FACTORY FLOAT X2
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 347.8 mm | 347.8 mm | 347.9 mm | 347.9 mm |
| Front Center | 759.5 mm | 790.2 mm | 815 mm | 844.7 mm |
| Stack | 610.4 mm | 611.8 mm | 621.8 mm | 631.8 mm |
| Reach | 427.2 mm | 457.2 mm | 477.2 mm | 502.2 mm |
| Top Tube Length | 568.9 mm | 599.4 mm | 622.6 mm | 650.9 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76.9 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 96.6 mm | 107.7 mm | 118.8 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1189 mm | 1220 mm | 1245 mm | 1274 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 717 mm | 724 mm | 737 mm | 758 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SB150 T/Series Frameset belongs to the Yeti Sb150 model. 32 frames variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro frames average price
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4700$. Comparing the average cost of an Enduro frame to this one, you will see that SB150 T/Series Frameset price is 148.02% more expensive.
Average weight for Enduro frames
If we make a quick analysis of the average weight of an Enduro frame, we get 3.44 kg (7.58 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 3.49 kg (7.69 lbs), the SB150 T/Series Frameset model is slightly heavier than average. In conclusion, the average Enduro frame weighs 1.45% less than SB150 T/Series Frameset.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SB150 T/Series Frameset components
Rear Shock
As for the rear shock, this frame has the FOX FACTORY FLOAT X2 model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Sizes
SB150 T/Series Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
