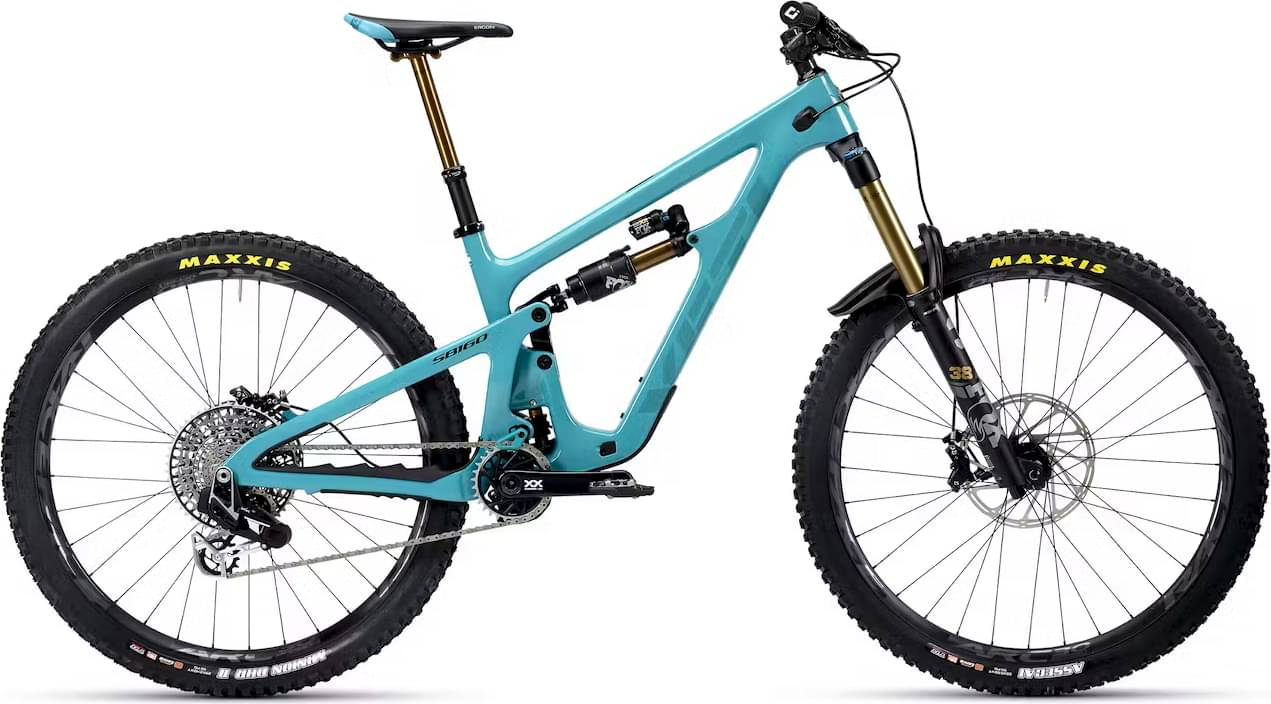

Yeti SB160 C3 GX Transmission 2024
2024 Mountain
Estimate price |
7,300$
Weight | 15.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX PERFORMANCE 38/170MM Upgradable
Rear Shock
FOX PERFORMANCE FLOAT X Upgradable
Drivetrain
Rear Derailleur
SRAM GX EAGLE AXS TRANSMISSION
Shift Levers
SRAM AXS POD CONTROLLER
Cassette
SRAM GX EAGLE TRANSMISSION 10-52
Crank
SRAM GX EAGLE TRANSMISSION 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM GX EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS E1900 30MM
Tires
Front: MAXXIS ASSEGAI 2.5 EXO+, Rear: MAXXIS ASSEGAI 2.5 EXO+
Brakes
Brakes
SRAM CODE R
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X800MM 30MM RISE
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.29 mm | 1.25 mm | 1.25 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 774 mm | 807 mm | 829 mm | 859 mm | 884 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 614 mm | 619 mm | 624 mm | 634 mm | 654 mm |
| Reach | 434 mm | 464 mm | 484 mm | 509 mm | 524 mm |
| Top Tube Length | 570 mm | 601 mm | 623 mm | 650 | 669 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 101 mm | 107 mm | 118 mm | 140 mm |
| Chainstay Length | 436 mm | 438 mm | 440 mm | 442 mm | 444 mm |
| Wheelbase | 1210 mm | 1245 mm | 1269 mm | 1301 mm | 1328 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 734 mm | 743 mm | 749 mm | 755 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
SB160 C3 GX Transmission is a Yeti Sb160 model. Yeti released 13 bikes variations of this model so far. You can easily view all of the Yeti Sb160 bikes models from 2024, here.
Model range prices
Yeti SB160 C2 2024 is the most economical model, with a starting price of 6300$. Yeti SB160 T4 XX Transmission 2024 on the other hand costs 10500$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2024 for 7300$. Comparing this to the average Enduro bike price, we see that the price is 102.83% more expensive.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14 kg (30.86 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Yeti SB160 C3 GX Transmission it’s weighing 15.48 kg (34.13 lbs). At this weight, is considerably heavier than average. To sum up, it’s 10.57% heavier than the average weight of Enduro bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB160 C3 GX Transmission components
Fork
The SB160 C3 GX Transmission comes factory-installed with the Fox Performance Float 38 fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The SB160 C3 GX Transmission has a rear shock with a travel of 160mm. The model FOX PERFORMANCE FLOAT X Upgradable is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the SB160 C3 GX Transmission model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yeti SB160 C3 GX Transmission is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
The Yeti model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
