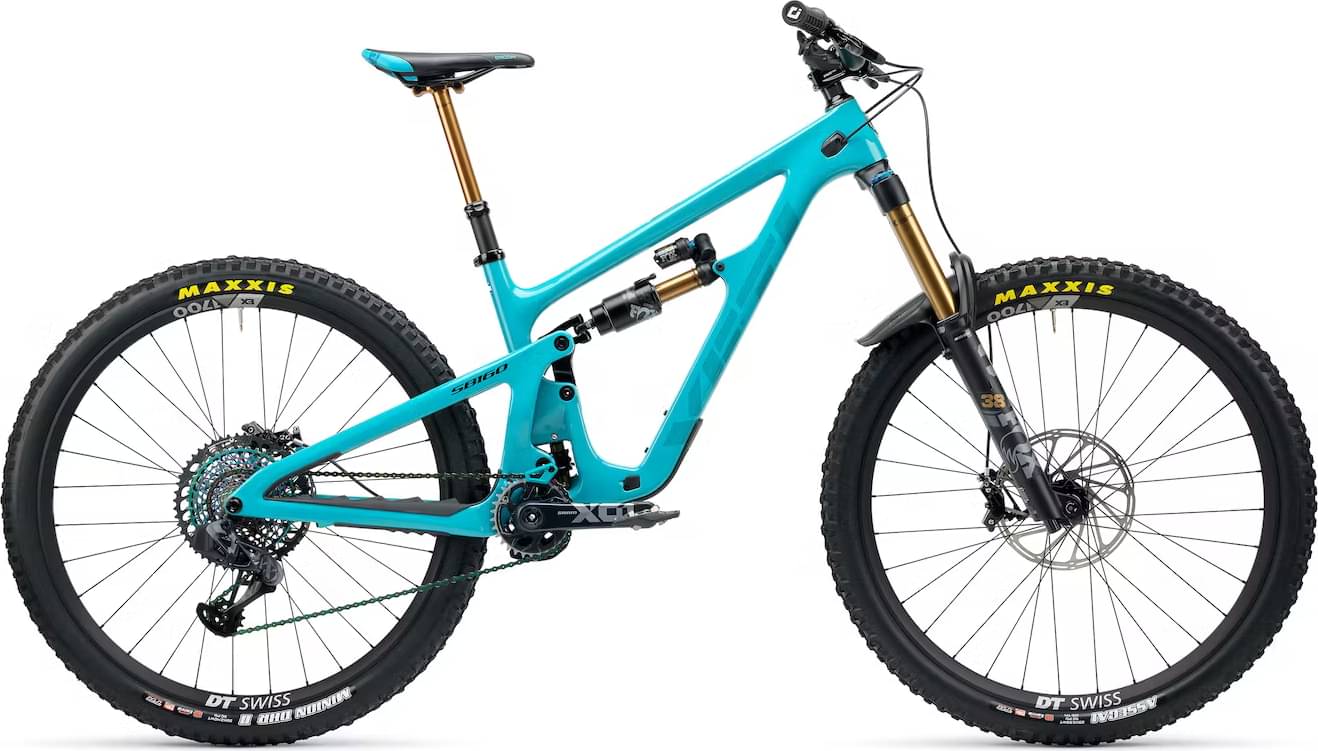

Yeti SB160 T4 2023
2023 Mountain
Estimate price |
10,800$
Weight | 15.01 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 38 GRIP 2/170MM
Rear Shock
FOX FACTORY FLOAT X2
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS
Shift Levers
SRAM EAGLE AXS
Cassette
SRAM XX1 EAGLE 1299 10-52
Crank
SRAM X01 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BSA 73
Chain
SRAM XX1 EAGLE
Wheels
Rims
DT SWISS CUSTOM EX1700 30MM Upgradable
Tires
Front: MAXXIS ASSEGAI 2.5 EXO+, Rear: MAXXIS ASSEGAI 2.5 EXO+
Brakes
Brakes
SRAM CODE RSC
Cockpit
Stem
BURGTEC ENDURO MK3 CNC 35X50MM
Handlebar
YETI CARBON 35X800MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 110 INTEGRATED
Seat
Saddle
ERGON SM ENDURO SADDLE
Seatpost
FOX TRANSFER FACTORY 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.29 mm | 1.25 mm | 1.25 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 774 mm | 807 mm | 829 mm | 859 mm | 884 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 614 mm | 619 mm | 624 mm | 634 mm | 654 mm |
| Reach | 434 mm | 464 mm | 484 mm | 509 mm | 524 mm |
| Top Tube Length | 570 mm | 601 mm | 623 mm | 650 | 669 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 101 mm | 107 mm | 118 mm | 140 mm |
| Chainstay Length | 436 mm | 438 mm | 440 mm | 442 mm | 444 mm |
| Wheelbase | 1210 mm | 1245 mm | 1269 mm | 1301 mm | 1328 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 734 mm | 743 mm | 749 mm | 755 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
SB160 T4 belongs to the Yeti Sb160 model. Yeti launched 13 bikes of this model so far. Take a sneak peek at all Yeti Sb160 bikes models from 2023, by clicking here.
Model range prices
Yeti SB160 C1 2023 is the most affordable bike of this model and has a price of 6700$. On the other hand, Yeti SB160 T4 2023, is the most expensive and costs 10800$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 10800$. In conclusion, this bike price is 200.08% more expensive than the price of the average Enduro bike.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14 kg (30.86 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 15.01 kg (33.09 lbs), Yeti bike is a bit heavier than average. In short, the average Enduro bike weight is 7.21% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SB160 T4 components
Fork
Yeti SB160 T4 2023 bike is equipped with the Fox Factory Float 38 fork, and has 170mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX FACTORY FLOAT X2 rear shock model, which has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Yeti SB160 T4 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Yeti SB160 T4 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
