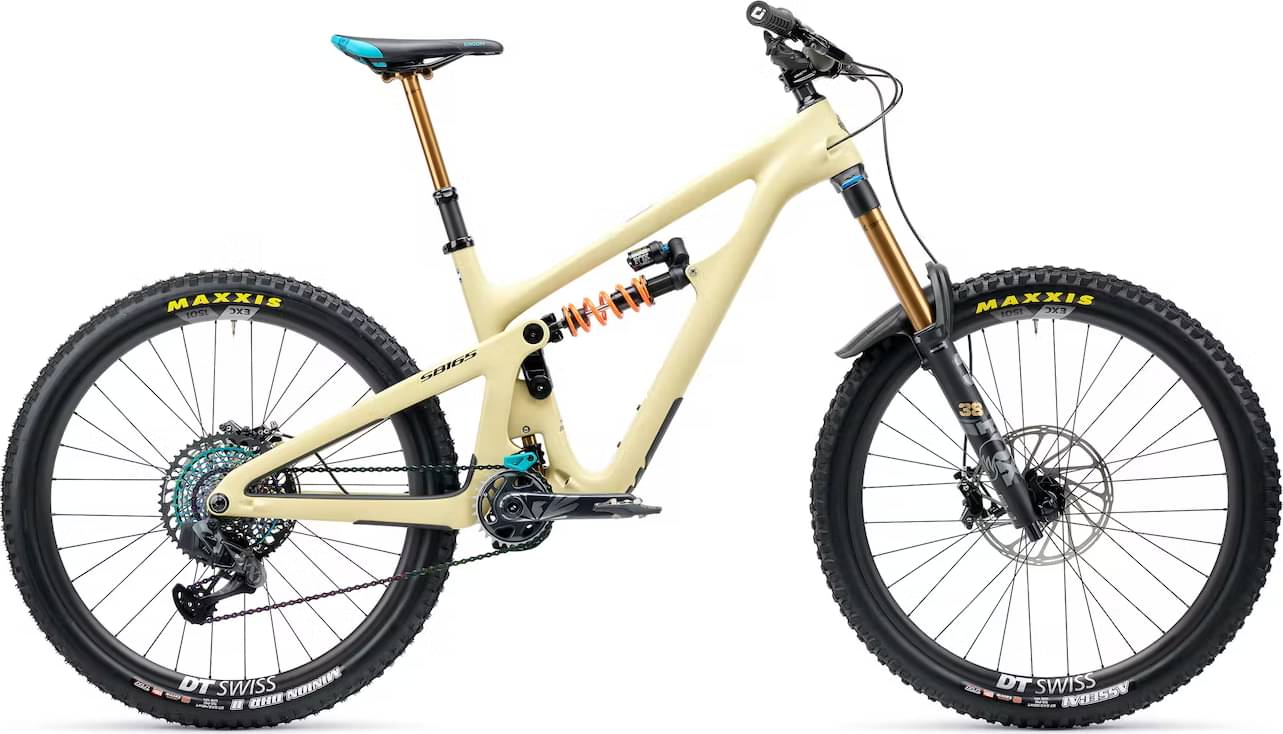

Yeti SB165 T/Series Frameset 2022
2022 Mountain
Estimate price |
5,200$
Weight | 3.83 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, derailleur hanger, and axle.
Rear Shock
FOX FACTORY DHX2 2 POS LEVER SLS SPRING
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 344.9 mm | 344.9 mm | 344.9 mm | 344.9 mm |
| Front Center | 764.7 mm | 797.2 mm | 822.2 mm | 852.2 mm |
| Stack | 591.9 mm | 596.9 mm | 606.9 mm | 616.9 mm |
| Reach | 427.1 mm | 457.1 mm | 477.1 mm | 502.1 mm |
| Top Tube Length | 564 mm | 595.5 mm | 618.5 mm | 646.4 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 104.8 mm | 110.4 mm | 121.6 mm | 132.8 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1194 mm | 1227 mm | 1252 mm | 1282 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Standover Height | 707 mm | 713 mm | 720 mm | 743 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB165 T/Series Frameset is part of the Yeti Sb165 model. 28 frames variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro frames average price
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5200$. In conclusion, this frame price is 174.41% higher than the price of the average Enduro frame.
Average weight for Enduro frames
Enduro frames have an average weight of 3.43 kg (7.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, SB165 T/Series Frameset has a weight of 3.83 kg (8.44 lbs). To sum up, it’s 11.66% heavier than the average weight of Enduro frames.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB165 T/Series Frameset components
Rear Shock
The SB165 T/Series Frameset has a rear shock with a travel of 165mm. The model FOX FACTORY DHX2 2 POS LEVER SLS SPRING is the one installed in this frame. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
