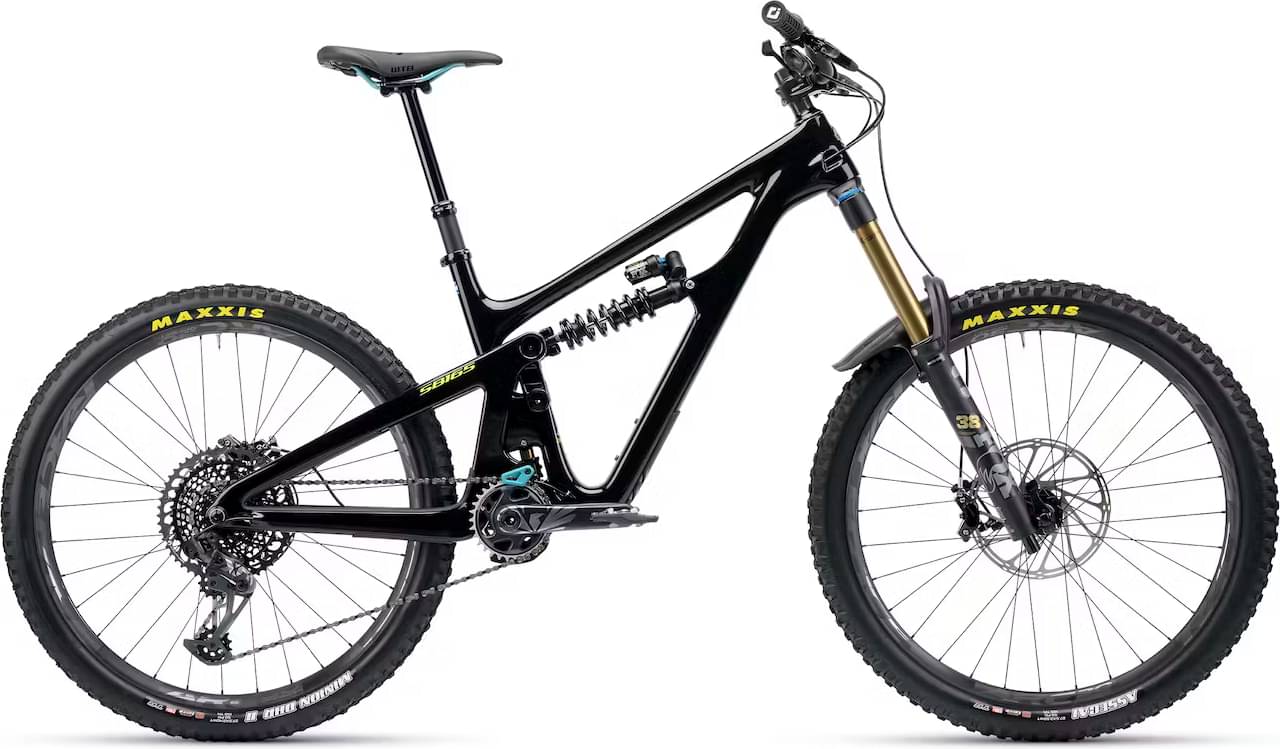

Yeti SB165 T/Series Frameset 2023
2023 Mountain
Estimate price |
4,900$
Weight | 3.83 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, derailleur hanger, and axle.
Rear Shock
FOX FACTORY DHX2 2 POS LEVER SLS SPRING
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 344.9 mm | 344.9 mm | 344.9 mm | 344.9 mm |
| Front Center | 764.7 mm | 797.2 mm | 822.2 mm | 852.2 mm |
| Stack | 591.9 mm | 596.9 mm | 606.9 mm | 616.9 mm |
| Reach | 427.1 mm | 457.1 mm | 477.1 mm | 502.1 mm |
| Top Tube Length | 564 mm | 595.5 mm | 618.5 mm | 646.4 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 104.8 mm | 110.4 mm | 121.6 mm | 132.8 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1194 mm | 1227 mm | 1252 mm | 1282 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Standover Height | 707 mm | 713 mm | 720 mm | 743 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB165 T/Series Frameset is a Yeti Sb165 model. Yeti launched 28 frames of this model so far. You can easily view all of the Yeti Sb165 frames models from 2023, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro frames average price
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Yeti SB165 T/Series Frameset price was 4900$. Doing a quick comparison, we notice that SB165 T/Series Frameset price is 158.58% more expensive than the average cost of an Enduro frame.
Average weight for Enduro frames
The average weight for Enduro frames is 3.44 kg (7.58 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 3.83 kg (8.44 lbs), the SB165 T/Series Frameset model is considerably heavier than average. In conclusion, the average Enduro frame weighs 11.34% less than SB165 T/Series Frameset.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
The SB165 T/Series Frameset has a rear shock with a travel of 165mm. The model FOX FACTORY DHX2 2 POS LEVER SLS SPRING is the one installed in this frame. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Yeti SB165 T/Series Frameset frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
