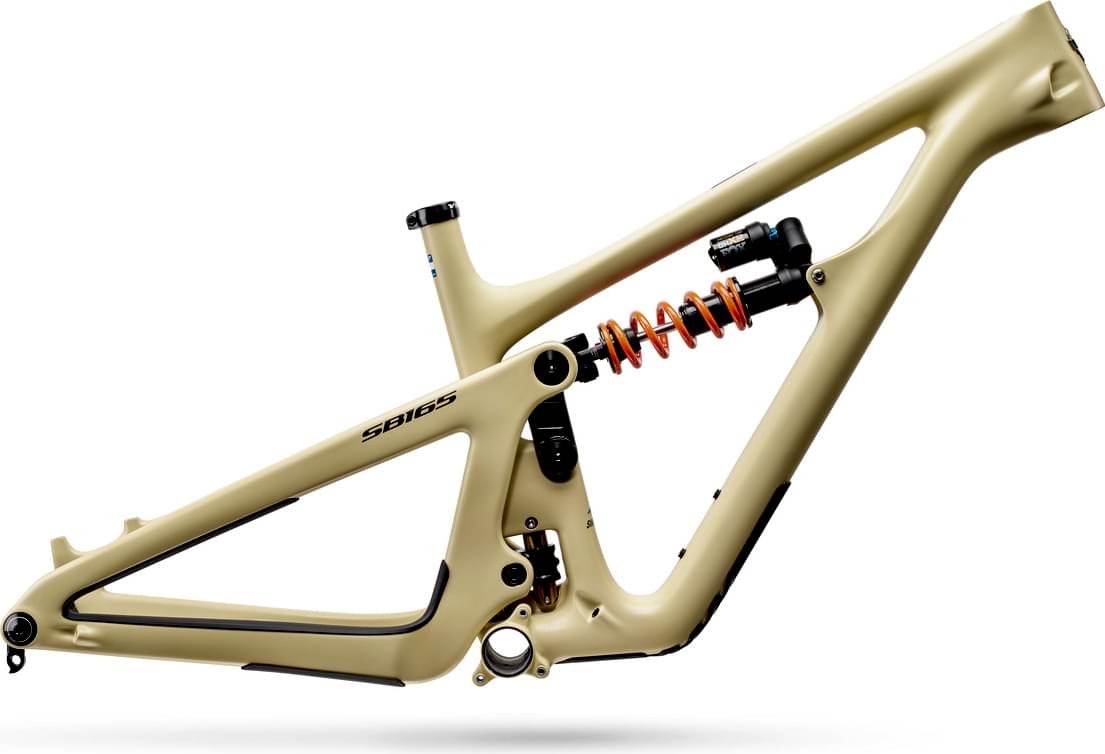

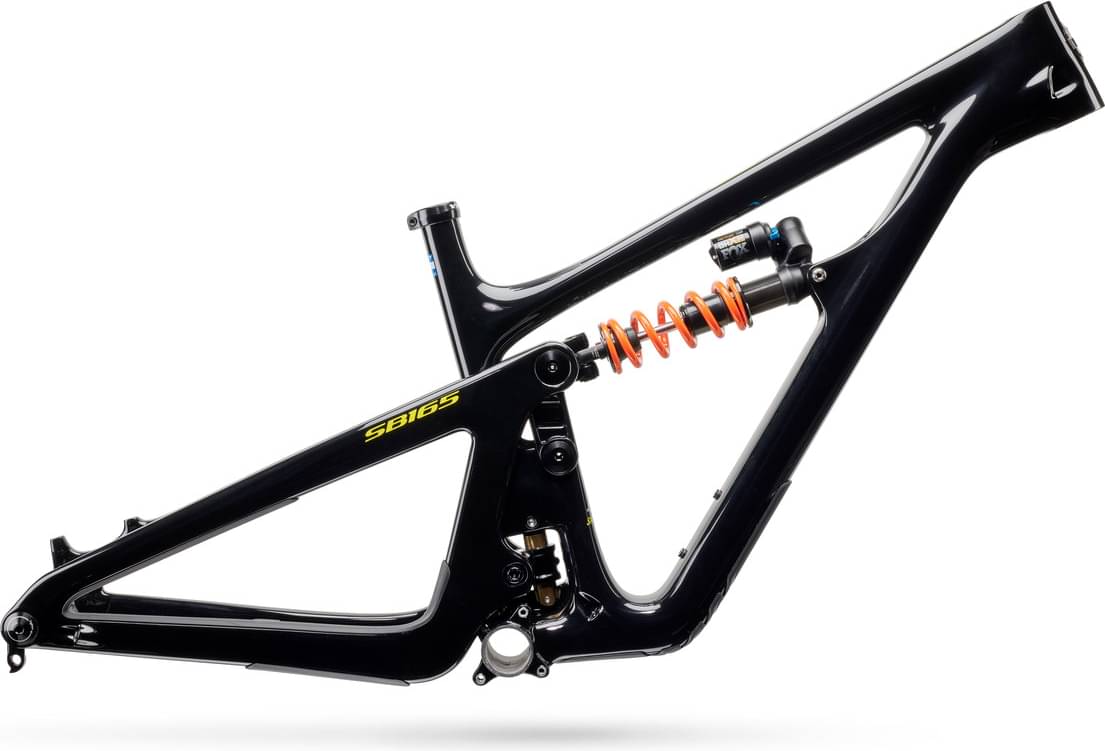

Yeti SB165 T/Series Frameset 2024
2024 Mountain
Estimate price |
4,900$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, derailleur hanger, and axle.
Rear Shock
FOX FACTORY DHX2 2 POS LEVER SLS SPRING
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.383 mm | 1.304 mm | 1.27 mm | 1.227 mm |
| Bottom Bracket Height | 344.9 mm | 344.9 mm | 344.9 mm | 344.9 mm |
| Front Center | 764.7 mm | 797.2 mm | 822.2 mm | 852.2 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 594.9 mm | 599.9 mm | 609.9 mm | 619.9 mm |
| Reach | 430.1 mm | 460.1 mm | 480.1 mm | 505.1 mm |
| Top Tube Length | 567 mm | 598.5 mm | 621.5 mm | 649.4 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 104.8 mm | 110.4 mm | 121.6 mm | 132.8 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1197 mm | 1230 mm | 1255 mm | 1285 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Standover Height | 710 mm | 716 mm | 723 mm | 746 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB165 T/Series Frameset belongs to the Yeti Sb165 model. There are 31 frames that carry this model name. You can easily view all of the Yeti Sb165 frames models from 2024, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro frames average price
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Yeti SB165 T/Series Frameset price was 4900$. In conclusion, this frame price is 158.58% higher than the price of the average Enduro frame.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
Yeti SB165 T/Series Frameset frame has the FOX FACTORY DHX2 2 POS LEVER SLS SPRING model installed, and has a travel of 165mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
Yeti SB165 T/Series Frameset frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
