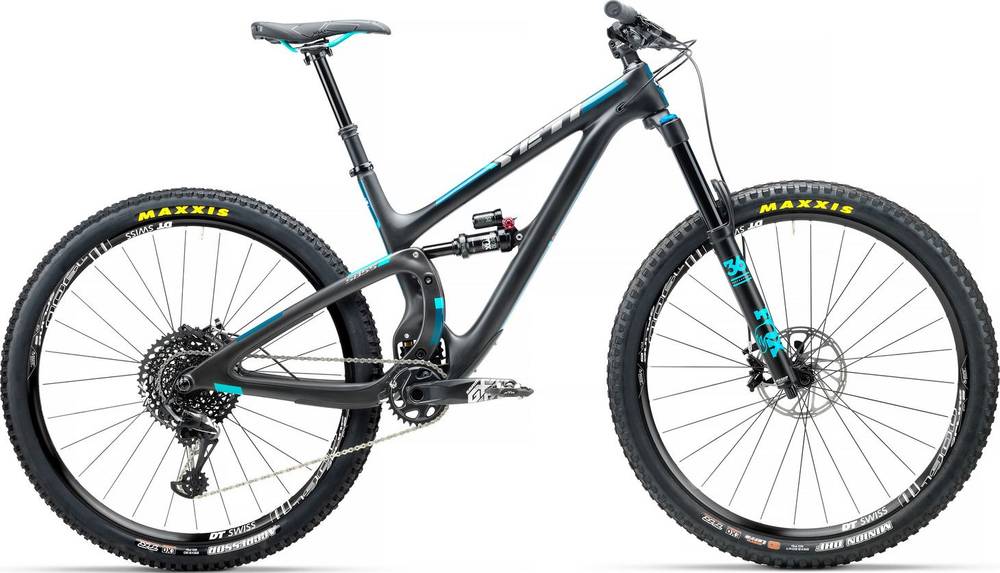

Yeti SB5.5 Carbon GX Eagle 2018
2018 Mountain
Estimate price |
5,399$
Weight | 13.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Performance 36
Rear Shock
FOX Performance DPX2, 7.875" x 2.25"
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM 1275 Eagle, 10-50 tooth, 12-speed
Crank
SRAM GX Eagle
Bottom Bracket
SRAM GXP BB92
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss
Rear Hub
DT Swiss
Rims
DT Swiss M1900, 30mm
Tires
Front: Maxxis Minion DHF, 29" x 2.5", Rear: Maxxis Aggressor, 29" x 2.3"
Brakes
Brakes
SRAM Guide R, Centerline 180mm rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Race Face Respond, 45mm length
Handlebar
Race Face Respond, 785mm width
Grips
Ergon GA2
Headset
Cane Creek 40 Inset Taper
Seat
Saddle
WTB Custom
Seatpost
FOX Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.42 mm | 1.39 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Stack | 604 mm | 618 mm | 633 mm |
| Reach | 415 mm | 436 mm | 457 mm |
| Top Tube Length | 595 mm | 620 mm | 646 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 445 mm | 483 mm | 521 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 121 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1162 mm | 1189 mm | 1216 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Standover Height | 737 mm | 749 mm | 761 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
SB5.5 Carbon GX Eagle is a Yeti Sb55 model. 5 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Yeti SB5.5 Carbon XT/SLX 2018 has a starting price of 4999$. Yeti SB5.5 TURQ XX1 Eagle 2018 on the other hand is the most expensive at 9499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 5399$. Comparing the average cost of a Trail bike to this one, you will see that SB5.5 Carbon GX Eagle price is 95.47% more expensive.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
SB5.5 Carbon GX Eagle weighs 13.88 kg (30.6 lbs) and is a bit heavier than the average. In short, the average Trail bike weight is 6.93% lower than this one.
Overview of components
Fork
The SB5.5 Carbon GX Eagle comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Performance DPX2 rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on SB5.5 Carbon GX Eagle are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The SB5.5 Carbon GX Eagle has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Yeti SB5.5 Carbon GX Eagle bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Yeti SB5.5 Carbon GX Eagle includes a dropper post. Therefore, climbing or descending will be a breeze.
