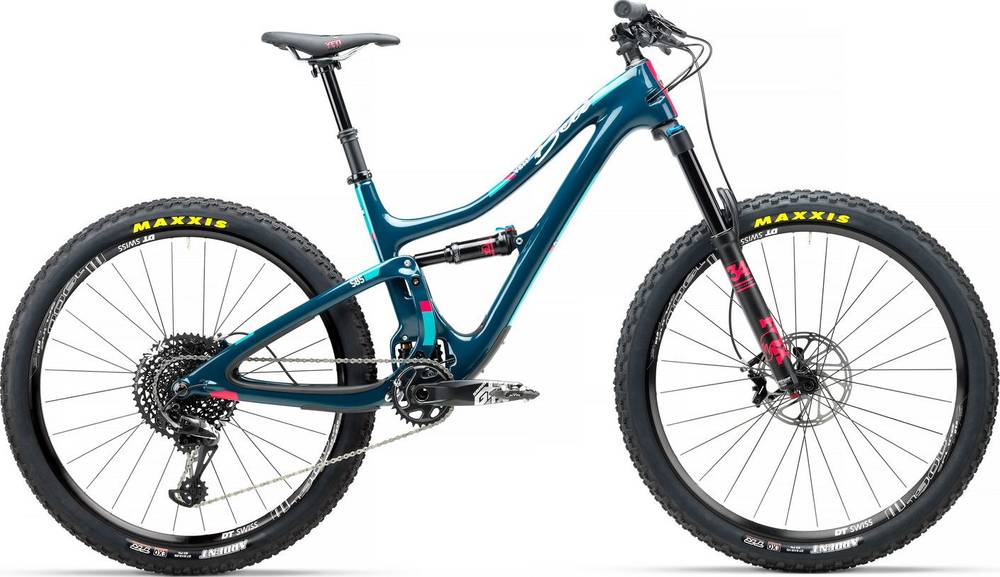

Yeti SB5 Beti Carbon GX Eagle 2018
2018 Mountain
Estimate price |
5,199$
Weight | 12.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 127mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Performance 34
Rear Shock
FOX Performance Beti DPS, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM 1275 Eagle, 10-50 tooth, 12-speed
Crank
SRAM GX Eagle, 170mm length
Bottom Bracket
SRAM GXP BB92
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss
Rear Hub
DT Swiss
Rims
DT Swiss M1900, 25mm
Tires
Maxxis Ardent, EXO TR, 27.5" x 2.4" (front), 27.5" x 2.25" (rear)
Brakes
Brakes
SRAM Guide R, Centerline rotors, 180mm front, 160mm rear
Brake Levers
SRAM Guide R
Cockpit
Stem
Race Face Ride, 60mm length
Handlebar
Race Face Evolve, 750mm width
Grips
Ergon GA2
Headset
Cane Creek 40 Inset Taper
Seat
Saddle
WTB Deva
Seatpost
FOX Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.5 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Stack | 583 mm | 598 mm | 608 mm | 623 mm |
| Reach | 380 mm | 400 mm | 422 mm | 442 mm |
| Top Tube Length | 550 mm | 576 mm | 601 mm | 627 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 419 mm | 445 mm | 483 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 116 mm | 127 mm | 144 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1114 mm | 1140 mm | 1166 mm | 1193 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 666 mm | 681 mm | 722 mm | 735 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
SB5 Beti Carbon GX Eagle is a Yeti Sb5 model. 34 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Yeti SB5 Beti Carbon XT/SLX 2018 is the most economical model, with a starting price of 4799$. Yeti SB5 Beti TURQ XX1 Eagle 2018 on the other hand costs 9299$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Yeti released this model in 2018, its price was 5199$. Doing a quick comparison, we notice that SB5 Beti Carbon GX Eagle price is 88.23% higher than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
SB5 Beti Carbon GX Eagle weighs 12.66 kg (27.91 lbs) and is slightly lighter than the average. To sum up, it’s 2.53% lighter than the average weight of Trail bikes.
SB5 Beti Carbon GX Eagle components
Fork
The SB5 Beti Carbon GX Eagle comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Performance Beti DPS rear shock model, which has a travel of 127mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on SB5 Beti Carbon GX Eagle are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Yeti SB5 Beti Carbon GX Eagle comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
