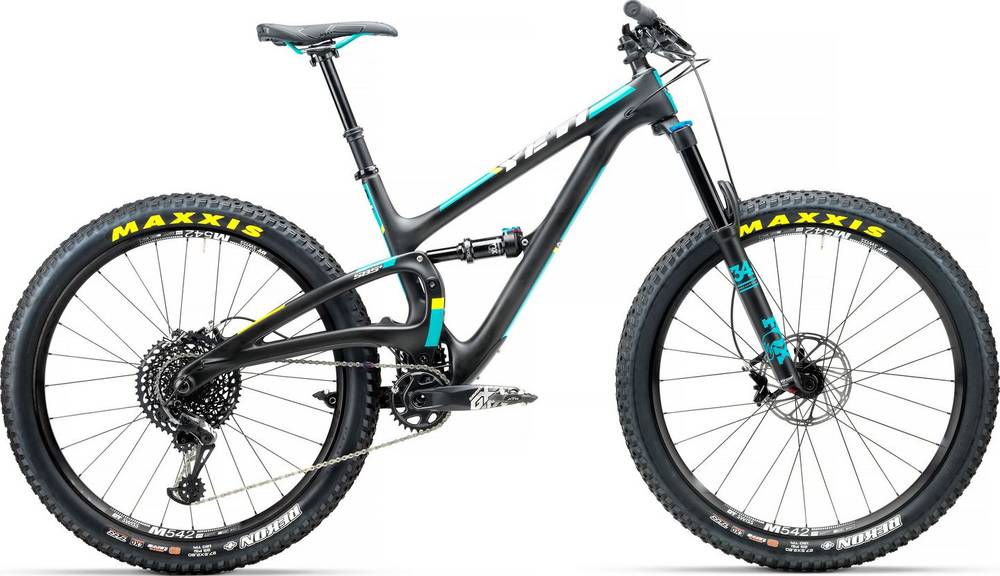

Yeti SB5+ Carbon GX Eagle 2018
2018 Mountain
Estimate price |
5,199$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 127mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Performance 34
Rear Shock
FOX Performance DPS, 7.875" x 2.0"
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM 1275 Eagle, 10-50 tooth, 12-speed
Crank
SRAM GX Eagle
Bottom Bracket
SRAM GXP BB92
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss 370
Rear Hub
DT Swiss 370
Rims
DT Swiss XM551
Tires
Maxxis Rekon, EXO TR, 27.5" x 2.8"
Brakes
Brakes
SRAM Guide R, Centerline 180mm rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Race Face Ride, 60mm length
Handlebar
Race Face Evolve, 750mm width
Grips
Ergon GA2
Headset
Cane Creek 40 Inset Taper
Seat
Saddle
WTB Custom
Seatpost
FOX Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm |
| Stack | 600 mm | 614 mm | 628 mm |
| Reach | 420 mm | 442 mm | 463 mm |
| Top Tube Length | 593 mm | 619 mm | 644 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° | 74.1 ° |
| Seat Tube Length | 445 mm | 483 mm | 521 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 105 mm | 121 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1157 mm | 1184 mm | 1212 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Standover Height | 720 mm | 732 mm | 745 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
SB5+ Carbon GX Eagle completes the Yeti Sb5plus model. Yeti launched 5 bikes of this model so far. Take a sneak peek at all Yeti Sb5plus bikes models from 2018, by clicking here.
Model range prices
Yeti SB5+ Carbon XT/SLX 2018 is the most affordable bike of this model and has a price of 4799$. On the other hand, Yeti SB5+ TURQ XX1 Eagle 2018, is the most expensive and costs 9299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Yeti released this model in 2018, its price was 5199$. Doing a quick comparison, we notice that SB5+ Carbon GX Eagle price is 88.23% higher than the average cost of a Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
SB5+ Carbon GX Eagle weighs 13.61 kg (30 lbs) and is slightly heavier than the average. In conclusion, the average Trail bike weighs 4.85% less than SB5+ Carbon GX Eagle.
SB5+ Carbon GX Eagle components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Performance DPS rear shock model, which has a travel of 127mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Yeti SB5+ Carbon GX Eagle 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB5+ Carbon GX Eagle has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
SB5+ Carbon GX Eagle comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
