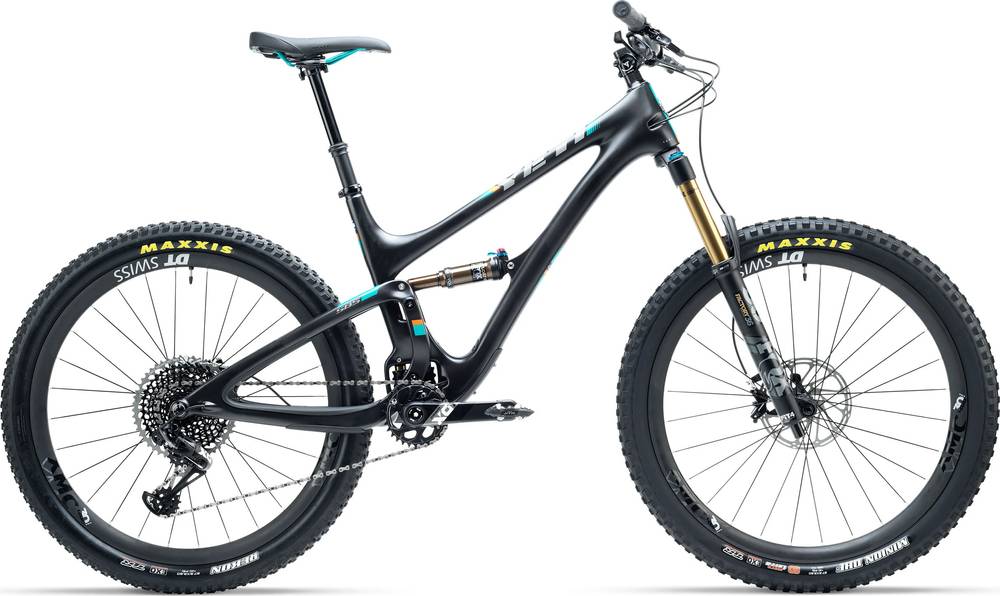

Yeti SB5 — T/Series / Frameset 2020
2020 Mountain
Estimate price |
3,400$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 127mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Rear Shock
FOX FACTORY DPS, 210mm x 50mm
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XS |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.44 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm |
| Front Center | 678.7 mm | 705.3 mm | 731.3 mm | 758.2 mm | 785.6 mm |
| Stack | 582.9 mm | 597.6 mm | 607.7 mm | 623.3 mm | 642.5 mm |
| Reach | 379.9 mm | 400.1 mm | 421.7 mm | 441.8 mm | 460.9 mm |
| Top Tube Length | 550.5 mm | 575.9 mm | 601.3 mm | 626.7 mm | 652.1 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 419.1 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 116 mm | 127 mm | 144 mm | 165 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1113 mm | 1140 mm | 1166 mm | 1193 mm | 1220 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 681 mm | 721 mm | 734 mm | 747 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
SB5 — T/Series / Frameset belongs to the Yeti Sb5 model. 34 frames variations carry this model name so far. Take a sneak peek at all Yeti Sb5 frames models from 2020, by clicking here.
Model range prices
Yeti SB5 Beti — T/Series / Frameset 2020 is the cheapest frame model and costs 3400$. Yeti SB5 — T/Series / Frameset 2020 is the most expensive one and costs 3400$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail frames
Our math shows that the average cost of a dependable Trail frame is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3400$. If we compare this with the average Trail frame cost we notice that the price is 95.85% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB5 — T/Series / Frameset components
Rear Shock
As for the rear shock, this frame has the FOX FACTORY DPS model, with a travel of 127mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
