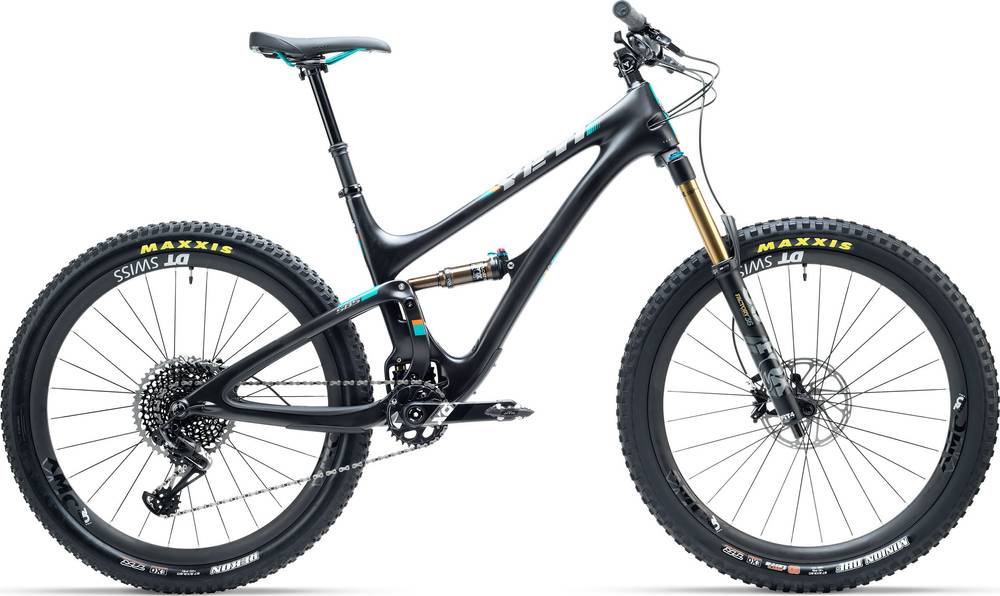

Yeti SB5 — T/Series / LR X01 Race 2019
2019 Mountain
Estimate price |
8,199$
Weight | 12.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 127mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36/160MM
Rear Shock
FOX FACTORY DPX2, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 EAGLE
Shift Levers
SRAM XO1 EAGLE
Cassette
SRAM 1295 EAGLE 10-50
Crank
SRAM X01 CARBON EAGLE 30T
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS XM 1501 SPLINE ONE 30MM
Tires
MAXXIS MINION DHF 2.5
Brakes
Brakes
SRAM CODE RSC
Disk Rotors
SRAM CENTERLINE FRONT 200mm / REAR 180mm
Cockpit
Stem
RACE FACE TURBINE 35X50MM
Handlebar
YETI CARBON 35X800MM
Grips
ERGON GE1
Headset
CANE CREEK 40 INSET
Seat
Saddle
WTB CUSTOM VOLT
Seatpost
FOX TRANSFER 30.9MM / XS-S: 100MM, MD: 125MM, L-XL: 150MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XS |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.44 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm |
| Front Center | 678.7 mm | 705.3 mm | 731.3 mm | 758.2 mm | 785.6 mm |
| Stack | 582.9 mm | 597.6 mm | 607.7 mm | 623.3 mm | 642.5 mm |
| Reach | 379.9 mm | 400.1 mm | 421.7 mm | 441.8 mm | 460.9 mm |
| Top Tube Length | 550.5 mm | 575.9 mm | 601.3 mm | 626.7 mm | 652.1 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 419.1 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 116 mm | 127 mm | 144 mm | 165 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1113 mm | 1140 mm | 1166 mm | 1193 mm | 1220 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 681 mm | 721 mm | 734 mm | 747 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
SB5 — T/Series / LR X01 Race belongs to the Yeti Sb5 model. 34 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Yeti SB5 Beti — C/Series / GX 2019 is the most affordable bike of this model and has a price of 4999$. On the other hand, Yeti SB5 — T/Series / XX1 2019, is the most expensive and costs 8999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8199$. Doing a quick comparison, we notice that SB5 — T/Series / LR X01 Race price is 196.85% more expensive than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 12.45 kg (27.45 lbs), Yeti bike is slightly lighter than average. In conclusion, the average Trail bike weighs 4.26% more than SB5 — T/Series / LR X01 Race.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB5 — T/Series / LR X01 Race components
Fork
The SB5 — T/Series / LR X01 Race comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Yeti SB5 — T/Series / LR X01 Race bike has the FOX FACTORY DPX2 model installed, and has a travel of 127mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The SB5 — T/Series / LR X01 Race 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB5 — T/Series / LR X01 Race has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the SB5 — T/Series / LR X01 Race. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
