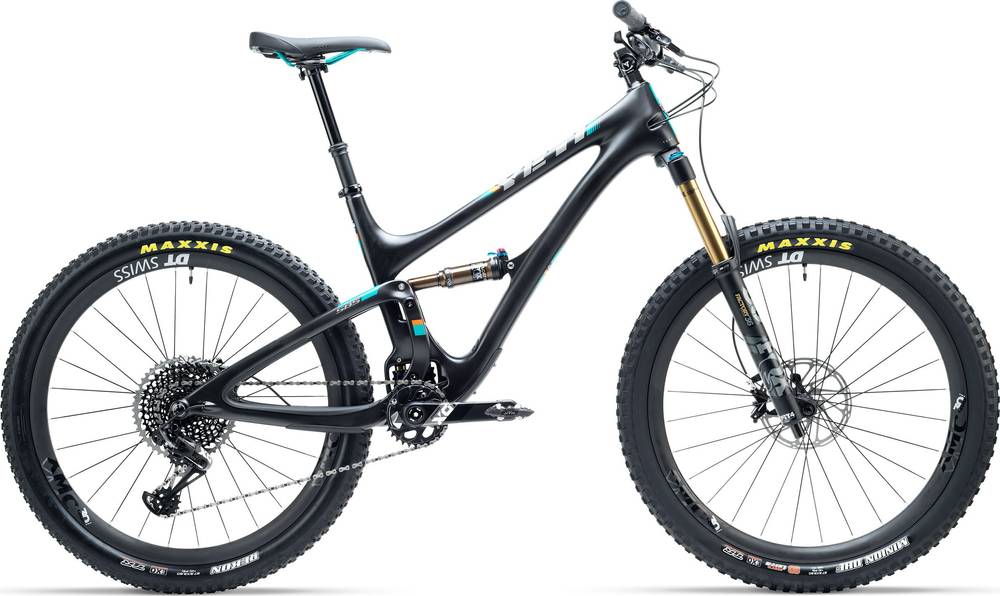

Yeti SB5 — T/Series / X01 2019
2019 Mountain
Estimate price |
6,999$
Weight | 12.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 127mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36/150MM
Rear Shock
FOX FACTORY DPS, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 EAGLE
Shift Levers
SRAM GX EAGLE
Cassette
SRAM 1275 EAGLE 10-50
Crank
SRAM X01 CARBON EAGLE 30T
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS M1700 30MM
Tires
MAXXIS MINION DHF 2.6
Brakes
Brakes
SHIMANO XT 2 PISTON
Disk Rotors
SHIMANO 180mm
Cockpit
Stem
RACE FACE TURBINE BASIC 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ERGON GE1
Headset
CANE CREEK 40 INSET
Seat
Saddle
WTB CUSTOM VOLT
Seatpost
FOX TRANSFER 30.9MM / XS-S: 100MM, MD: 125MM, L-XL: 150MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XS |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.44 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm |
| Front Center | 678.7 mm | 705.3 mm | 731.3 mm | 758.2 mm | 785.6 mm |
| Stack | 582.9 mm | 597.6 mm | 607.7 mm | 623.3 mm | 642.5 mm |
| Reach | 379.9 mm | 400.1 mm | 421.7 mm | 441.8 mm | 460.9 mm |
| Top Tube Length | 550.5 mm | 575.9 mm | 601.3 mm | 626.7 mm | 652.1 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 419.1 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 116 mm | 127 mm | 144 mm | 165 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1113 mm | 1140 mm | 1166 mm | 1193 mm | 1220 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 681 mm | 721 mm | 734 mm | 747 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
SB5 — T/Series / X01 is part of the Yeti Sb5 model. Yeti launched 34 bikes of this model so far. Take a sneak peek at all Yeti Sb5 bikes models from 2019, by clicking here.
Model range prices
Yeti SB5 Beti — C/Series / GX 2019 is the most affordable bike of this model and has a price of 4999$. On the other hand, Yeti SB5 — T/Series / XX1 2019, is the most expensive and costs 8999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Yeti SB5 — T/Series / X01 price was 6999$. Comparing this to the average Trail bike price, we see that the price is 153.4% more expensive.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Yeti SB5 — T/Series / X01 it’s weighing 12.18 kg (26.85 lbs). At this weight, is a bit lighter than average. In other words, this model is 6.57% lighter than the average Trail bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Yeti SB5 — T/Series / X01 bike has the FOX FACTORY DPS model installed, and has a travel of 127mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the SB5 — T/Series / X01 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Yeti SB5 — T/Series / X01 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Yeti SB5 — T/Series / X01 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
