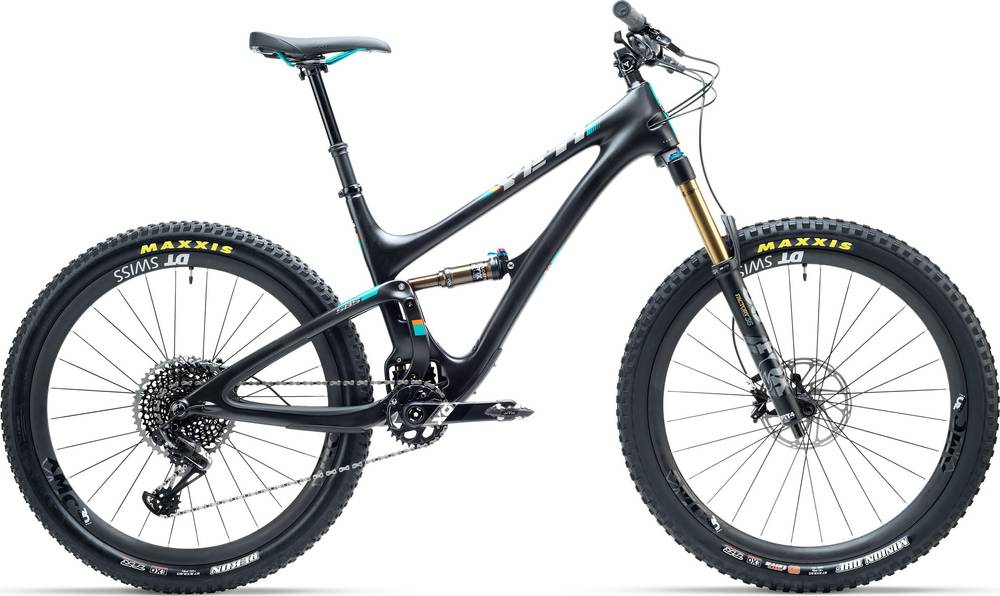

Yeti SB5 — T/Series / X01 Race 2019
2019 Mountain
Estimate price |
7,999$
Weight | 11.91 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 127mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36/150MM
Rear Shock
FOX FACTORY DPS, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 EAGLE
Shift Levers
SRAM X01 EAGLE
Cassette
SRAM 1295 EAGLE 10-50
Crank
SRAM X01 CARBON EAGLE 30T
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS XM 1501 SPLINE ONE 30MM
Tires
MAXXIS MINION DHF 2.6
Brakes
Brakes
SRAM GUIDE RSC
Disk Rotors
SRAM CENTERLINE 180mm
Cockpit
Stem
RACE FACE TURBINE 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ERGON GE1
Headset
CANE CREEK 40 INSET
Seat
Saddle
WTB CUSTOM VOLT
Seatpost
FOX TRANSFER 30.9MM / XS-S: 100MM, MD: 125MM, L-XL: 150MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XS |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.44 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm |
| Front Center | 678.7 mm | 705.3 mm | 731.3 mm | 758.2 mm | 785.6 mm |
| Stack | 582.9 mm | 597.6 mm | 607.7 mm | 623.3 mm | 642.5 mm |
| Reach | 379.9 mm | 400.1 mm | 421.7 mm | 441.8 mm | 460.9 mm |
| Top Tube Length | 550.5 mm | 575.9 mm | 601.3 mm | 626.7 mm | 652.1 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 419.1 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 116 mm | 127 mm | 144 mm | 165 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1113 mm | 1140 mm | 1166 mm | 1193 mm | 1220 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 681 mm | 721 mm | 734 mm | 747 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
SB5 — T/Series / X01 Race belongs to the Yeti Sb5 model. Yeti launched 34 bikes of this model so far. You can easily view all of the Yeti Sb5 bikes models from 2019, here.
Model range prices
Yeti SB5 Beti — C/Series / GX 2019 is the cheapest bike model and costs 4999$. Yeti SB5 — T/Series / XX1 2019 is the most expensive one and costs 8999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. Doing a quick comparison, we notice that SB5 — T/Series / X01 Race price is 189.61% higher than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 11.91 kg (26.26 lbs), the SB5 — T/Series / X01 Race model is a bit lighter than average. In short, the average Trail bike weight is 8.98% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB5 — T/Series / X01 Race components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX FACTORY DPS model, with a travel of 127mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The SB5 — T/Series / X01 Race 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SB5 — T/Series / X01 Race has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
