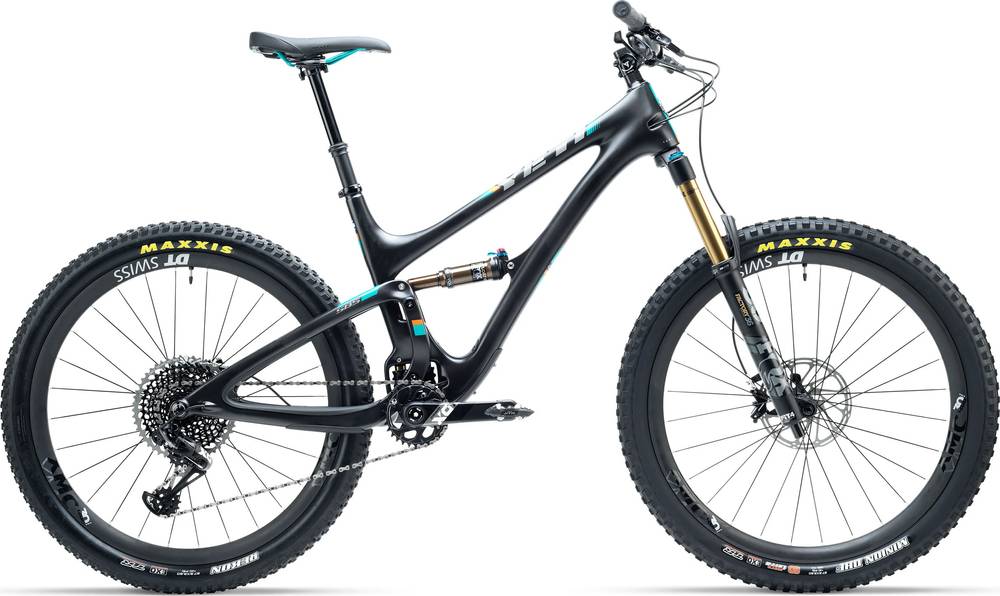

Yeti SB5 — T/Series / X01 Race 2020
2020 Mountain
Estimate price |
7,999$
Weight | 11.91 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 127mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36/150MM
Rear Shock
FOX FACTORY DPS, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 EAGLE
Shift Levers
SRAM X01 EAGLE
Cassette
SRAM 1295 EAGLE 10-50
Crank
SRAM X01 CARBON EAGLE 30T
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS XM 1501 SPLINE ONE 30MM
Tires
MAXXIS MINION DHF 2.6
Brakes
Brakes
SRAM GUIDE RSC
Disk Rotors
SRAM CENTERLINE 180mm
Cockpit
Stem
RACE FACE TURBINE 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ERGON GE1
Headset
CANE CREEK 40 INSET
Seat
Saddle
WTB CUSTOM VOLT
Seatpost
FOX TRANSFER 30.9MM / XS-S: 100MM, MD: 125MM, L-XL: 150MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XS |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.44 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm | 337.8 mm |
| Front Center | 678.7 mm | 705.3 mm | 731.3 mm | 758.2 mm | 785.6 mm |
| Stack | 582.9 mm | 597.6 mm | 607.7 mm | 623.3 mm | 642.5 mm |
| Reach | 379.9 mm | 400.1 mm | 421.7 mm | 441.8 mm | 460.9 mm |
| Top Tube Length | 550.5 mm | 575.9 mm | 601.3 mm | 626.7 mm | 652.1 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.6 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 419.1 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 116 mm | 127 mm | 144 mm | 165 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1113 mm | 1140 mm | 1166 mm | 1193 mm | 1220 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 681 mm | 721 mm | 734 mm | 747 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model
SB5 — T/Series / X01 Race is a Yeti Sb5 model. There are 34 bikes that carry this model name. You can easily view all of the Yeti Sb5 bikes models from 2020, here.
Model range prices
Yeti SB5 Beti — C/Series / GX 2020 is the cheapest bike model and costs 4999$. Yeti SB5 — T/Series / XX1 2020 is the most expensive one and costs 8999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 7999$. Comparing the average cost of a Trail bike to this one, you will see that SB5 — T/Series / X01 Race price is 189.61% higher.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, SB5 — T/Series / X01 Race has a weight of 11.91 kg (26.26 lbs). To sum up, it’s 8.98% lighter than the average weight of Trail bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB5 — T/Series / X01 Race components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX FACTORY DPS rear shock model, which has a travel of 127mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the SB5 — T/Series / X01 Race model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yeti SB5 — T/Series / X01 Race is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the SB5 — T/Series / X01 Race. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
