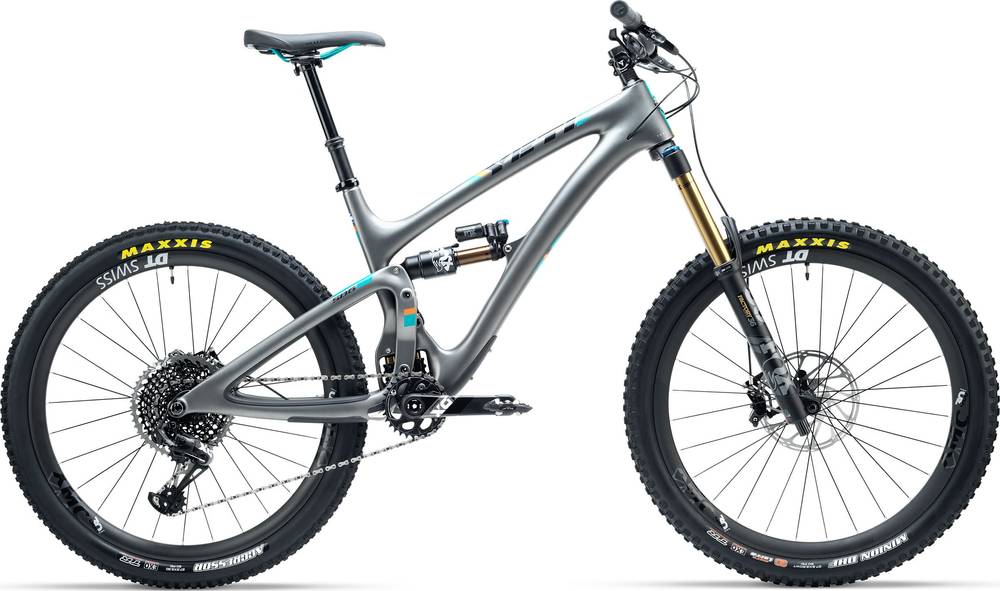

Yeti SB6 — T/Series / Frameset 2019
2019 Mountain
Estimate price |
3,800$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 152mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Rear Shock
FOX FACTORY X2, 8.5” X 2.5”
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XS |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.49 mm | 1.44 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 350 mm | 349.9 mm | 349.9 mm | 349.7 mm | 349.6 mm |
| Front Center | 690.1 mm | 717.5 mm | 744.2 mm | 771.6 mm | 799.6 mm |
| Stack | 577.2 mm | 592.3 mm | 602.5 mm | 617.6 mm | 637.7 mm |
| Reach | 375.7 mm | 396.2 mm | 418.4 mm | 438.9 mm | 457.7 mm |
| Top Tube Length | 552.4 mm | 577.8 mm | 603.2 mm | 628.7 mm | 654.1 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 72.9 ° |
| Seat Tube Length | 381 mm | 419.1 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 64.94 ° | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 93.5 mm | 110 mm | 121 mm | 137.5 mm | 159.5 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1130 mm | 1157 mm | 1184 mm | 1211 mm | 1239 mm |
| Bottom Bracket Drop | 5 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 758 mm | 761 mm | 762 mm | 763 mm | 762 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
SB6 — T/Series / Frameset completes the Yeti Sb6 model. Yeti released 17 frames variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro frames average price
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 3800$. In conclusion, this frame price is 100.53% higher than the price of the average Enduro frame.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Rear Shock
The SB6 — T/Series / Frameset has a rear shock with a travel of 152mm. The model FOX FACTORY X2 is the one installed in this frame. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
