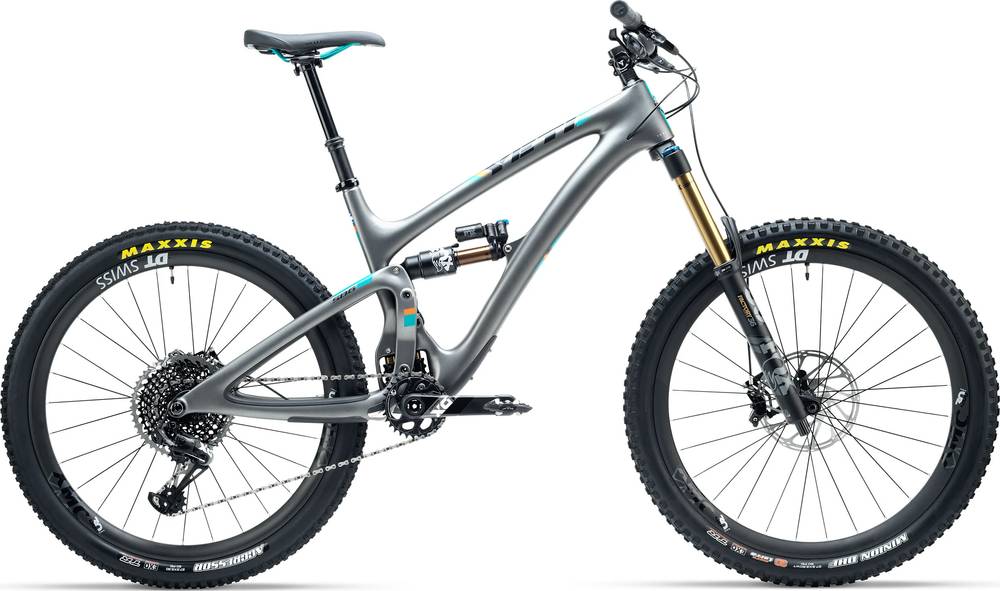

Yeti SB6 — T/Series / Frameset 2020
2020 Mountain
Estimate price |
3,800$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 152mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Rear Shock
FOX FACTORY X2, 8.5” X 2.5”
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XS |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.49 mm | 1.44 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 350 mm | 349.9 mm | 349.9 mm | 349.7 mm | 349.6 mm |
| Front Center | 690.1 mm | 717.5 mm | 744.2 mm | 771.6 mm | 799.6 mm |
| Stack | 577.2 mm | 592.3 mm | 602.5 mm | 617.6 mm | 637.7 mm |
| Reach | 375.7 mm | 396.2 mm | 418.4 mm | 438.9 mm | 457.7 mm |
| Top Tube Length | 552.4 mm | 577.8 mm | 603.2 mm | 628.7 mm | 654.1 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 72.9 ° |
| Seat Tube Length | 381 mm | 419.1 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 64.94 ° | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 93.5 mm | 110 mm | 121 mm | 137.5 mm | 159.5 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1130 mm | 1157 mm | 1184 mm | 1211 mm | 1239 mm |
| Bottom Bracket Drop | 5 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 758 mm | 761 mm | 762 mm | 763 mm | 762 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model
SB6 — T/Series / Frameset is part of the Yeti Sb6 model. Yeti launched 17 frames of this model so far. Take a sneak peek at all Yeti Sb6 frames models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro frames average price
According to our calculations, the average cost of an Enduro frame that is reliable is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2020 and its price was 3800$. Doing a quick comparison, we notice that SB6 — T/Series / Frameset price is 100.53% more expensive than the average cost of an Enduro frame.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Rear Shock
Yeti SB6 — T/Series / Frameset frame has the FOX FACTORY X2 model installed, and has a travel of 152mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
