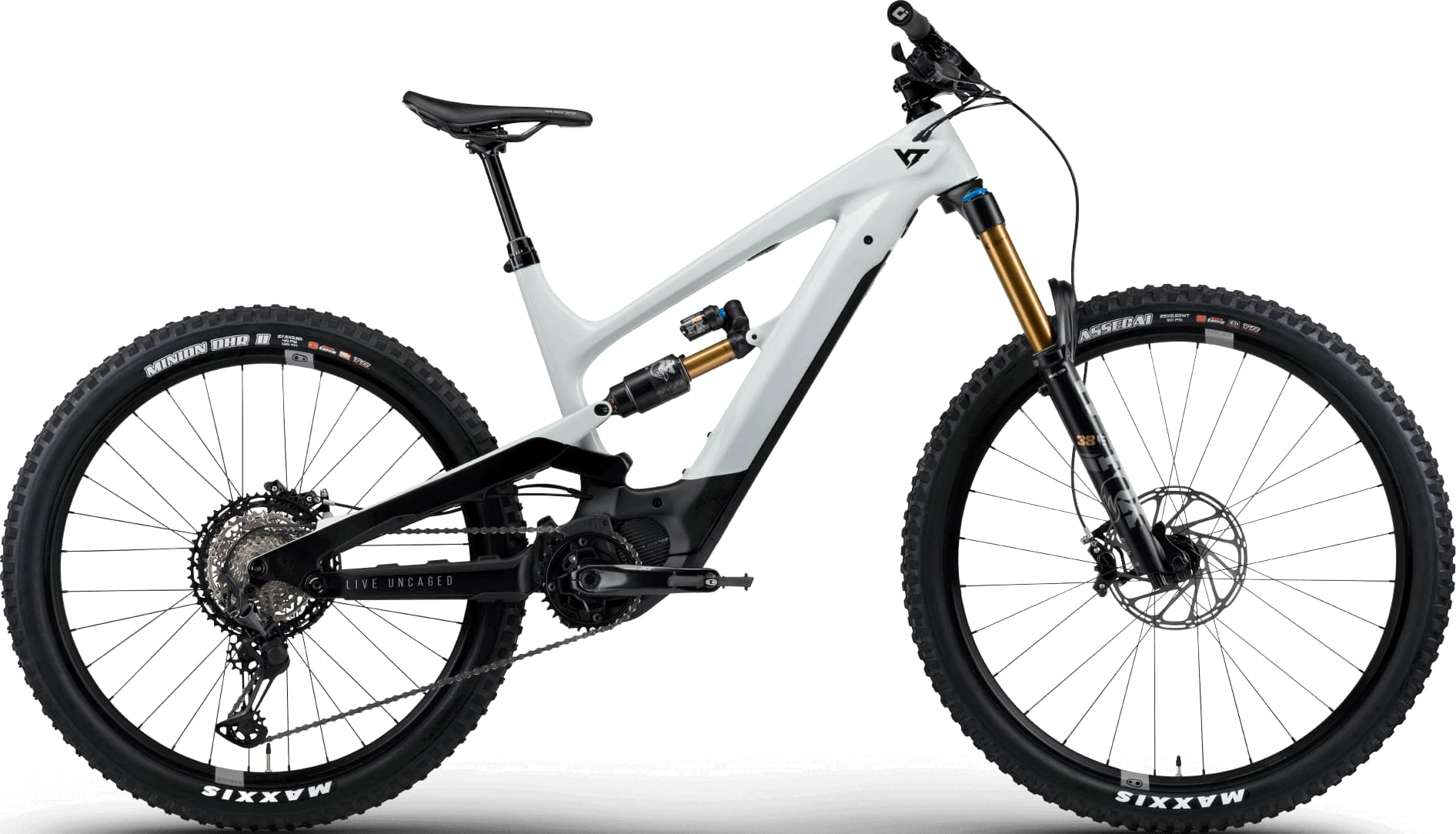

yt Industries Decoy CORE 4 MX 2022
2022 E-bike
Estimate price |
8,724$
Weight | 21.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SMP YT CUSTOM, Removable | 540 Wh Capacity | 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
163cm - 174cm
LG
171cm - 183cm
XL
180cm - 192cm
XXL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
FOX 38 FLOAT FACTORY E-BIKE+, 29“ | 170 mm Travel | 110 x 15 mm Axle | 51mm OffsetGrip2 Damper, Adjustable High- and Low-Speed Compression and Rebound, Air Pressure, Kashima Coating
Rear Shock
FOX FLOAT X2 FACTORY, Shock Length: 230 mm | Shock Stroke: 65 mm ? 165 mm Travel | w/2-Pos Lever 2-way Adjustable Low-Speed Compression, Adjustable High-Speed Compression, High- and Low-Speed Rebound, Air Pressure, Kashima Coating
Drivetrain
Rear Derailleur
SHIMANO XT, M8100 | Shadow Plus | 12-fach
Shift Levers
SHIMANO XT, M8100 | 12-speed I 2-Way-Release
Cassette
SHIMANO XT, M8100 | 10-51T | 12-speed I Hyperglide+
Crank
SHIMANO XT, M8150 | Crank Arm Length 160 mm | HOLLOWTEC
Bottom Bracket
BSA, 73mm, threaded
Chain Guide
E13 e*SPEC Plus, 2 Bolt | 34-38T | Compact Slider
Wheels
Rims
CRANKBROTHERS SYNTHESIS ALLOY E-MTB I9 1/1, Front: Aluminum Rim 29“ | Inner Width 31,5 mm | Front Hub 110 x 15 mm | Rear: Aluminum Rim 27,5“ | Inner Width 31,5 mm | Rear Hub 148 x 12 mm | Freehub I9 1/1 Microspline
Tires
FRONT: MAXXIS ASSEGAI | REAR: MAXXIS MINION DHR II, Front: Tire Size 29“ x 2.5 WT | EXO Casing | 3C MaxxTerra Compound | Tubeless Ready Rear: Tire Size 27,5“ x 2.6 WT | EXO+ Casing | 3C MaxxTerra Compound | Tubeless Ready
Brakes
Brakes
SRAM CODE RSC, Rotor CENTERLINE Ø front 200 mm / rear 200 mm Adjustable Bite Point and Reach
Cockpit
Stem
RENTHAL APEX 35, Length 50 mm | 35 mm Clamp | Rise +/-6°
Handlebar
RENTHAL FATBAR 35, Rise 30 mm | Width 800 mm | 7° Back Sweep | 5° Up Sweep
Grips
ODI ELITE MOTION V2.1, Lock On
Headset
ACROS AZX-260, Block Lock I High Cap I 2 Spacer 5 mm I Flatcapset
Seat
Saddle
SDG BEL Air 3.0, YT Custom | Width 140 mm I Lux-Alloy Rail
Seatpost
YT POSTMAN, Ø 31.6 mm | 125 mm Drop (Frame Size S-M) | 150 mm Drop (Frame Size L) | 170 mm Drop (Frame Size XL-XXL) | MMX-Remote
Motor & Battery
Motor
SHIMANO EP8, Torque 85 NM | Power 250 W I E-TUBE PROJECT APP
Battery
SMP YT CUSTOM, Removable | 540 Wh Capacity | 36 V
Remote
SHIMANO E7000, Monochrome I 35 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.526 mm | 1.466 mm | 1.41 mm | 1.371 mm | 1.333 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 749 mm | 771 mm | 793 mm | 817 mm | 842 mm |
| Rake | 45 mm | 45 mm | 45 mm | 44 mm | 45 mm |
| Trail | 129 mm | 129 mm | 129 mm | 130 mm | 129 mm |
| Stack | 624 mm | 629 mm | 633 mm | 643 mm | 652 mm |
| Reach | 409 mm | 429 mm | 449 mm | 469 mm | 489 mm |
| Top Tube Length | 569 mm | 591 mm | 612 mm | 635 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1191 mm | 1213 mm | 1235 mm | 1259 mm | 1284 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 752 mm | 738 mm | 724 mm | 714 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 171 cm | 180 cm | 189 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
Model Overview
Decoy CORE 4 MX is part of the Yt E Decoy model. 42 e-bikes variations carry this model name so far. You can easily view all of the Yt E Decoy e-bikes models from 2022, here.
Model range prices
YT Industries Decoy CORE 2 29 2022 is the most affordable e-bike of this model and has a price of 5626$. On the other hand, YT Industries Decoy CORE 4 MX 2022, is the most expensive and costs 7962$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 7962$. Comparing this to the average Enduro e-bike price, we see that the price is 66.39% more expensive.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 21.7 kg (47.84 lbs), the Decoy CORE 4 MX model is a bit lighter than average. To sum up, it’s 7.93% lighter than the average weight of Enduro e-bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT X2 FACTORY model, with a travel of 165mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Decoy CORE 4 MX e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
YT Industries Decoy CORE 4 MX e-bike has 5 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
