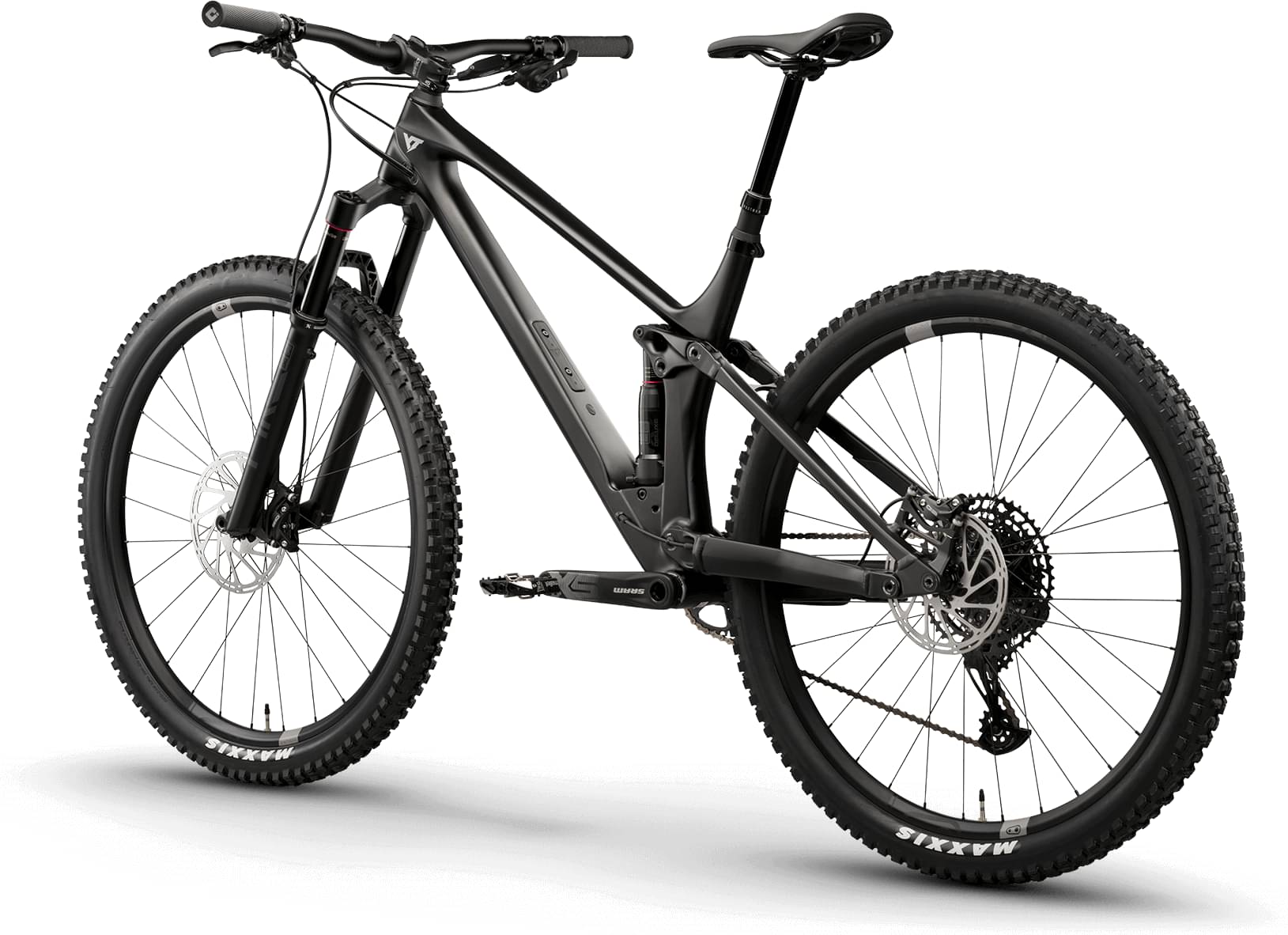

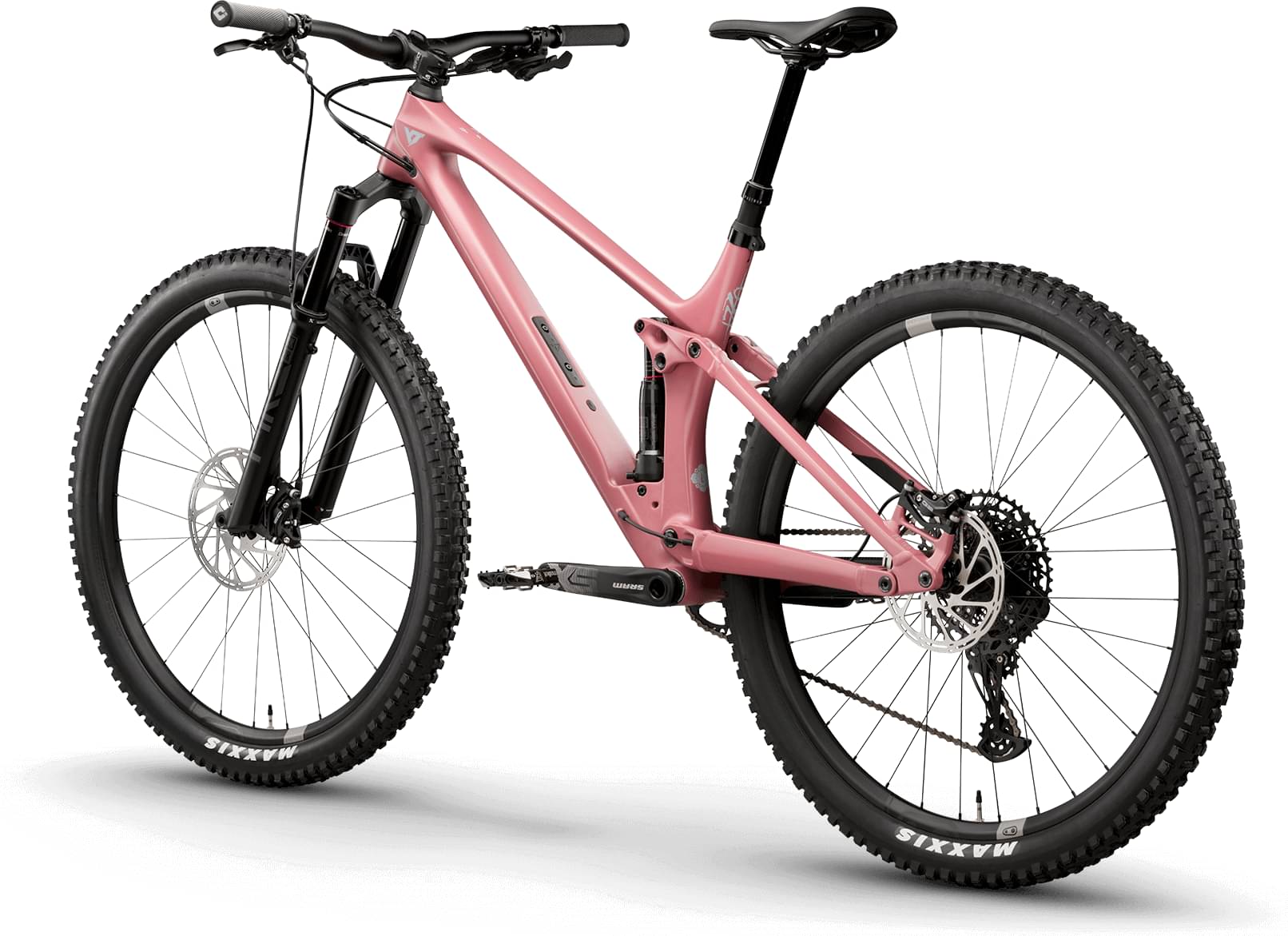

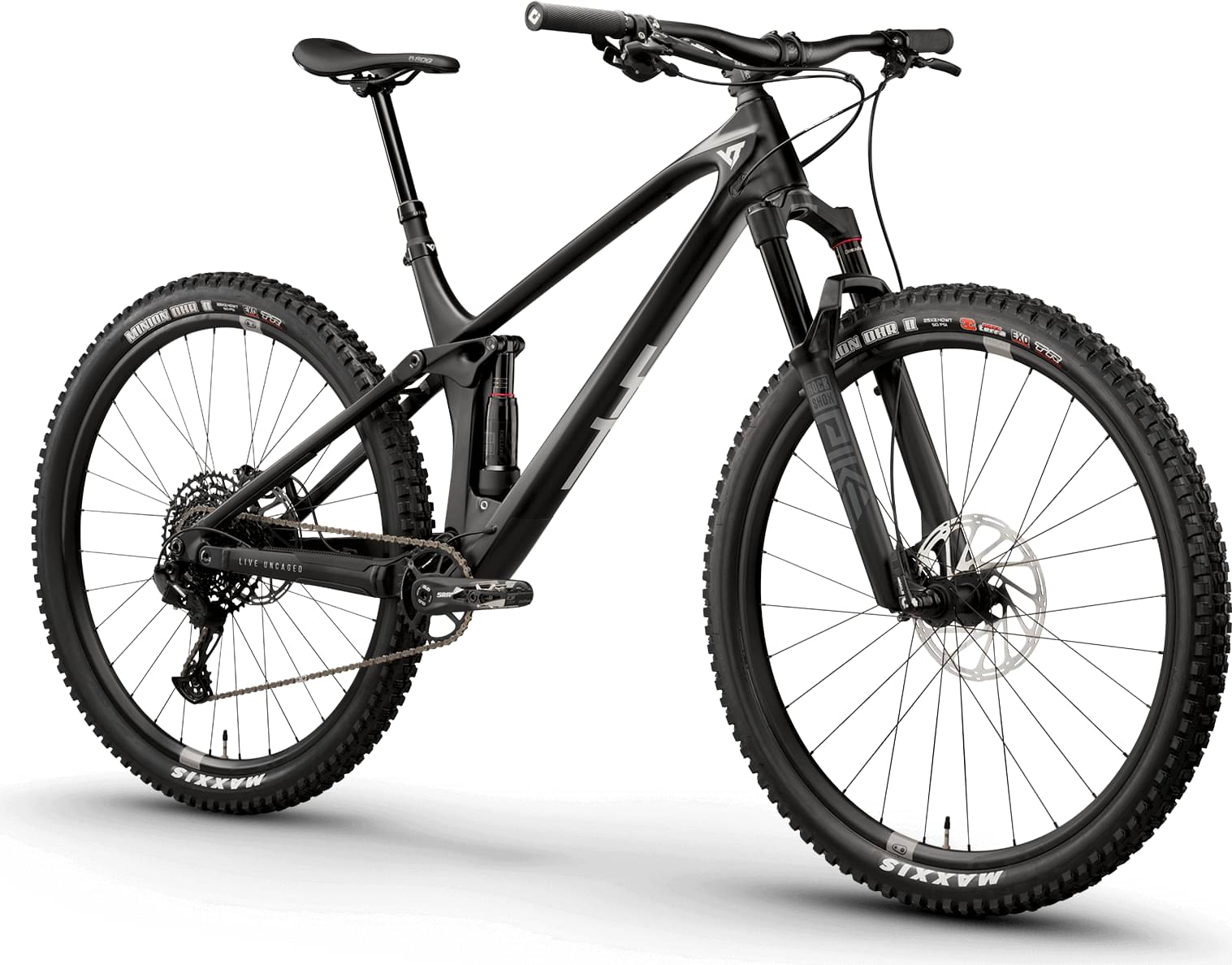

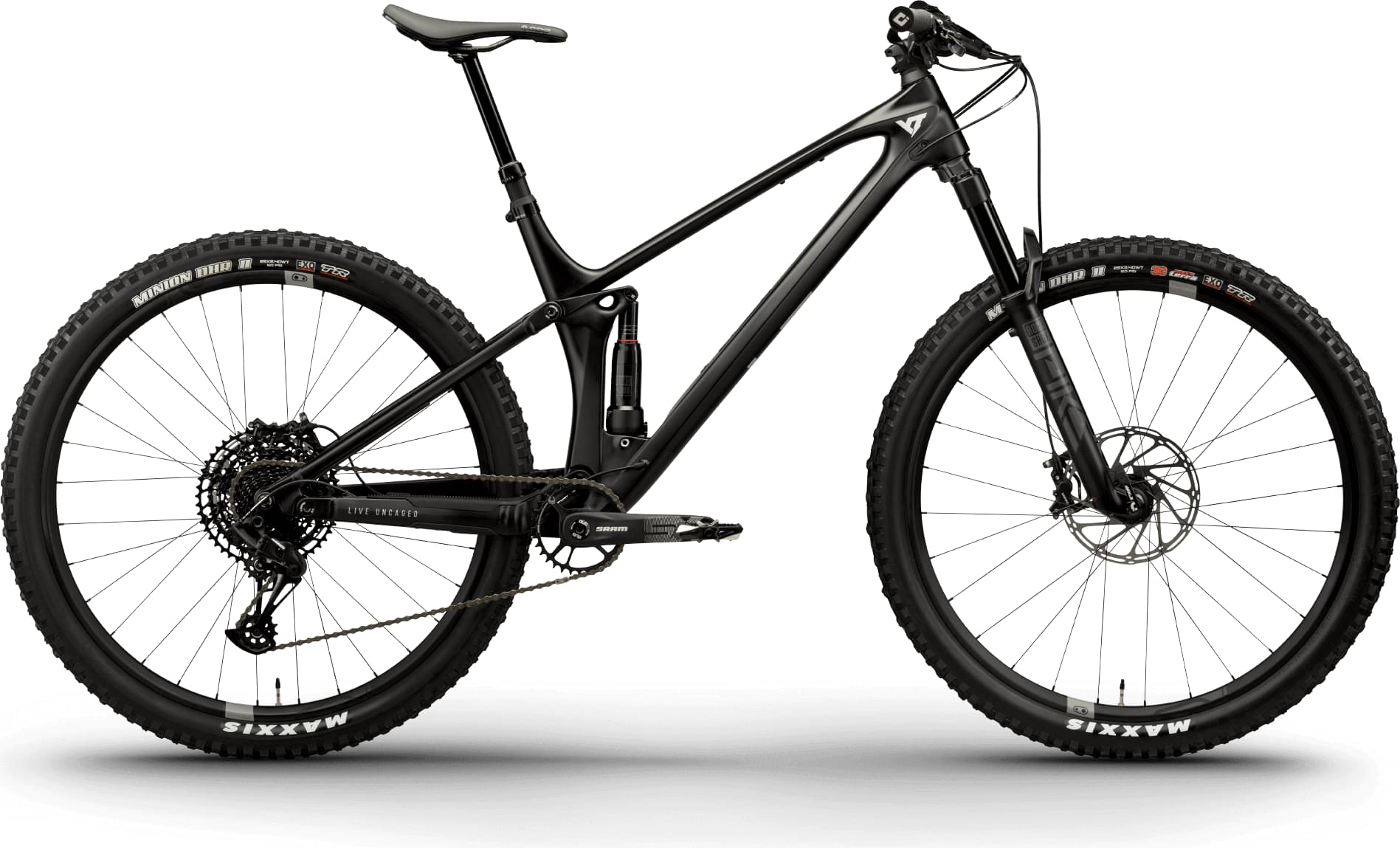

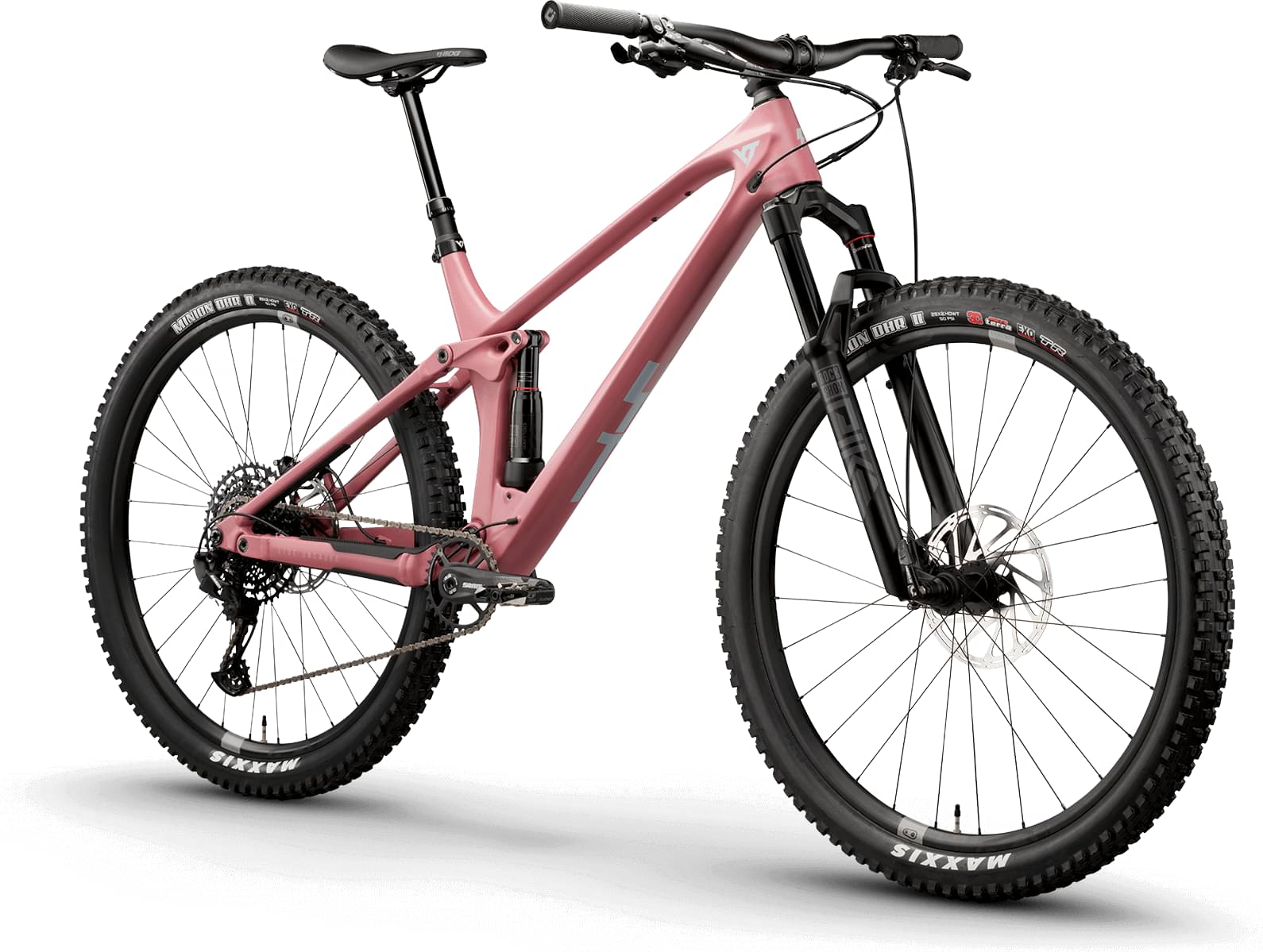

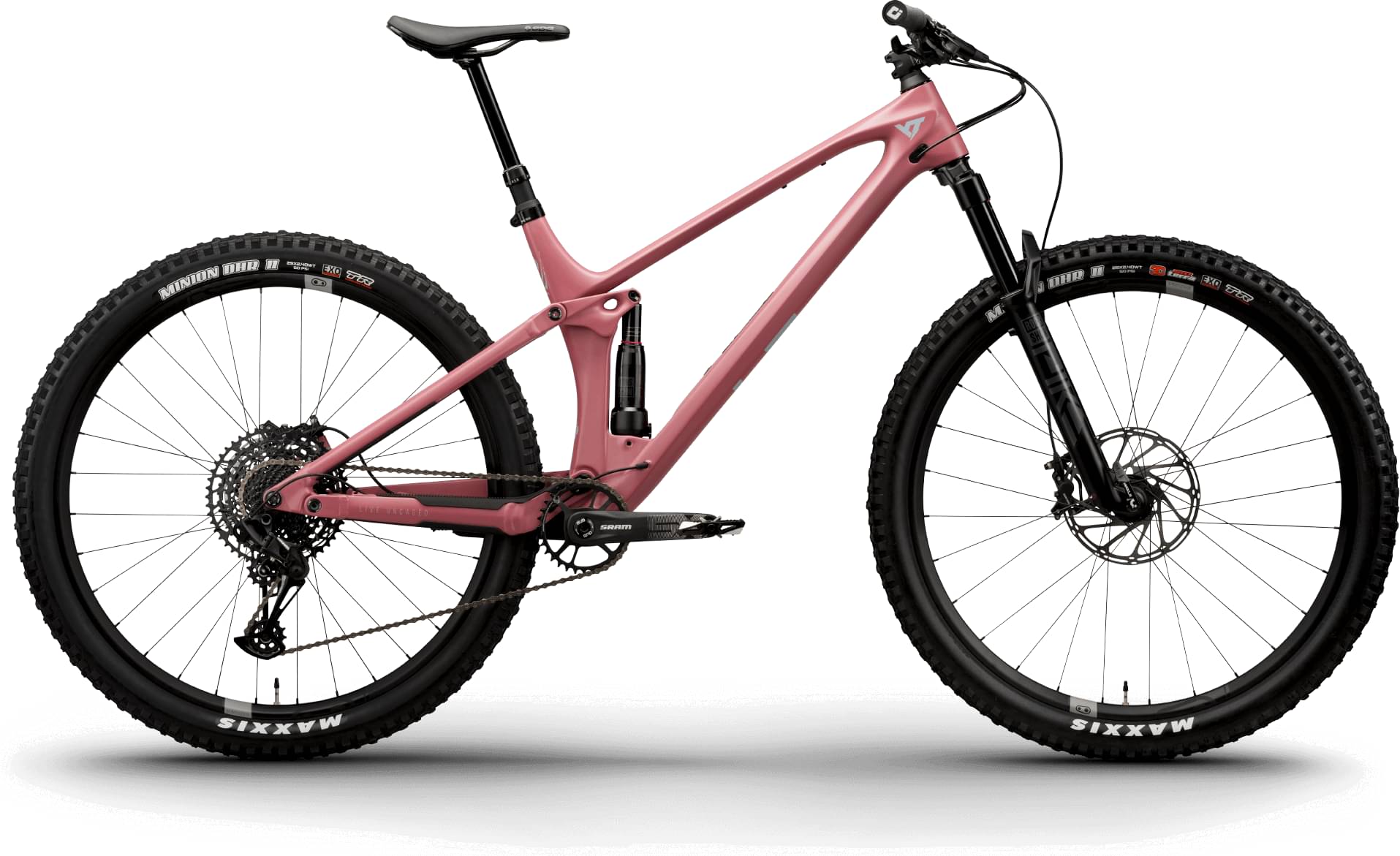

yt Industries Izzo CORE 1 29 2023
2023 Mountain
Estimate price |
3,489$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Pike RC
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 168cm
MD
166cm - 178cm
LG
175cm - 186cm
XL
184cm - 194cm
XXL
192cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike, 29“ | 130 mm | Rush RC | 15 mm QR x 110 mm | 44 mm Offset
Rear Shock
RockShox Deluxe Select, 210 x 55 mm | R | DebonAir+ | 0L1 Spacer
Drivetrain
Rear Derailleur
SRAM SX EAGLE, 12-speed
Shift Levers
SRAM SX EAGLE, 12-speed
Cassette
SRAM XG 1210 Eagle, 11-50T | 12-speed
Crank
SRAM SX EAGLE, Crank Arm Length 170 mm (S), 175 mm (M-XXL) | 32T | DUB
Bottom Bracket
SRAM DUB Pressfit, BB DUB PF 92 MTB
Wheels
Rims
CRANKBROTHERS SYNTHESIS XCT ALLOY 2, Aluminium rims 29” | Front: Inner Width 26.5mm | 110 x 15mm | 6-Bolt, Rear: Inner Width 24.5mm | 148 x 12mm | 6-Bolt | Freehub HG
Tires
MAXXIS MINION DHR II, Front: 29’’ x 2.4 WT I 3C MaxxTerra I EXO I TR, Rear: 29’’ x 2.4 WT I Dual Compound I EXO I TR
Brakes
Brakes
SRAM G2 R, Rotor CENTERLINE Ø front 200 mm / rear 180 mm | Adjustable Reach
Cockpit
Stem
RACE FACE AEFFECT R 35, Length 50 mm (S-M), 60 mm (L-XXL) | 35 mm Clamp | Rise +/-6°
Handlebar
RACE FACE AEFFECT R 35, Width 780 mm | Rise 20 mm | 9° Back Sweep | 5° Up Sweep | 7075 AL
Grips
ODI ELITE MOTION V2.1, Lock On
Headset
ACROS AZX, 586 Block Lock (S-M), 576 (L-XXL) I 2 Spacer 5 mm
Seat
Saddle
SDG BEL AIR Overland 3.0, YT Custom | Width 140 mm I Lux-Alloy Rail
Seatpost
YT POSTMAN V2, Ø 31,6mm I MMX-Remote | Adjustable drop 25/10/5mm | 100 mm (S) I 125 mm (M) | 150 mm (L) | 170 mm (XL) | 200mm (XXL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.406 mm | 1.36 mm | 1.316 mm | 1.291 mm | 1.255 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 728 mm | 753 mm | 779 mm | 805 mm | 830 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 121 mm | 121 mm | 121 mm | 122 mm | 122 mm |
| Stack | 603 mm | 612 mm | 621 mm | 635 mm | 644 mm |
| Reach | 429 mm | 450 mm | 472 mm | 492 mm | 513 mm |
| Top Tube Length | 566 mm | 591 mm | 616 mm | 641 mm | 666 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 425 mm | 450 mm | 475 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 437 mm | 437 mm |
| Wheelbase | 1158 mm | 1183 mm | 1209 mm | 1240 mm | 1265 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 734 mm | 727 mm | 721 mm | 716 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 166 cm | 175 cm | 184 cm | 192 cm |
| Rider Max Height | 168 cm | 178 cm | 186 cm | 194 cm | 204 cm |
About this model
Izzo CORE 1 29 completes the Yt Izzo model. 24 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
YT Industries Izzo CORE 1 29 2023 is the most economical model, with a starting price of 3176$. YT Industries Izzo UNCAGED 7 29 2023 on the other hand costs 7499$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3176$. Comparing the average cost of a Trail bike to this one, you will see that Izzo CORE 1 29 price is 14.99% higher.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.6 kg (32.19 lbs), YT Industries bike is considerably heavier than average. To sum up, it’s 12.48% heavier than the average weight of Trail bikes.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike RC model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Izzo CORE 1 29 has a rear shock with a travel of 130mm. The model RockShox Deluxe Select is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Izzo CORE 1 29 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Izzo CORE 1 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 204 cm (5.12 ft – 6.69 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Izzo CORE 1 29. Therefore, climbing or descending will be a breeze.
