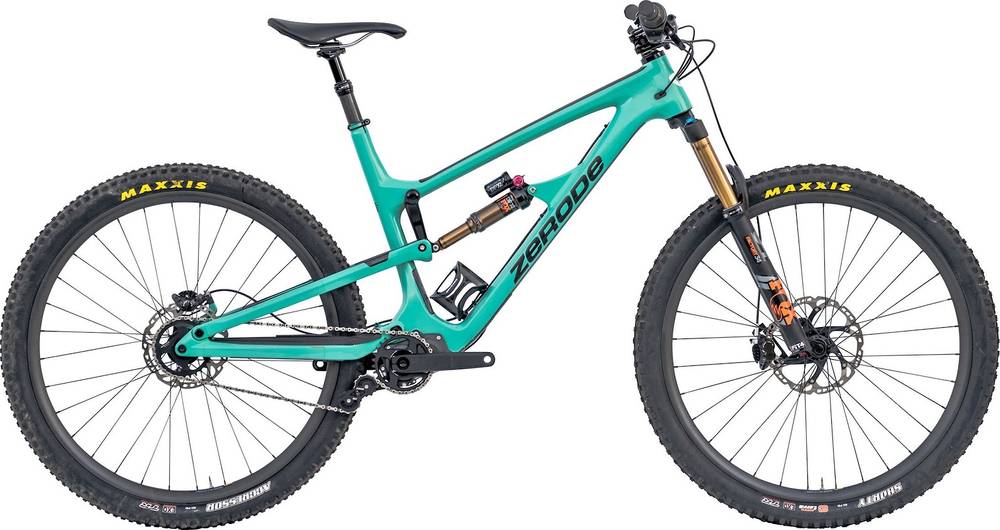

Zerode Katipo Trail Standard 2020
2020 Mountain
Estimate price |
6,825$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike Select
-
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Pike Select
Rear Shock
FOX FLOAT X2 Factory, 230mm x 60mm, 2-position lever, Kashima
Drivetrain
Rear Derailleur
N/A
Front Derailleur
Pinion C.Line gear box, 9-speed or 12-speed
Shift Levers
Pinion
Cassette
Zerode, singlespeed, direct mount
Crank
Pinion, forged
Bottom Bracket
N/A
Chain Guide
Pinion, tensioner
Pedals
None
Wheels
Front Hub
Stan's NoTubes Neo
Rear Hub
Stan's NoTubes Neo
Rims
Stan's NoTubes Arch MK3
Spokes
Standard double butted with brass nipples
Tires
Front: Maxxis Minion DHF, Rear: Maxxis Minion DHR II
Brakes
Brakes
Magura MT Trail Sport, Magura Storm HC rotors
Brake Levers
Magura MT Trail Sport
Cockpit
Stem
Race Face Aeffect R
Handlebar
Race Face Aeffect R
Grips
ESI Chunky
Headset
Cane Creek 40
Seat
Saddle
WTB Comp
Seatpost
BikeYoke Revive
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | XL |
|---|---|---|
| Stack Reach Ratio | 1.27 mm | 1.22 mm |
| Bottom Bracket Height | 345 mm | 345 mm |
| Front Center | 797 mm | 831 mm |
| Rake | 49 mm | 49 mm |
| Trail | 121 mm | 121 mm |
| Stack | 595 mm | 604 mm |
| Reach | 467 mm | 497 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm |
| Wheelbase | 1232 mm | 1266 mm |
| Bottom Bracket Drop | 29 mm | 29 mm |
| Wheels | 29" | 29" |
Model Overview
Katipo Trail Standard is a Zerode Katipo model. Zerode launched 9 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Zerode Katipo Trail Standard 2020 is the most affordable bike of this model and has a price of 6825$. On the other hand, Zerode Katipo Trail Signature 2020, is the most expensive and costs 8645$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 6825$. Comparing this to the average Trail bike price, we see that the price is 147.1% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike Select model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT X2 Factory, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Katipo Trail Standard model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
