Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Suspension Full -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Factory, Kashima coating
Rear Shock
FOX FLOAT X2 Factory, Kashima coating, 230mm x 65mm
Drivetrain
Shift Levers
Pinion rotary, 9-speed or 12-speed
Cassette
Single cog belt drive
Crank
Pinion
Bottom Bracket
Pinion C-Line gearbox
Chain
Belt
Chain Guide
Tensioner
Pedals
None
Wheels
Front Hub
Novatec, 110x15mm Boost front, 142x12mm rear with 120 points of engagement
Rear Hub
Novatec, 110x15mm Boost front, 142x12mm rear with 120 points of engagement
Rims
Stan's NoTubes Flow MK3, 32 hole
Tires
Maxxis
Brakes
Brakes
Magura MT5, 2-piston, 6-bolt rotors (200mm front, 180mm rear)
Brake Levers
Magura MT5
Cockpit
Stem
Zerode, 45mm length
Handlebar
Zerode Z-Bar Carbon
Grips
Zerode, lock-on
Headset
Cane Creek 40, 44mm upper, 56mm lower
Seat
Saddle
Velo
Seatpost
BikeYoke Revive, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | XL |
|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.23 mm |
| Bottom Bracket Height | 349 mm | 349 mm |
| Front Center | 802 mm | 836 mm |
| Rake | 37 mm | 37 mm |
| Trail | 141 mm | 141 mm |
| Stack | 602 mm | 610 mm |
| Reach | 467 mm | 497 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° |
| Seat Tube Length | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm |
| Wheelbase | 1237 mm | 1271 mm |
| Bottom Bracket Drop | 25 mm | 25 mm |
| Wheels | 29" | 29" |
Model Overview

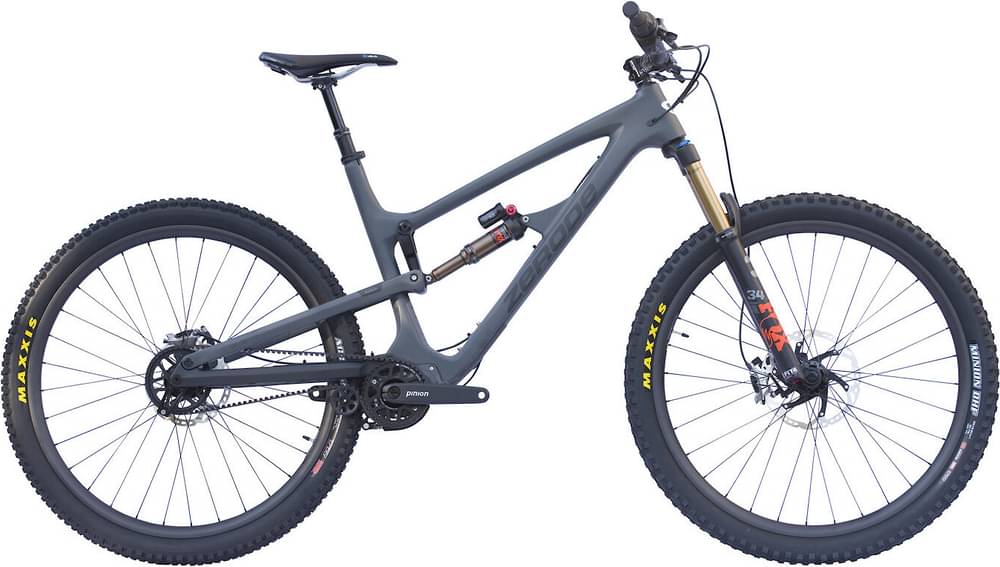

Katipo Voyager is a Zerode Katipo model. There are 9 bikes that carry this model name. You can easily view all of the Zerode Katipo bikes models from 2021, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Katipo Voyager components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX FLOAT X2 Factory model, with a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Katipo Voyager are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Katipo Voyager. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
