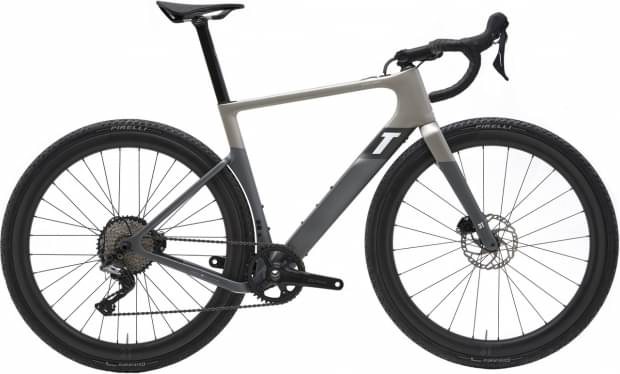

3T Exploro RaceMax BOOST Dropbar 2023
2023 E-bike
Estimate price |
5,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery 250 Wh hidden battery included. Optional second battery available under the downtube (both front triangle cages remain available for water bottles) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro RaceMax - BOOST
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
Shimano GRX - long cage mechanical (RX-812)
Front Derailleur
none
Shift Levers
Shimano GRX
Cassette
11-speed Powerglide, 11-42T
Crank
Shimano GRX, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
3T Discus 45 | 40, tubless ready
Tires
Pirelli Cinturato Gravel M, 700c, 37mm WAM, tubeless-ready or Panaracer GravelKing TLC, 700c, 41mm WAM, tubeless-ready
Brakes
Brakes
Shimano GRX Flat Mount Hydraulic Disc w/ Shimano 160 mm 6-bolt rotor
Cockpit
Stem
3T Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Headset
3T MinMax custom by Cane Creek IS42/28.6 + IS 47/38
Seat
Seatpost
New 3T Charlie Sqaero Team w/ Ritchey WCS Clamp
Motor & Battery
Motor
Mahle ebikemotion X35 System for natural power support up to 250W in super light package
Battery
250 Wh hidden battery included. Optional second battery available under the downtube (both front triangle cages remain available for water bottles)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 65 mm | 57 mm | 63 mm | 63 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model
Exploro RaceMax BOOST Dropbar is part of the 3t E Exploro Racemax model. 3T released 12 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the 3T Exploro RaceMax BOOST Dropbar 2023 has a starting price of 5499$. 3T Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar 2023 on the other hand is the most expensive at 12740$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel e-bikes
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5499$. If we compare this with the average Gravel e-bike cost we notice that the price is 50.99% higher.
Exploro RaceMax BOOST Dropbar components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Exploro RaceMax BOOST Dropbar e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Exploro RaceMax BOOST Dropbar comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
