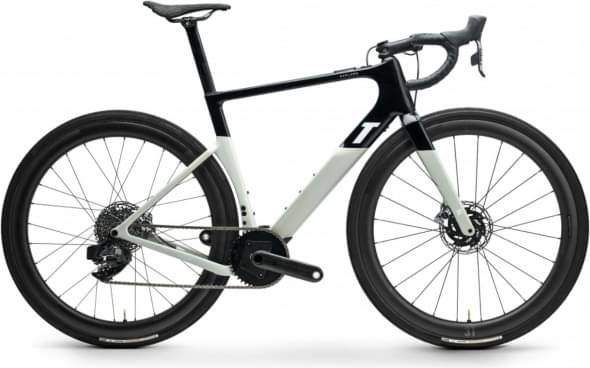

3T Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar 2023
2023 E-bike
Estimate price |
13,762$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery 250 Wh hidden battery included. Optional second battery available under the downtube (both front triangle cages remain available for water bottles) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro RaceMax BOOST Superlight
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
SRAM Red AXS 1X12
Front Derailleur
-
Shift Levers
SRAM Red AXS
Cassette
12-speed Red AXS 10-36
Crank
3T Torno LTD
Wheels
Rims
3T Discus 45 | 40 LTD
Brakes
Brakes
SRAM Red AXS Hydraulic Disc w/ 160mm rotor
Cockpit
Stem
Apto Stealth
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Saddle
SanMarco Shortfit Carbon 3D
Seatpost
New 3T Charlie Sqaero Team w/ Ritchey WCS Clamp
Motor & Battery
Motor
Mahle X20 motor 250Wh battery
Battery
250 Wh hidden battery included. Optional second battery available under the downtube (both front triangle cages remain available for water bottles)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 65 mm | 57 mm | 63 mm | 63 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model
Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar belongs to the 3t E Exploro Racemax model. 3T released 12 e-bikes variations of this model so far. Take a sneak peek at all 3t E Exploro Racemax e-bikes models from 2023, by clicking here.
Model range prices
3T Exploro RaceMax BOOST Dropbar 2023 is the most affordable e-bike of this model and has a price of 5499$. On the other hand, 3T Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar 2023, is the most expensive and costs 12740$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 12740$. Comparing the average cost of a Gravel e-bike to this one, you will see that Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar price is 249.81% higher.
Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar components
Fork material
Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
