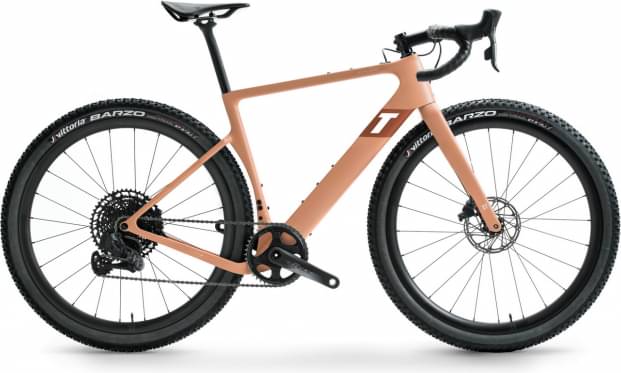

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XX1 Eagle AXS, Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro Ultra
Suspension Fork
Fango Ultra w/ compact crown
Drivetrain
Rear Derailleur
Eagle XX1 AXS Long Cage
Front Derailleur
-
Shift Levers
SRAM Force AXS eTap
Cassette
12-speed Eagle, 11-50T
Crank
SRAM Force AXS 42 T
Wheels
Rims
Fulcrum Rapid Red 900, 650b, tubeless ready (upgrade to 3T Discus 45|40, 45|32, Plus i28 possible)
Tires
Vittoria Barzo 27,5"x2.1"
Brakes
Brakes
SRAM Force AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth
Headset
Integrated headset, sealed cartridge 1-1/8"+1.5", 36°
Seat
Saddle
–
Seatpost
3T Carbon 27.2mm round seatpost - Zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Front Center | 597 mm | 606 mm | 602 mm | 607 mm | 616 mm | 636 mm |
| Rake | 62 mm | 62 mm | 53 mm | 54 mm | 54 mm | 55 mm |
| Trail | 63 mm | 57 mm | 58 mm | 50 mm | 47 mm | 46 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 353 mm | 364 mm | 375 mm | 383 mm | 390 mm | 401 mm |
| Top Tube Length | 512 mm | 529 mm | 547 mm | 561 mm | 576 mm | 595 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 520 mm | 549 mm | 576 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 122 mm | 142 mm | 158 mm | 175 mm | 196 mm | 225 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1005 mm | 1015 mm | 1011 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview
Exploro Ultra Eagle is part of the 3t Exploro Ultra model. 11 bikes variations carry this model name so far. Take a sneak peek at all 3t Exploro Ultra bikes models from 2023, by clicking here.
Model range prices
3T Exploro Ultra Rival 1X11 2023 is the most affordable bike of this model and has a price of 3699$. On the other hand, 3T EXPLORO ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION 2023, is the most expensive and costs 7300$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6199$. In conclusion, this bike price is 151.79% more expensive than the price of the average Gravel bike.
Exploro Ultra Eagle components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, 3T Exploro Ultra Eagle 2023, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
