Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Exploro ULTRA
Suspension Fork
Fango Ultra w/ compact crown
Drivetrain
Rear Derailleur
Campagnolo EKAR 1x13
Front Derailleur
–
Shift Levers
Campagnolo EKAR 1x13
Cassette
Campagnolo EKAR 13-speed, 9-42T
Crank
Campagnolo EKAR carbon, 38T chainring (to match 9T smallest cog) (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Fulcrum Rapid Red 900, 700c, tubeless ready (upgrade to 3T Discus 45|40, 45|32, Plus i28 possible)
Tires
–
Brakes
Brakes
Campagnolo EKAR hydraulic disc w/ 160mm Campagnolo rotor
Cockpit
Stem
3T Apto Stealth
Headset
Integrated headset, sealed cartridge 1-1/8"+1.5", 36°
Seat
Saddle
–
Seatpost
3T Carbon 27.2 round seatpost - Zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.61 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 597 mm | 608 mm | 609 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 56 mm | 54 mm | 54 mm | 60 mm |
| Trail | 71 mm | 69 mm | 61 mm | 57 mm | 53 mm | 47 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 353 mm | 364 mm | 375 mm | 383 mm | 390 mm | 395 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 520 mm | 549 mm | 576 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1005 mm | 1010 mm | 1014 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model

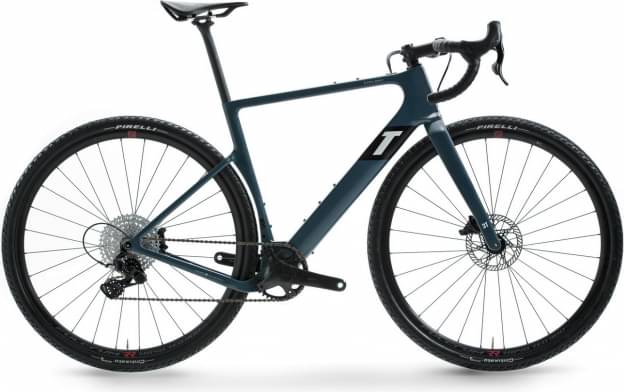

Exploro Ultra Ekar 700c belongs to the 3t Exploro Ultra model. 3T released 11 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the 3T Exploro Ultra Rival 1X11 2023 has a starting price of 3699$. 3T EXPLORO ULTRA FORCE D2/EAGLE AXS 1X12 CRANKBROTHERS EDITION 2023 on the other hand is the most expensive at 7300$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 5699$. Comparing this to the average Gravel bike price, we see that the price is 131.48% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, 3T Exploro Ultra Ekar 700c 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Exploro Ultra Ekar 700c comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
