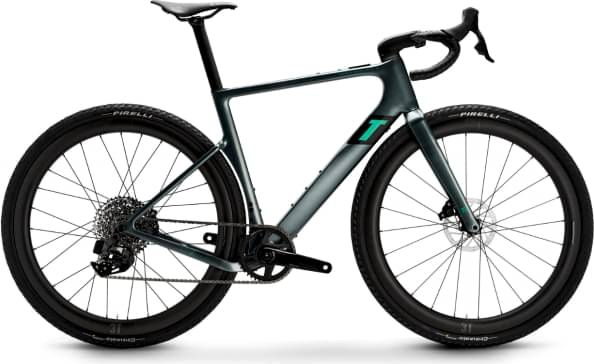

3T RACEMAX BOOST ITALIA RIVAL XPLR AXS ARDESIA 2023
2023 E-bike
Estimate price |
10,067$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX250 (236Wh) battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RaceMax Boost Italia Integrale
Suspension Fork
3T Fango RaceMax Integrale w/ compact crown
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR Max 44T
Shift Levers
SRAM Rival AXS
Cassette
12-speed SRAM Rival AXS XPLR 10-44T
Crank
SRAM Rival AXS Wide, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
3T Discus 45 | 40 LTD for Mahle X20 system
Tires
Pirelli Cinturato Gravel M 700x40
Brakes
Brakes
SRAM Rival AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
More integrale (51: 80mm, 54: 90mm, 56: 100mm, 58: 110mm)
Handlebar
3T Aeroghiaia Integrale LTD ( 51: 40cm - 54&56: 42cm - 58: 44cm)
Headset
3T MinMax Integrale IS42/31.8 + IS47/33
Seat
Saddle
San Marco Shortfit
Seatpost
3T RaceMax Italia Integrale seatpost for Ritchey clamp
Motor & Battery
Motor
Mahle X20 System
Battery
Mahle iX250 (236Wh) battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 65 mm | 57 mm | 63 mm | 63 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview
RACEMAX BOOST ITALIA RIVAL XPLR AXS ARDESIA is a 3t E Racemax model. 3T released 8 e-bikes variations of this model so far. Take a sneak peek at all 3t E Racemax e-bikes models from 2023, by clicking here.
Model range prices
3T RACEMAX BOOST Force D1 AXS 1X12 650b 2023 is the cheapest e-bike model and costs 6196$. 3T RaceMax Boost LTD X Automobili Lamborghini 2023 is the most expensive one and costs 17699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel e-bikes average price
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, 3T RACEMAX BOOST ITALIA RIVAL XPLR AXS ARDESIA price was 9294$. Comparing the average cost of a Gravel e-bike to this one, you will see that RACEMAX BOOST ITALIA RIVAL XPLR AXS ARDESIA price is 155.19% more expensive.
RACEMAX BOOST ITALIA RIVAL XPLR AXS ARDESIA components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on RACEMAX BOOST ITALIA RIVAL XPLR AXS ARDESIA are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. 3T RACEMAX BOOST ITALIA RIVAL XPLR AXS ARDESIA is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
