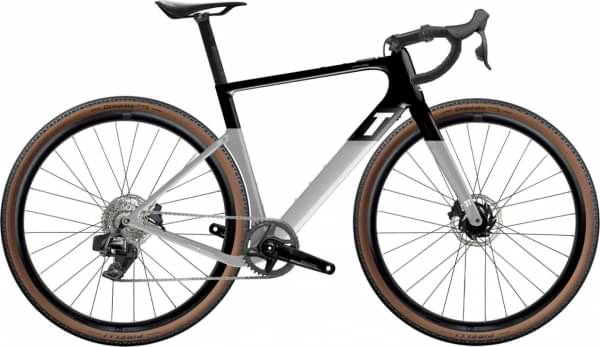

3T RACEMAX BOOST RIVAL XPLR 1X12 650b 2023
2023 E-bike
Estimate price |
6,711$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T Exploro RaceMax BOOST
Suspension Fork
3T Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR Max 44T
Front Derailleur
–
Shift Levers
SRAM Rival AXS
Cassette
12-speed SRAM Rival AXS XPLR 10-44T
Crank
SRAM Rival AXS Wide, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Rodi Alloy 650b
Tires
Pirelli Cinturato Gravel M 650b 50mm
Brakes
Brakes
SRAM Rival Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Handlebar
3T Superergo PRO (XXS: 38cm - 51: 40cm - 54&56: 42cm - 58&61: 44cm)
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
3T Exploro seatpost for Ritchey clamp
Motor & Battery
Motor
Mahle X20 motor
Battery
Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 60 mm | 61 mm | 59 mm | 50 mm | 57 mm | 57 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model
RACEMAX BOOST RIVAL XPLR 1X12 650b completes the 3t E Racemax model. There are 5 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the 3T RACEMAX BOOST Force D1 AXS 1X12 650b 2023 has a starting price of 6213$. 3T RaceMax Boost LTD X Automobili Lamborghini 2023 on the other hand is the most expensive at 17699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel e-bikes
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 6213$. Doing a quick comparison, we notice that RACEMAX BOOST RIVAL XPLR 1X12 650b price is 70.59% more expensive than the average cost of a Gravel e-bike.
RACEMAX BOOST RIVAL XPLR 1X12 650b components
Fork material
RACEMAX BOOST RIVAL XPLR 1X12 650b has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the RACEMAX BOOST RIVAL XPLR 1X12 650b e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. 3T RACEMAX BOOST RIVAL XPLR 1X12 650b has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
