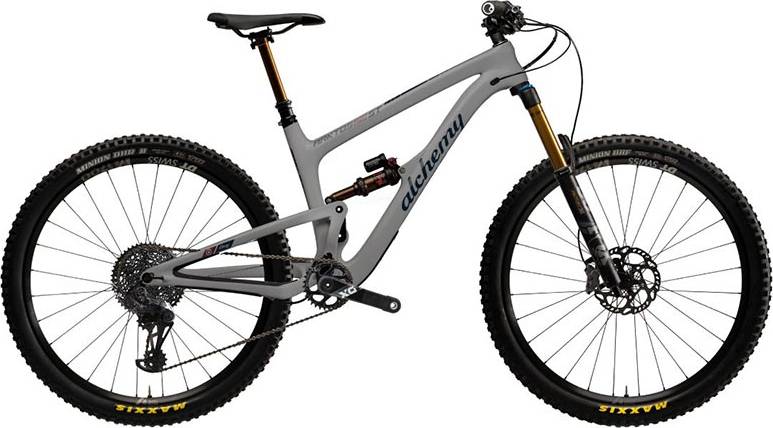

Alchemy Arktos 29 ST — NX Eagle 2019
2019 Mountain
Estimate price |
4,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Pike Select
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Select RC 140mm 15mm
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0, 10×22 Hardware
Drivetrain
Rear Derailleur
SRAM SL NX Eagle
Shift Levers
SRAM SL NX Eagle Trigger
Cassette
SRAM NX Eagle 11-50T
Crank
SRAM Descendant 175mm 32T Eagle SB
Bottom Bracket
SRAM DUB BSA MTB73 SB+
Chain
SRAM NX Eagle
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.3 DC EXO TR, Maxxis Minion DHR 29×2.3 DC EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
Race Face Aeffect R 50mm
Handlebar
Race Face Aeffect R 35×780 20mm Rise
Grips
DMR Deathgrip Thin
Seat
Saddle
WTB Volt 142mm
Seatpost
X-Fusion Manic 150mm 31.6mm with Trigger Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 722 mm | 742 mm | 766 mm | 803 mm |
| Rake | 40 mm | 31 mm | 41 mm | 41 mm |
| Trail | 122 mm | 132 mm | 121 mm | 121 mm |
| Stack | 612 mm | 621 mm | 635 mm | 648 mm |
| Reach | 414 mm | 440 mm | 447 mm | 478 mm |
| Top Tube Length | 571 mm | 601 mm | 620 mm | 656 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1148 mm | 1168 mm | 1192 mm | 1229 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm | 41 mm |
| Standover Height | 781 mm | 783 mm | 791 mm | 819 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
Model Overview
Arktos 29 ST — NX Eagle belongs to the Alchemy Arktos model. Alchemy released 77 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Alchemy Arktos 29 ST — NX Eagle 2019 is the most economical model, with a starting price of 4899$. Alchemy Arktos NINE7FIVE — XTR 2019 on the other hand costs 9499$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4899$. Comparing the average cost of a Trail bike to this one, you will see that Arktos 29 ST — NX Eagle price is 77.37% more expensive.
Arktos 29 ST — NX Eagle components
Fork
The RockShox Pike Select is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0 rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Arktos 29 ST — NX Eagle model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Arktos 29 ST — NX Eagle comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Alchemy model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
