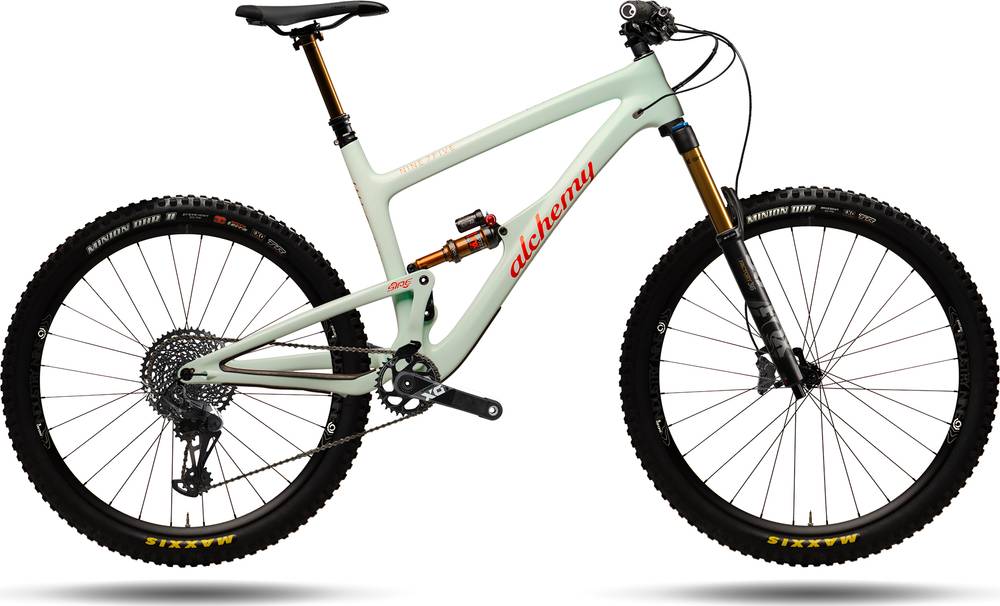

Alchemy Arktos NINE7FIVE — XTR 2019
2019 Mountain
Estimate price |
9,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 Factory Kashima 160mm Boost 15mm
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
Shimano XTR M9120, XTR SGS, 12-SPEED
Shift Levers
Shimano XTR M9100 12 Speed
Cassette
Shimano XTR M9100 12-Speed 11-51t
Crank
Shimano XTR FC-M9100-1 32 T 175mm
Bottom Bracket
Shimano XTR Threaded
Chain
Shimano XTR 12 Speed
Wheels
Rims
ENVE M630 29? 15/110mm
Tires
Maxxis Minion DHF 29×2.5 DC EXO TR, Maxxis Minion DHR 27.5×2.4 DC EXO TR
Brakes
Brakes
Shimano XTR M9120 Trail Hydraulic
Disk Rotors
Shimano XTR M900 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
ENVE M6 55mm 31.8mm
Handlebar
ENVE M6 780mm 7.5 Degree 31.8mm
Grips
Ergon GA 20 Black
Seat
Saddle
WTB Volt Race 142×165
Seatpost
Fox Factory 125mm Transfer w/ Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.44 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 723 mm | 741 mm | 770 mm | 807 mm |
| Rake | 27 mm | 16 mm | 29 mm | 29 mm |
| Trail | 145 mm | 157 mm | 143 mm | 143 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 410 mm | 435 mm | 443 mm | 474 mm |
| Top Tube Length | 572 mm | 602 mm | 622 mm | 657 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1153 mm | 1171 mm | 1200 mm | 1237 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
Model Overview
Arktos NINE7FIVE — XTR is part of the Alchemy Arktos model. Alchemy launched 77 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Alchemy Arktos 29 ST — NX Eagle 2019 has a starting price of 4899$. Alchemy Arktos NINE7FIVE — XTR 2019 on the other hand is the most expensive at 9499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 9499$. In conclusion, this bike price is 243.92% higher than the price of the average Trail bike.
Arktos NINE7FIVE — XTR components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Arktos NINE7FIVE — XTR has a rear shock with a travel of 140mm. The model Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25 is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Arktos NINE7FIVE — XTR 2019 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Arktos NINE7FIVE — XTR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Arktos NINE7FIVE — XTR comes in 4 sizes, that range from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Alchemy Arktos NINE7FIVE — XTR includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
